Plastic ware & Others

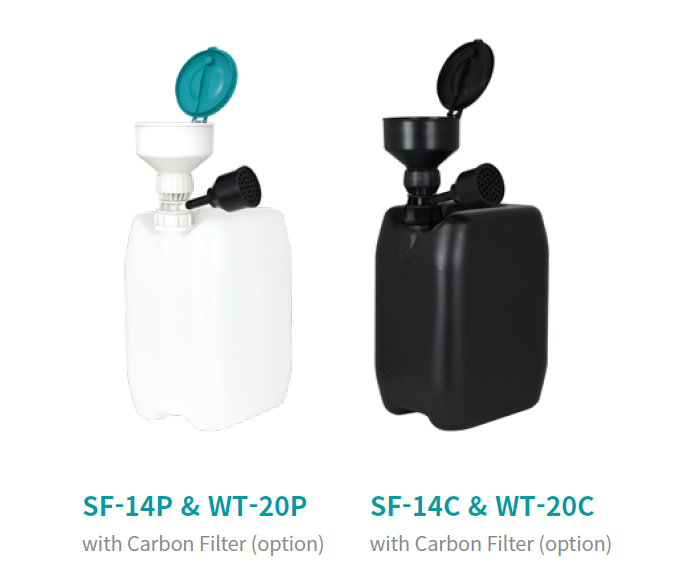

Safety Waste Disposal System

Easy to collect and store various chemicals and
waste liquids generated in the lab.

Model Name : SF-14C/P, WT-20C/P

BROCHUREURL COPYInquiry Form

Safe device to prevent leakage

  • -Safety funnel dedicated to waste fluid treatment, which is convenient for handling due to wide funnel inlet opening.
  • -Use of burability and chemical resistance PP (polypropylene) better than other HDPE materials.
  • -80 % level bar is standard to make it easier to know when to replace the disposal fluid level in container, and can be replaced 70% level bar as required by the experimenter.

Classified emission according to the type of chemical properties

  • -Prevention Different colors of the safety funnel lid depending on the chemical properties to clearly distinguish when treating waste liquid treatment.
  • -Safety labels can be attached to the top of the safety funnel to prevent the mixing of waste fluids with different properties.

Pressure and gas treatment by reaction

  • -Hinge-type lid minimizes the discharge of vapors from the waste solution into the lab.
  • -Removes bad odors and harmful gas. (carbon filter can be replaced easily without remove existing attachment without the use of any tools) (option)

Anti-static protection

  • -Anti-Static protection via special plastic material and ground cable. (SF model)
  • -Ease of ground wire cleanup when configured with a flammable material storage cabinets. (sold separately)


Model SF-14C SF-14P /14Y /14R /14B WT-20C WT-20P
Description Anti-static
  safety funnel for collection
  of waste liquid		 General use
  safety funnel for collection
  of waste liquid		 Anti-static liquid waste
  container		 General-purpose liquid
  waste container
Dimension
    (W x D x H, mm / inch)		 160 x 142 x 270
    / 6.3 x 5.6 x 10.6		 160 x 142 x 270
    / 6.3 x 5.6 x 10.6		 220 x 300 x 380
    / 8.7 x 11.8 x 15.0		 220 x 300 x 380
    / 8.7 x 11.8 x 15.0
Inlet (ø, mm / inch) 135 / 5.3 135 / 5.3 45 / 1.8 45 / 1.8
Lid size (ø, mm / inch) 142 / 5.6 142 / 5.6 78 / 7.1 78 / 7.1
Volume (L / cu ft) 1 / 0.04 1 / 0.04 22 / 0.78 22 / 0.78
Cat. No. AAAM6001 AAAM6002 : SF-14P (Persian green)
AAAM6003 : SF-14Y (Yellow)
AAAM6004 : SF-14R (Red)
AAAM6005 : SF-14B (Blue) 		AAAM6011 AAAM6012




  • Description Dimension (ø x H, mm / inch) Cat. No.

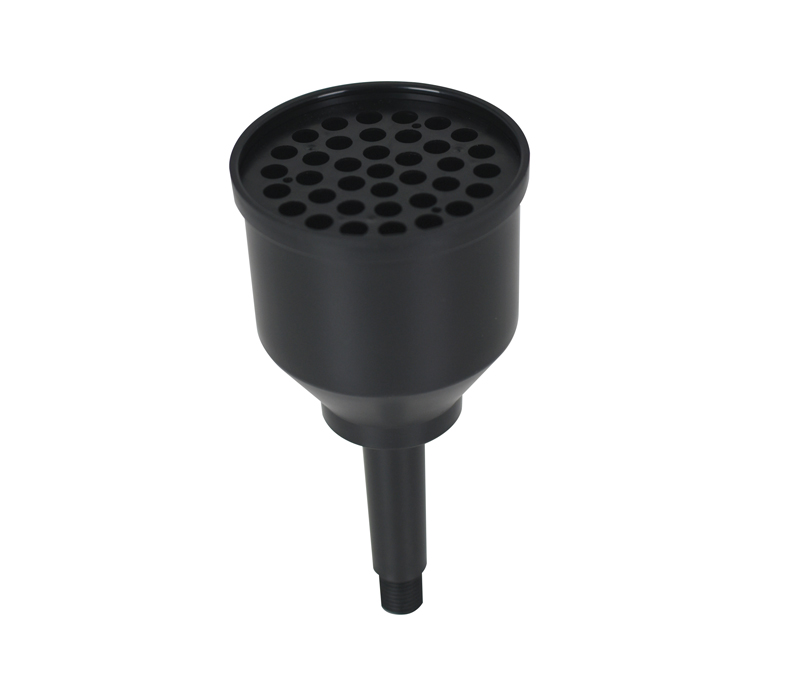

    Carbon Filter 76 x 150 / 3.0 x 5.9 AAAM6051
    Earth Bonding Plug 52 x 70 / 2.0 x 2.8 AAAF35453

    ※ In case of ground can not be connected with distribution panelboard, please use grounded plug. (option)
