Plastic ware & Others

Ultrasonic Cleaners

Aggressive cleaning ability in a variety of output modes!

Industrial B.L.T type ultrasonic transducer (Bolt Clamped Langevin Type Transducer) generates high-frequency sound waves that provide maximum cleaning power.

Model Name : UCP-02/10/20, UCS-02/10/20

BROCHUREURL COPYInquiry Form

UCP-10

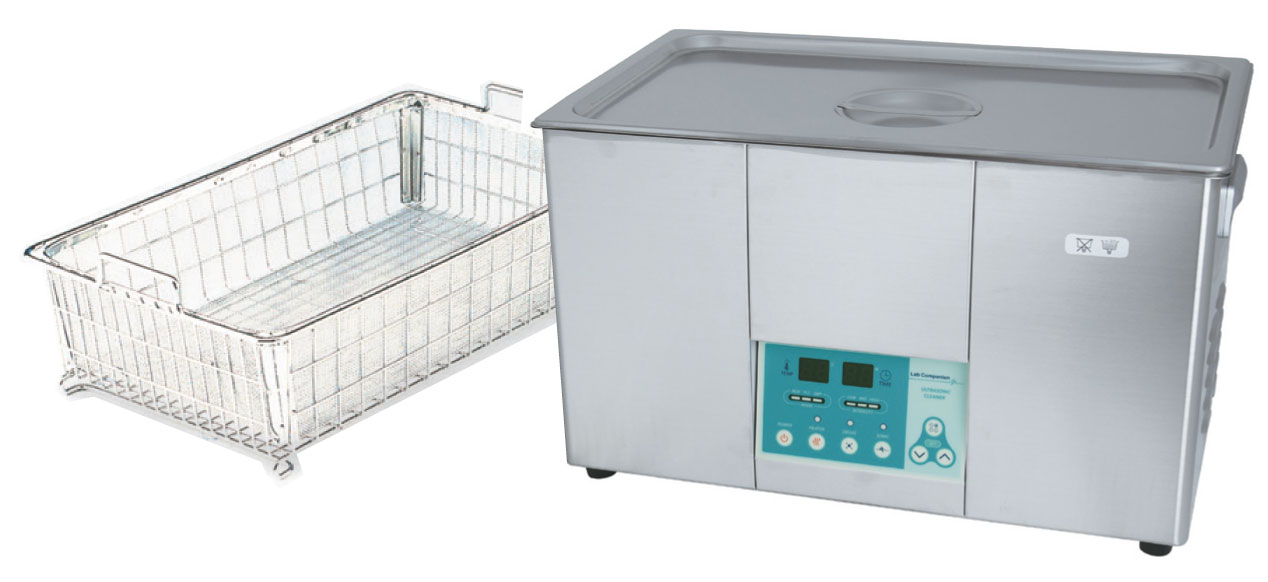

UCS-20


UCP models (ABS, Membrane key pad, and SUS tank)


  • Durable / flame resistance ABS material used and cover with 304 stainless steel tanks.
  • Over-temperature protection with alarm. (except for UCP-02)
  • Digital LED display using splash-proof keypads: timer (1 to 99 min, Max 4 hour operating), temperature monitor. (except for UCP-02)
  • High-frequency 40 kHz sound waves provide greater cleaning power and increased reliability.
  • Multiple output mode (Normal/Pulse/Sweep) with power selection (Low/Middle/ High). (except for UCP-02)
  • Before cleaning, dissolved gas removed by degas function. (except for UCP-02)
  • Drain valve, basket, cover as standard offer. (except for UCP-02)

UCS models (SUS external and tank)


  • External and tank parts are made of durable 304 stainless steel.
  • Over-temperature protection with alarm.
  • Digital LED display using splash-proof keypads: timer (1 to 99 min, Max 4 hour operating), temperature monitor.
  • High-frequency 40 kHz sound waves provide greater cleaning power and increased reliability.
  • Multiple output mode (Normal/Pulse/Sweep) with power selection (Low/Middle/ High).
  • Drain valve, basket, cover as standard offer.

UCP models (ABS, Membrane key pad, and SUS tank)


Model UCP - 02 UCP - 10 UCP - 20
Bath volume (L / cu ft) 2 / 0.07 10 / 0.35 20 / 0.70
Temperature range (℃ / ℉) - Amb. to 70 / Amb. to 158
Ultrasonic power (W) 100 300 500
Dimension Bath interior (W×L, D) (mm / inch) 142×132, 104 / 5.6×5.2, 4.1 295×240, 160 / 11.6×9.4, 6.3 500×290, 160 / 19.7×11.4, 6.3
Exterior (W×L×H) (mm / inch) 290×210×200 / 11.4×8.4×7.9 490×368×297 / 19.3×14.5×11.7 721×451×297 / 28.4×17.8×11.7
Net weight (kg / lbs) 2 / 4.4 11 / 24.3 17 / 37.5
Electrical requirements (230V, 50 / 60Hz) 0.6A 1.3A 2.2A
Cat. No. BDH532011K BDH532012K BDH532013K
Electrical requirements (120V, 60Hz) 1A 1.7A 4.2A
Cat. No. BDH532011U BDH532012U BDH532013U

UCS models (SUS external and tank)


Model UCS-05 UCS-10 UCS-20
Bath volume (L / cu ft) 5.7 / 0.20 10 / 0.35 20 / 0.70
Temperature range (℃ / ℉) Amb. to 70 / Amb. to 158
Ultrasonic power (W) 200 300 500
Dimension Bath interior (W×L, D) (mm / inch) 295×160, 160 / 11.6×6.3, 6.3 295×240, 160 / 11.6×9.4, 6.3 500×290, 160 / 19.7×11.4, 6.3
Exterior (W×L×H) (mm / inch) 325×230×320 / 12.8×9.1×12.6 325×330×320 / 12.8×12.9×12.6 530×330×297 / 20.9×12.9×11.7
Net weight (kg / lbs) 8 / 17.6 11 / 24.3 15 / 33.1
Electrical requirements (230V, 50 / 60Hz) 0.9A 1.3A 2.2A
Cat. No. BDH532031K BDH532032K BDH532033K
Electrical requirements (120V, 50 / 60Hz) 1.7A 2.5A 4.2A
Cat. No. BDH532031U BDH532032U BDH532033U
