Shaker

Open-air Shakers (General)

Powerful driving system with a durable body structure increases shaking capacity.

with optional accessories

Model Name : OS-4000/7100/7200

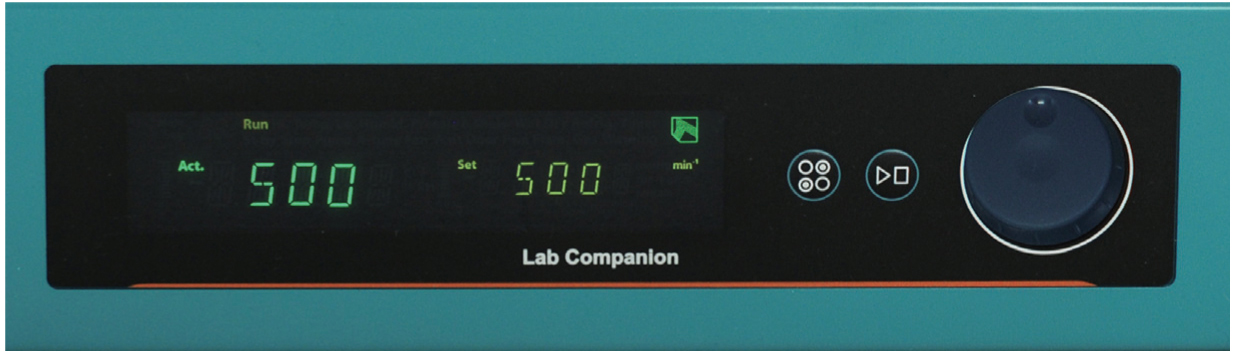

  • Control panel

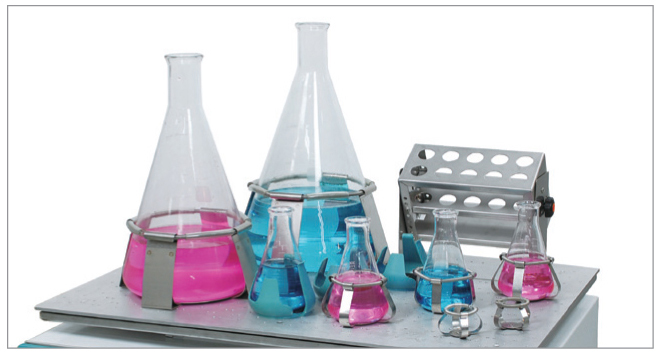

  • Various accessories installable

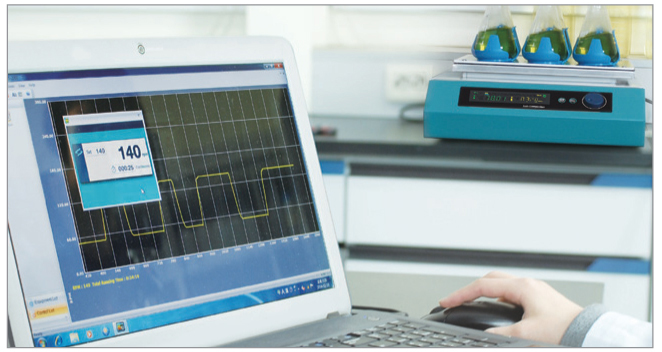

  • Computer interface


Performance

  • Microprocessor PID control.
    - Intelligent speed controller enables reproducible results.
  • Shaking speed calibration enables matching the displayed rpm to the reference point.
  • Competitive high shaking speed up to 500 rpm.
  • Orbital shaking motion in various diameter.
    - 19.1mm or 25.4mm for OS-4000
    - 25.4mm for OS-7100
    - 50.8mm for OS-7200
  • Wide speed range even with heavy workload.
    - Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation. (for OS-7100/7200)
    - Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion. (for OS-4000)
  • Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
    - Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
  • Pleasant test environment by the smooth acceleration and deceleration control.
    - Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
  • Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

  • User friendly control panel.
    - Lab Companion’s unique VFD-bright, clear, easy to read.
    - Durable membrane touch switch and control knob.
  • Easy-set digital timer. (1 min. to 999 hr. 59 min.)
  • Repetitive task can be easily performed as the platform stops where it starts.
    - Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
  • Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.
  • Built-in RS-232 port and USB port for external control and data collection.
  • Variety of accessories are available to meet application demands.

Safety

  • Automatic run after power interruption.
  • Shaking speed deviation alarm.
  • Over-current protection, Stalled platform check. (stalled platform check is for OS-4000)
  • CSA only for OS-4000.
Model OS-4000 OS-7100 OS-7200
Control system PID feedback control
Display VFD
Shaking system Motion type Orbital
Amplitude size (mm / inch, dia.) 19.1 / 0.75 (standard) 25.4 / 1 (adjustable) 25.4 / 1 50.8 / 2
Speed range 2) (rpm) 20 to 500 20 to 450 30 to 500 30 to 300
Accuracy ±1% of set speed (≥100rpm) / ±1 (≤100rpm)
Timer 1 min. to 999 hr. 59 min.
Max. load (kg / Ibs)

14 / 30.9 at 500 rpm

21 / 46.3 at 400 rpm

10 / 22.0 at 450 rpm

21 / 46.3 at 300 rpm

10 / 22.0 at 500 rpm

25 / 55.1 at 400 rpm

23 / 50.7 at 300 rpm

35 / 77.2 at 200 rpm

Dimension Platform (W×D) (mm / inch) 450×450 / 17.7×17.7 755×520 / 29.6×20.5
Body 1) (W×D×H) (mm/inch) 510x632x156 / 20.1x24.9x6.1 755x627x151 / 29.7x24.7x5.9
Net weight (Kg / lbs) 43 / 94.8 117 / 257.9
Electrical requirements (230V, 50 / 60Hz) 0.3A 0.4A
Cat. No. AAH3D1315K AAH3D1415K AAH3D1515K
Electrical requirements (120V, 50 / 60Hz) 0.6A 0.8A
Cat. No. AAH3D1365U AAH3D1465U AAH3D1565U

※ Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).
1) Main body dimension without accessories.
2) In case of operating at high speed (350 to 500 rpm), it is recommended to be fixed on the working surface.
※ CSA for OS-4000.

for Open-air Shakers (OS models)


Universal platforms (OS models)

Universal platform (CMS-350)

Test tube racks

Flask clamps (stainless steel)

Flask clamps (plastic)

Funnel clamps

Microplate holders

Description OS-2000 OS-3000
Cat.No. Universal platform AAA3A501-V2 AAA23501-V3
- Flask clamps(Stainless steel) Erlenmeyer flask size Max. mountable flask clamps
AAA23550 for 50 ml 20 36
AAA23551 for 100 ml 16 28
AAA23552 for 250 ml 8 14
AAA23556 for 300 ml 8 14
AAA23553 for 500 ml 6 10
AAA23554 for 1L 3 6
AAA23555 for 2L - 4
AAA23557 for 2.8L - 3
AAA23558 for 4L - 1
AAA23559 for 6L - 1
- Flask clamps(plastic) Erlenmeyer flask size Max. mountable flask clamps
AAA30570 for 50 ml 20 36
AAA30571 for 100 ~ 125 ml 12 19
AAA30572 for 200 ml 8 13
AAA30573 for 250 ml 8 13
AAA30574 for 300 ml 6 12
AAA30575 for 500 ml 6 9
AAA30576 for 1L 3 5
AAA30577 for 2L - 4
- Funnel clamps Separating funnel size Max. mountable funnel clamps
AAA23562 for 250 ml 4 4
AAA23563 for 500 ml 3 3
AAA23564 for 1L 3 3
AAA23565 for 2L - 2
- Test Tube Racks 1) Test tube size Mountable capacity of racks
AAA23581 for 86 test tubes, ø8mm 2 2
AAA23582 for 86 test tubes, ø10mm
AAA23583 for 58 test tubes, ø12mm
AAA23584 for 58 test tubes, ø14mm
AAA23585 for 32 test tubes, Ø17mm
AAA23586 for 19 test tubes, Ø25mm
AAA23587 for 10 test tubes, Ø30mm
AAA23594 for 10 test tubes, Ø35mm
AAA23593 for 4 test tubes, Ø50mm
- Microplate holders Max. mountable microplate holders
AAA23654 Single 6 8
AAA23651 Tower 4 6
AAA23652 Flat A (large) - -
AAA23653 Flat B (small) 1 2

1) No declination.
※ Above accessories need to be mounted on a universal platform which is sold separately.


for Open-air Shakers (OS models)


Dedicated platform

Spring wire racks

Rubber mats

Universal attachment

Lab sticker (200x200, mm)

Stage rack (OS models)

Rubber mat (CMS-350)

Dual stacking tray

Large tray

Description OS-3000
Dedicated platform Universal platform+250ml flask clamps AAA23611-V1
No. of flask clamps 14
Universal platform+500ml flask clamps AAA23613-V1
No. of flask clamps 10

※ A dedicated platform is sold with setting each max. mountable amount of flask clamps on.


Description OS-2000 OS-3000
Spring wire racks - AAA3A521 AAA31521-V1
Erlenmeyer flask size Max. inserting flasks
for 50 ml 15 16
for 100 ml 9 9
for 250 ml 4 4
for 300 ml 4 4
for 500 ml 4 4
for 1L 2 2
for 2L - 1
for 2.8L - 1
Rubber mat AAA3A531-V1 AAA31531
Universal attachments AAA3A511-V1 AAA23511-V1
Lab sticker AAA30551
Dimpled mat AAA3A532 -
Microplate tray Dual stacking AAA3A541 -
Large tray AAA3A542 -
Stage racks 4 stage rack - AAA31541-V1
3 stage rack - -
