Hotplate Stirrers & Stirrer

Heating Block (for Round Flask and Vial)

A safe solution to replace oil bath and heating mantle
when heating the contents over 100°C

Model Name : RBP/RBI/VBP + VBI

BROCHUREURL COPYInquiry Form

Using with Hotplate

  • The heating block is mounted on a hotplate or hotplate magnetic stirrer to heat safely the contents of the 25ml - 2000ml round flask and vial.

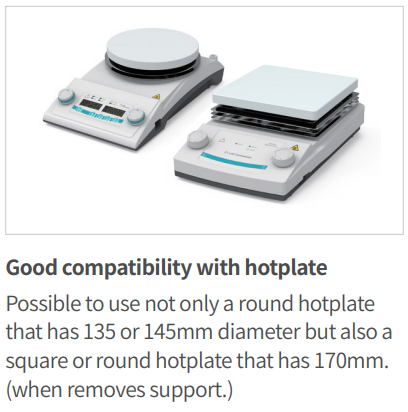

  • Excellent compatibility with various brands of hotplates.
    (flask dia. 135/140, Vial-135/180/150 x 150/180 x 180 (mm)

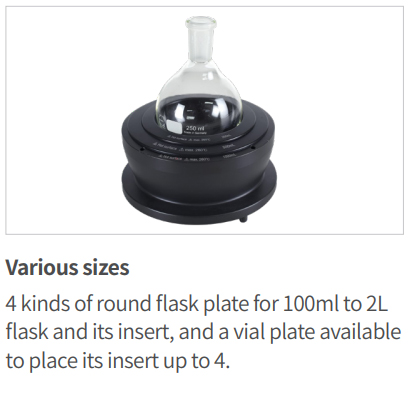

  • Combination of inserts (optional) allows the use of flasks of various capacities.

Excellent safety standards

  • No risk of burns or noxious fumes due to heated oil that may occur when using an oil bath.
  • Hot spots do not occur even when heated up to 300°C, resulting in excellent temperature accuracy and prevention of damage to glassware.

Use Convenience Features

  • Economical and eco-friendly by eliminating the need to purchase and dispose of oil separately.
  • Since oil is not used, it is easy to clean glassware and the product.

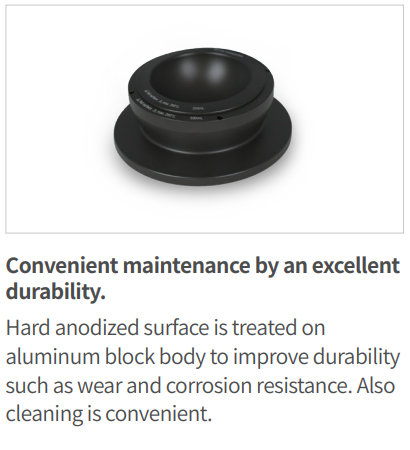

  • Hard anodized surface is treated on aluminum block body, so there is no concern regarding discoloration and the durability is excellent.

  • Highly compatible with top plates of various heaters.

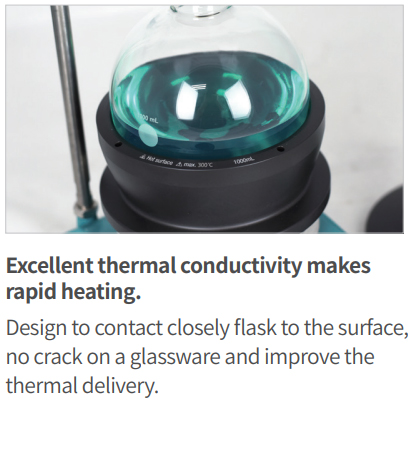

  • Good contacting to flask surface with excellent thermal conductivity.

  • Various inserts (1 dram, 2 dram, 4 dram, 20ml, 30ml, 40ml) with vials of various capacities applicable.

Round Flask Heating Block Vial Heating Block

Plate

Insert

Plate

Insert

Model Volume

Model

Volume

 Model Volume Model Volume
RBP-100 100 ml

RBI-25

25 ml

 VBP

190 x 190 x 20 mm
(Insert max. Four Mounted

 VBI-1D 4 ml (1 dram) (Ф 15 x 17 mm), 16 holes

RBI-50

50 ml

 VBI-2D 8 ml (2 dram) (Ф 17 x 23 mm), 16 holes

RBP-500

 500 ml

RBI-100

100 ml

 VBI-4D 15 ml (4 dram) (Ф 21 x 30 mm), 16 holes

RBI-250

250 ml

 VBI-20S 20 ml (Ф 28 x 22 mm), 4 holes
RBP-1000 1000 ml

RBI-500

500 ml

 VBI-30S 30 ml (Ф 28 x 32 mm), 4 holes

RBP-2000

 2000 ml RBI-1000

1000 ml

 VBI-40S 40 ml (Ф 28 x 42 mm), 4 holes
