Shaker

Incubated Shakers (Stackable)

with optional accessories.

Model Name : ISS-7100/7100R/7200/7200R

BROCHURE URL COPY Inquiry Form

Advantages of Stackable Model

Large shaking capacity chamber allows user to freely organize different size of samples.
- 198L chamber can accommodate six of 4L flasks and also thirty nine of 250ml flasks. You can make the capacity triple, if you stack three units.
Maximize your space with our triple stackable incubated shaker.
- Highly recommended for users who want to maximize limited space. Have three units in your lab while taking up minimal space. In addition, high rpm is still guaranteed even when you stack up 3 units.

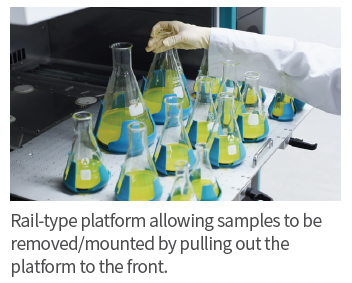

Lift up opening door and slide out platform enables easy sample handling.
- Door is opened upward and stayed open for hands-free handling. Slide type universal platform let you access to all samples, even ones placed at the back.
Optional stand is available and highly recommended for comfort use. Setting your incubated shaker at your height let you feel totally relaxed when you use it anytime.(optional)
Performance
- Temperature range:
  - Ambient +10°C to 80°C for ISS-7100 / 7200.
  - Ambient -20°C (Min. 4) to 80°C for ISS-7100R / 7200R.
- Competitive high shaking speed up to 400 rpm. (Stackable up to 250rpm)
  - From 30 to 400 rpm (stackable : 30 to 250) for ISS-7100(R)
  - From 30 to 300 rpm (stackable : 30 to 200) for ISS-7200(R)
- Orbital shaking motion in 19.1mm diameter.
  - 25.4 mm for ISS-7100(R)
  - 50.8 mm for ISS-7200(R)
- Microprocessor PID control.
- Three point temperature calibration / Automatic tuning.
- Wide speed range even with heavy workload.
  - Ideal DD(Direct Drive) brushless motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
- Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
  - Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
- Pleasant test environment by the smooth acceleration and deceleration control.
  - Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
- High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
- Air-tight silicone door seal to provide excellent temperature uniformity.

Convenience

Intuitive touch screen LCD controller with easy icons and logical menus.
Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
Wide sample monitoring.
- Clear observation of samples without affecting inner chamber’s environment thanks to the transparent viewing window with bright LED lamps.
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Two adjustable-height shelves provided allow static incubation or refrigeration, which increase storage capacity.
Built-in electrical outlet with a safety cover inside the chamber.
Corrosion resistance stainless steel interior.
Easy-access drain system with a quick disconnect valve offers great convenience to clean up of spills.
Built-in RS-232 port and USB port for external control and data collection.
The unit comes with retractable foot caster, beneficial for easy mobility during installation or relocation.
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

Automatic run after power interruption.
Temperature and shaking speed deviation alarm.
Over-current protection, Stalled platform check.
Triple independent temperature monitor system.
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
Environment-friendly CFC-free refrigerant. (for ISS-7100R / 7200R)

Model		ISS-7100		ISS-7100R		ISS-7200		ISS-7200R
Temperature	Range (℃ / ℉)	Amb. +10 to 80 / Amb. +18 to 176		Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176		Amb. +10 to 80 /Amb. +18 to 176		Amb. -20 (Min. 4) to 80 /Amb. -36 (Min. 7.2) to 176
	Fluctuation at 37℃ in flask (±℃ / ℉)	0.1 / 0.18
	Variation at 37℃ in flask (±℃ / ℉)	0.5 / 0.90
	Refrigerator (Hp)	-		1/6Hp		-		1/6Hp
Shaking system	Motion type	Orbital
	Amplitude size (mm / inch, dia.)	25.4 / 1				50.8 / 2
	Speed range (rpm)	30 to 400 (stackable²⁾ : 30 to 250)				30 to 300 (stackable²) : 30 to 200)
	Accuracy	±1% of set speed (>100rpm) / ±1 (≤100rpm)
	Timer	1 min. to 999 hr 59 min.
	Max. Load (kg / Ibs)	20 / 44.1 at 400 rpm 15 / 33.1 at 250 rpm (stacked) 20 / 44.1 at 200 rpm (stacked)				20 / 44.1 at 300 rpm 15 / 33.4 at 200 rpm (stacked) 20 / 44.1 at 150 rpm (stacked)
Dimension	Volume (L / cu ft)	198 /7.1
	Platform (W×D, mm / inch)	755×520 / 29.7x20.5
	Interior (W×D×H, mm / inch)	809×624×393 / 31.9×24.6×15.5
	Exterior¹⁾ (W×D×H, mm / inch)	1310×996×755/ 51.6x39.2x29.7
	Net weight (kg / Ibs)	365 / 804.7		375 / 826.7		365 / 804.7		375 / 826.7
Electrical requirements (230V)		60Hz, 3.7A	50Hz, 3.7A	60Hz, 5.6A	50Hz, 5.6A	60Hz, 3.7A	50Hz, 3.7A	60Hz, 5.6A	50Hz, 5.6A
Cat. No.		AAH 238131K	AAH 238132K	AAH 238231K	AAH 238232K	AAH 239131K	AAH 239132K	AAH 23731K	AAH 23732K
Electrical requirements (120V)		60Hz, 7.1A		60Hz, 10A		60Hz, 7.1A		60Hz, 10A
Cat. No.		AAH238115U		AAH238215U		AAH239115U		AAH239215U

※ Above specifications can be changed without prior notice.
※Temp. change may occur during automatic defrost. (for ISS-3075R/4075R)

1) Main body dimension with retractable foot caster.

2) Stacked with stand or products.

for Incubated Shakers

Flask clamps
Plastic clamps (plastic)
Funnel clamps
Dedicated platforms

Universal platforms / Flask clamps / Funnel clamps

Universal platforms provide flexibility for mixing assortments of test tubes and glassware of varying sizes on a single platform. Various clamps for Erlenmeyer flasks and separatory funnels are available.

Description
Cat. No.	Universal platform
-	Flask clamps(Stainless steel)	Erlenmeyer flask size
AAA23550		for 50 mL
AAA23551		for 100 mL
AAA23552		for 250 mL
AAA23556		for 300 mL
AAA23553		for 500 mL
AAA23554		for 1L
AAA23555		for 2L
AAA23557		for 2.8L
AAA23558		for 4L
AAA23559		for 6L
-	Flask clamps(plastic)	Erlenmeyer flask size
AAA30570		for 50 mL
AAA30571		for 100 ~ 125 mL
AAA30572		for 200 mL
AAA30573		for 250 mL
AAA30574		for 300 mL
AAA30575		for 500 mL
AAA30576		for 1L
AAA30577		for 2L
-	Funnel clamps	separatory funnel size
AAA23562		for 250 mL
AAA23563		for 500 mL
AAA23564		for 1L
AAA23565		for 2L

※ Above accessories need to be mounted on a universal platform which is sold separately.

Dedicated platforms

When using a single flask size only, the dedicated platforms with pre-installed clamps provide maximum capacity. 250mL and 500mL clamps arestandard but other sizes can be available.

Description	ISS-7100(R) ISS-7200(R)
Universal platform &250mL flask clamps	AAA23637
No. of flask clamps	39
Universal platform &500mL flask clamps	AAA23636
No. of flask clamps	28

* A dedicated platform is sold with setting each max. mountable amount of flask clamps on.

Test tube racks
Microplate holders
Rubber mats

Test tube racks

Easy to release and mount racks made of durable stainless steel with adjustable angle and tube height support. Test tube racks are used with an optional universal platform.

Description		ISS-7100(R) ISS-7200(R)
Cat.No.	Universal platform	AAA23503-V4
-	Test tube size	Mountable capacity of rack*
AAA23581	for 86 test tubes, Ø8mm / Ø0.3˝	7
AAA23582	for 86 test tubes, Ø10mm / Ø0.4˝
AAA23583	for 58 test tubes, Ø12mm / Ø0.5˝
AAA23584	for 58 test tubes, Ø14mm / Ø0.6˝
AAA23585	for 32 test tubes, Ø17mm / Ø0.7
AAA23586	for 19 test tubes, Ø25mm / Ø1.0˝
AAA23587	for 10 test tubes, Ø30mm / Ø1.2˝
AAA23594	for 10 test tubes, Ø35mm / Ø1.4˝
AAA23593	for 4 test tubes, Ø50mm / Ø1.9˝

* No declination
※ We can manufacture other size of test tube racks to meet your specific requirements. Contact us for details.

Microplate holders

Available in three styles: tower type, flat type (small and large), and single type. Tower type holder is for 10 standard or deep well plates. Large flat holder is for 4 standard or deep well plates. Small flat holder is for 3 standard or deep well plates. Single type holder is for 1 standard or deep well plate. (standard well plates’ height: 14.7mm)

Description
Cat.No.	Universal platform
-	Microplate holder type
AAA23654	Single
AAA23651	Tower
AAA23652	Flat A(large)
AAA23653	Flat B(small)

* Microplate holders need to be mounted on an universal platform which is sold separately.

Rubber mats

Designed for low-speed applications, non-skid rubber mats allow quick addition or removal of flasks, plates or tubes.

Description	ISS-7100(R) ISS-7200(R)
Cat. No	AAA23535

Description

ISS-7100(R)

ISS-7200(R)

Cat. No

AAA23535

Spring wire racks
(two tier rack with flexible crossed spring)
Universal attachments
Lab sticker

Spring wire racks

Ideal for holding a wide variety of tubes, flasks, and other glassware. All components are made of stainless steel.

Description	ISS-7100(R) ISS-7200(R)
Cat. No.	AAA23526
-	Max. inserting flasks
for 50 mL	45
for 100 mL	28
for 250 mL	18
for 300 mL	18
for 500 mL	15
for 1L	10
for 2L	6
for 2.8L	4

Universal attachments (utility carriers)

Several adjustable clamping bars for quickly securing a variety of glassware or tubes on non-skid rubber mats. Suitable for flat-bottomed flasks of various sizes.

Description	ISS-7100(R) ISS-7200(R)
Cat. No.	AAA2351

Description

ISS-7100(R)

ISS-7200(R)

Cat. No.

AAA2351

Lab sticker

An alternative method for securing vessels to a shaker platform. Ideal for containers such as bottles and dishes that cannot be held on the universal platform with conventional flask clamps. For safe operation, gradual RPM increase is recommended.

Stend

Perfectly designed to let users feel totally relaxed by leveling the height.

Cat. No	Description (W×D×H) (mm / inch)	Suitable for
AAA23571	Stand 1 with Stacking kits (600mm/23.6" height for stacking 1 unit)	ISS-7100(R), ISS-7200(R)
AAA23572	Stand 2 with Stacking kits (600mm/23.6" height for stacking 2 unit)

Cat. No

Description (W×D×H) (mm / inch)

Suitable for

AAA23571

Stand 1 with Stacking kits

(600mm/23.6" height for stacking 1 unit)

ISS-7100(R),

ISS-7200(R)

AAA23572

Stand 2 with Stacking kits

(600mm/23.6" height for stacking 2 unit)

Cat. No.	Description (W×D×H) (mm / inch)
AAA30551	200×200×5 / 7.9×7.9×0.2

Stacking kits

Units are stackable using exclusive stacking kits for space saving.

Cat. No.	Description	Suitable for
AAA23573	Stacking kits for stackable chambers	ISS-7100(R), ISS-7200(R)

Cat. No.

Description

Suitable for

AAA23573

Stacking kits for stackable chambers

ISS-7100(R),

ISS-7200(R)

Gateway

Establish Jeio Tech Network by Gateway. No computer use is required at all. Remote monitoring of operating status through a mobile phone is simply available when you place a Gateway in your laboratory. Maximum 4 units can be connected to Gateway by RS-232 cable.

Cat. No.	Description
AAAQ1011	Gateway (2.4GHz, 100~240V, 50/60Hz)

LC GreenBox

Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.
