Mixers

Vortex Mixer

Low profile design and highly touch sensitive sensor reduce wrist stresses when pushing and holding experiment tools resulting in less fatigue and less unpleasant feeling .

Model Name : VM-96T / VM-96A




High-sensitive platform (VM-96A)

  • Rapid vortex formation even touching anywhere on top plate.

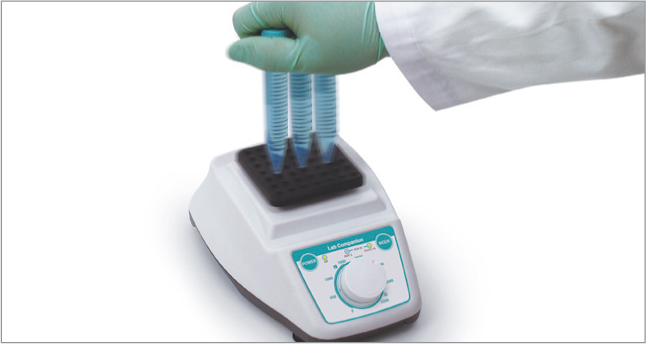

  • Available to handle the several tubes at the same time.

  • Various shape tubes can be used. (centrifuge tube, conical tube, test tube, etc.)

  • Well-balanced design and optimized safety features.
  • Low-profile with small footprint ideal for use on lab benches and within fume hoods or clean benches.
  • On touch operation mode, real-time and dynamic mixing made even with gentle touch.
    - Every point of the top surface is highly reactive to gentle touch due to widely built in sensitive sensors.
  • Selective mixing modes with variable speed control knob.
    - VM-96A: Touch / Continuous / High-continuous.
    - VM-96T: Touch / Continuous.
  • Built-in LED lamps in case of VM-96A for easy recognition of the mixing mode selected.
  • Sparkless BLDC motor adopted for safety, quick acceleration, and low maintenance.
  • Built-in safety features against overload and over current.
  • Chemically resistant polypropylene molded exterior.
  • Wide range of accessories available.
Model VM-96A VM-96T
Speed range (rpm) Max. 3000
Speed control Scale
Operating mode Touch / Continuous / High-continuous Touch / Continuous
Motion Orbital
Orbit size (mm, inch, dia.) 4 / 0.16
Max. load (kg / lbs) 0.5 / 1.1
Motor rating input / output (W) 12 / 6
Material Platform Silicone
Body Polypropylene
Motor type BLDC (Brushless Direct Current)
Dimensions Platform (WxD) (mm / inch) 76x76 / 3x3
Exterior 1) (W×D×H) (mm / inch) 154×210×84 / 6.1x8.3x3.3 148x159x77 / 5.8x6.3x3
Net weight (kg / lbs) 3 / 6.6 2.6 / 5.7
Protection class (DIN EN 60529) IP 42 -
Electrical requirements AC 100V to 240V, 50/60Hz
Cat. No. KR plug AAH360215K Persian blue Orange
AAH361215BK AAH361215RK
US plug AAH360215U Persian blue Orange
AAH361215BU AAH361215RU

※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%)
※ Protection class according to DIN EN 60529: Waterproof, dust production index based on the test level.
※ RoHS except for VM-T.
1) Exterior dimension without accessories.

Platform (standard)


Platform (pop-off)


Microplate tray
Cat. No. Description
VMS0058 Platform (standard)
VMS0063 Platform (pop -off)
VMS0008JT Microplate tray
AAA36520 Tube holder with tray (up to Φ50mm)
AAA36521 Tube holder with tray (Φ10mm x 16ea)
AAA36522 Tube holder with tray (Φ12mm x 9ea)
AAA36523 Tube holder with tray (Φ15mm x 9ea)
AAA36524 Tube holder with tray (Φ20mm x 5ea)
AAA36525 Tube holder with tray (Φ25mm x 4ea)
AAA36526 Tube holder with tray (Φ8mm x 18ea & Φ10mm x 28ea)

Tube holders with adhesive tray for stable vortexing.
