Refrigerators & Freezers

Pharmaceutical Refrigerator (PSR3-70)

Stable cold storage for pharmaceuticals provided

Model Name : PSR3-70

Obtained Medical Device Certificate

  • Certificate of medical device management systems.

Structural functional features

  • Applies patented Dual Management System to keep standby controller operating automatically and maintains stable temperature even if main controller fails.
    (patent reg.10-1550400) (except for PSR3-70 model)
  • Separate temperature sensors connected to the display monitor the internal temperature independently.
  • Verified temperature uniformity with measurements performed at 27 points.
  • Designed based on DIN 58375
    (pharmaceuticals refrigerator conditions and tests)
  • Equipped with easy-to-move/install caster.
  • Clean use with dew-free structure.

Use Convenience Features

  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.
    (when purchased LC GreenBox, only PSR3-70)
  • Built-in voice alarm system transmits voice messages to specified users (up to 7 phones) if there is an abnormality in the device.
  • Includes 7-day circular chart temperature recorder. (except for PSR3-70 model)
  • Stable temperature control by dedicated controller.
  • Application of Lab Companion's specialized defrost control technology.
  • Glass door and LED lighting make it easy to observe inside.

Outstanding Safety

  • Temperature deviation alarm function. (Hi&Low temperature)
  • Malfunction prevented by controller lock function.
  • Door lock with key as standard.
  • Notification function when door is opened for a long time.
  • Back up battery in case of power failure.(option, PSR3)
  • Enhanced security with digital door lock. (only PSR3)
Model PSR3-70 (CE Certified) PSR- 3001 PSR- 6501
Temperature range (℃ / ℉) 2 to 10 / 35.6 to 50 1) 2 to 10 / 35.6 to 50 1) 2 to 10 / 35.6 to 50 1)
Chamber volume (L / cu ft) 73 / 2.6 303 / 10.7 614 / 21.7
Refrigerator (HP) - 1 / 6 1 / 3
Dimensions
Internal (WⅹDⅹH, mm / inch) 418 x 440 x 400
/ 16.5 x 17.3 x 15.7
550 x 550 x 1000
/ 21.7 x 21.7 x 39.4
700 x 640 x 1370
/ 27.6 x 25.2 x 53.9
External (WⅹDⅹH, mm / inch) 522 x 600 x 725
/ 20.6 x 23.6 x 28.5
670 x 770 x 1515
/ 26.4 x 30.3 x 59.6
820 x 860 x 1885
/ 32.3 x 33.9 x 74.2
Net weight (Kg / lbs) 67 / 147.7 130 / 286.6 210 / 463
Shelf
Quantity of shelves (standard/max.) 2 / 3 3 / 11 3 / 15
Load per shelf (kg / lbs) 30 / 66.1 26 / 57.3 30 / 66.1
Electrical data & Ordering information
230V 50Hz, 1.1A 60Hz, 1.1A 50/60Hz, 2.8A 50Hz, 3.8A 60Hz, 3.8A

Cat. No.

AAHE6302K AAHE6301K AAHE60151K AAHE6022K AAHE60211K

120V

60Hz, 2.9A

60Hz, 5.5A

60Hz, 2.9A

Cat. No.

AAHE6303U AAHE60313U AAHE60231U

※ According to DIN 58345 (pharmaceuticals refrigerator conditions and tests)
1) 4℃ Set point

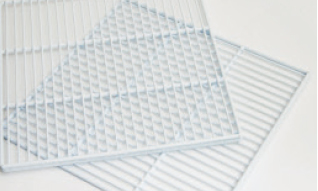

  • Wire Shelf
    Provides uniform temperature conditions throughout the storage area thanks to space between wires.

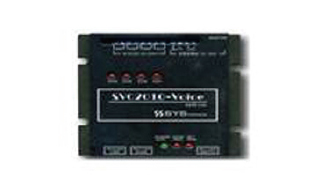

  • Remote Alarm
    When a device malfunctions, a voice message is transmitted to the users.

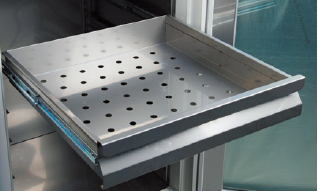

  • Drawer Shelf (Slide)
    The drawer shelf of a rigid steel plate makes easy to handle storage inside.

  • Wire Shelf (Slide)
    Wire type with good airflow, and convenient to use as drawer type.

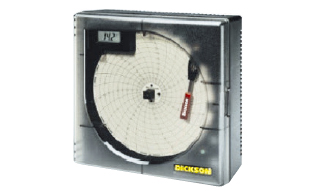

  • Recorder with Sensor (Chart)

    24/7 circular chart recorder.
    Easy replacement of the recording paper.
    Independent sensor that are separate from the product.

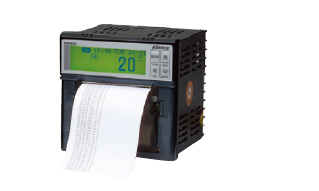

  • Recorder with Sensor (Thermal Line)

    Graph/Digital mode.
    Thermal-type temperature recorder.
    Independent sensor that are separate from the product.

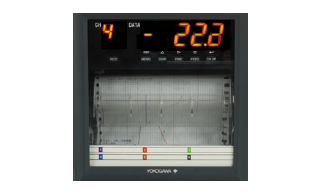

  • Recorder with Sensor (Dot)

    Up to 6 cha nnels supported.
    Set recording range and speed.
    Paper width: 1000mm.
    Independent sensor that are separate from the product.

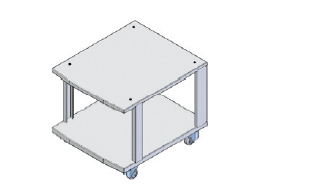

  • Stand with Caster

    Convenient use of small devices.
    Easy to move/fix with casters.

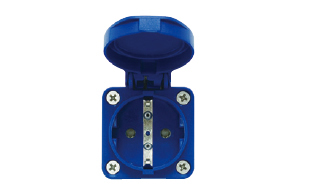

  • Electric Socket

    Power supply for A C 230V.
    Includes cover as standard.



Model Standard Optional
Wire Shelf Drawer
Shelf
(Slide)
Recorder
(Chart)
Remote
Alarm
Wire Shelf
(Slide)
Drawer Shelf
(Slide)
Recorder
(Chart)
Recorder
(Dot)
Recorder
(Thermal
line)
Electric
Socket
Stand
with Caster
Remote
Alarm
PSR3-70 AAAE15081 N/A N/A N/A AAAE15091 AAAE151011) N/A N/A AAAE15631 N/A N/A AAAE15511
PSR-3001 AAAE1511 N/A AAAE1501 AAAE1551 AAAE1514 AAAE1517 AAAE1501 N/A N/A N/A N/A AAAE1551
PSR-6501 AAAE1512 N/A AAAE1501 AAAE1551 AAAE1515 AAAE1518-1 AAAE1501 N/A N/A N/A N/A AAAE1551

1) CLG3-70, PSR-70 offer 3 different drawer type : Digital type(AAAE15101), Key lock type(AAAE15102), Unlocked type(AAAE15103)

Cryo box / Storage box

Cryo box is designed for ultra-low temperature storage of biological materials. (heat resistance : -196°C to 121°C)
Storage box is suitable for storage of samples in general conditions. (heat resistance: 20°C to 121°C)

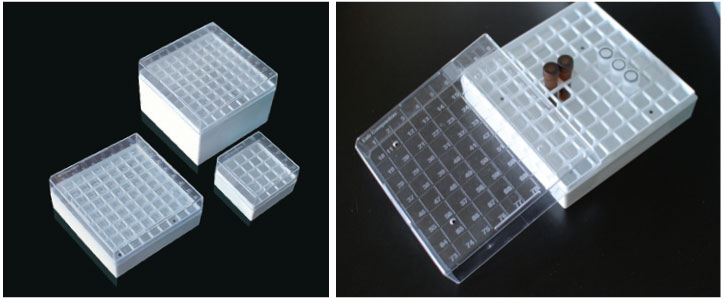

  • Cryo box

    Excellent durability even at ultra-low temperature with stable PC material.
    Easily distinguish samples with numbers on the covers.
    Cover, tray and dividers are separated for easy cleaning.
    Pressurized sterilization possible (autoclavable).

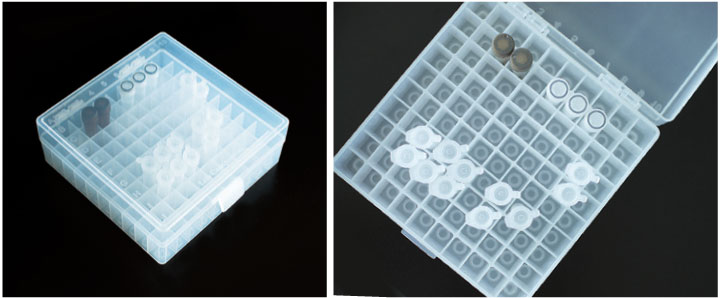

  • Storage box

    Excellent chemical resistance due to polypropylene material.
    The circular grooves at the bottom ensure stable mounting of tubes.
    Easy to separate samples with numbers and letters on covers.
    Pressurized sterilization possible (autoclavable).

Model CRB-25 CRB-81S CRB-81T
Tube size (ml) 1.2 to 2.0 1.2 to 2.0 5
Max. Mountable tube 25 (5 x 5) 81 (9 x 9) 91 (9 x 9)
Dimension
(W xD x H, mm / inch)
77 x 77 x 53
/ 3 x 3 x 2.1
132 x 132 x 54
/ 5.2 x 5.2 x 2.1
132 x 132 x 96
/ 5.2 x 5.2 x 3.8
Cat. No. AAAJ7001 AAAJ7002 AAAJ7003
Model SRB-100
Tube size (ml) 1.2 to 2.0
Max. Mountable tube 100 (10 x 10)
Dimension
(W xD x H, mm / inch)
140 x 140 x 53
/ 5.5 x 5.5 x 2.1
Cat. No. AAAJ7011

Accessories for CLG3-70 / PSR3-70

LC GreenBox

Real-time monitoring of equipment connected to LC Connected possible through the dedicated mobile application for Lab Companion.
(Supported from Android 6.0 Marshmallow version and above. iOS devices to be supported in the future)
Each lab member can access connected devices for which they have access permission through their personal mobile app.
One LC GreenBox can communicate with up to four Lab Companion devices via an RS-232 port and can be expanded via multiple LC GreenBoxes.
Access to the Cloud Server via Wi-Fi or wired LAN allows for a high degree of freedom in the lab.
Real-time alarms for events concerning connected equipment
(temperature deviation, long-term door opening, power failure, and etc.)



Cat. No. Description Dimension (W x D x H, mm / inch)
AAAQ1011 Mobile monitoring system 156 x 94 x 34 / 6.1 x 3.7 x 1.3



Battery

Activate/deactivate battery via settings.
When the setting of ba ttery is ON, a warning alarm occurs if the power is turned off during opera tion.
The recorder also records power failure events.



Cat. No. Description
AAAE15301 Battery
