Heating & Cooling Chambers (LCH-G)

0℃ to 100℃ (H flow)

with optional recorder

Model Name : LCH-11G/21G/31G/11G-2C

Performance

Microprocessor PID control.
Temperature calibration / Automatic tuning.
Adjustable three-step fan speed with defrosting time and period control.
Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
Energy efficiency is achieved thanks to optimization of the insulation system. The surface of the unit doesn’t allow high temperatures of over 60℃.

Convenience

Two independently controlled chambers merged into a single unit for space saving.
Intuitive control panel with bright LED display (0.1℃resolution) and touch-sensitive keypad.
Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
Convenient preset function for 3 most commonly used temperature settings.
Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
Built-in cable port to use other instruments inside the chamber. (diameter: 80mm)
RS-232 interface for external control and data collection.

Safety

for temperature range from 0℃ to 100℃

Model		LCH-11G	LCH-21G	LCH-31G	LCH-11G-2C
Chamber volume (L / cu ft)		150/5.3	255/9.0	485/17.1	150/5.3 x 2 chambers
Temperature	Range(℃/℉)	0 to 100 / 32 to 212
	Fluctuation(±℃/ ℉) ¹⁾	0.3 / 0.54
	Variation at 80°C(±℃/ ℉)¹⁾	0.8 / 1.44
Time	Heating(min.)	80(from 20℃to100℃)
Time	Cooling(min.)	60 (from100℃to 40℃)
No. of wire shelves (standard / max.)		2 / 12	2 / 24	2 / 29	2 / 12 per chamber
Distance of between shelves (mm / inch)		30 / 1.2
Max. load per shelf (kg / lbs)		15 / 33.1	20 / 44.1	20 / 44.1	15 / 33.1
Permitted total load (kg / lbs)		50 / 110.2	70 / 154.3	70 / 154.3	50 / 110.2 per chamber
Dimension (W×D×H)	Interior (mm / inch)	600x500x500 / 23.6x19.7x19.7	600x500x850 / 23.6x19.7x33.5	700x680x1020 / 27.6x26.8x40.2	600x500x500 / 23.6x19.7x19.7
	Exterior (mm / inch)	740x1032x1280 / 29.1x40.6x50.4	740x1032x1630 / 29.1x40.6x64.2	840x1212x1800 / 33.1x47.7x70.9	740x1032x1900 / 29.1x40.6x74.8
	Net weight (kg / lbs)	120/264.6	180/396.8	220/485.0	190/418.9
Cable Port (mm / inch)		Ø80 / Ø3.15
Interface port		RS-232C
Electrical requirements (230V,60Hz)		7.1A	10.6A	13.8A	14.2A
Cat. No.		AAHK6121K	AAHK6221K	AAHK6321K	AAHK6421K
Electrical requirements (230V,50Hz)		7.4A	11.1A	14.4A	14.8A
Cat. No.		AAHK6122K	AAHK6222K	AAHK6322K	AAHK6422K
Electrical requirements (120V,60Hz)		13A			26A
Cat. No.		AAHK6123U	-	-	AAHK6423U

Cat. No.	Description	Models
Cat. No.	Description	LCH

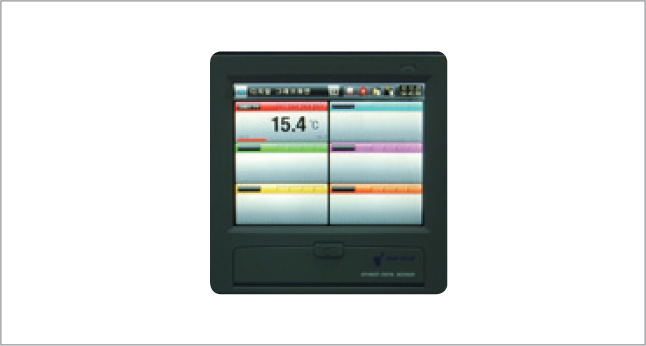

AAA8T505	Recorder (digital, 6 channels)

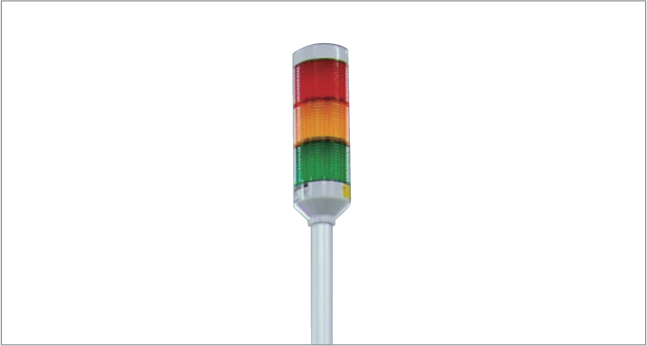

AAA80550	Warning signal lamp
00EDA0008219	Wire shelf for LCH-11 models (566x466 / 22.3x17.6”)
00EDA0008220	Wire shelf for LCH-21 models (466x490 / 17.6x19.3”)
AAAK6531	Wire shelf for LCH-31 models (620x663 / 24.4x26.1”)

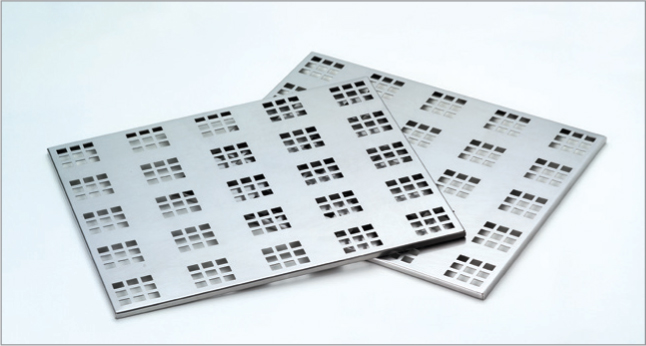

AAA22521	Perforated shelf for LCH-11 models
AAA22522	Perforated shelf for LCH-21 models
AAAK6532	Perforated shelf for LCH-31 models
AAA8T611	Cable port ø80
AAA8T610	Cable port ø50
