Storages

Laboratory Freezers

126 Laboratory Freezers FDG/FCG/FMG/MHG models with optional recorder.

Model Name : FDG/FCG/FMG/MHG models








Performance

  • Excellent freezing control down to minimum -50°C (model dependent)

      - FDG model down to -50°C

        - FCG model down to -35°C

          - FMG model down to -25°C

            - FHG model down to -15°C

            • Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
            • High thermal efficiency evaporation system, made of low corrosive materials.
            • Dual defrost systems

                - Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator.

                  - Additional manual defrost system for immediate frost removal.

                  Convenience

                  • Four-temperature different freezing models cover various storage application.
                  • Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.

                      - Easy temperature unit conversion between ℃ and ℉

                      • Air-tight door seal and lockable door latch enhances tightness to door closure.
                      • High-quality 304 grade stainless steel interior.
                      • Efficient internal space use with height adjustable wire shelves.
                      • Dedicated stand with casters and stacking kit for FHG/FMG/FCG- 150 for use in labs with limited space. (optional)
                      • Three types of recorders to choose from (optional)

                          - Dot recorder (6 point)

                            - Chart recorder (6”, 24hr/7days)

                              - Thermal line recorder

                              Safety

                              • High/low temperature protection, Over current protection.
                              • Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss.
                              • Keypad lock function, Built in door lock with a key.

                              FDG models (for temperature range from -50℃ to -35℃)

                              Model FDG-300 FDG-650

                              Chamber volume (L / cu ft)

                              303 / 10.7

                              647 / 22.8

                              Temperature range (℃ / ℉)

                              -50 to -35 / -58 to -31

                              Refrigerator (Hp)

                              1/3 x 2

                              1/2 x 2

                              No. of wire shelf (standard / max.)

                              3 / 11

                              3 / 17

                              Max. load per shelf (kg / Ibs)

                              26 / 57.3

                              30 / 66.1

                              Material

                              Interior / Exterior

                              Stainless steel #304 / Steel, 1 mm, powder coating

                              Insulation

                              120mm, Polyurethane foam

                              Dimension (W×D×H)

                              Interior (mm / inch)

                              550x550x1000 / 21.7×21.7×39.4

                              700x675x1370 / 27.6x26.6x53.9

                              Exterior (mm / inch)

                              805x800x1690 / 31.7x31.5x66.5

                              955x925x2060 / 37.6x36.4x81.1

                              Net weight (kg / Ibs)

                              180 / 396.8

                              280 / 617.3

                              Electrical requirements (230V, 60Hz) 5.0A 6.5A
                              Cat. No. AAHE2411K AAHE2421K
                              Electrical requirements (230V, 50Hz) 5.0A 6.5A
                              Cat. No. AAHE2412K AAHE2422K

                              1) Technical data according to DIN 12880.
                              ※ Permissible environmental conditions: temperature (18 to 30℃) and relative humidity (up to 85%).



                              FCG models (for temperature range from -35℃ to -25℃)

                              Model FCG-150 FCG-300 FCG-650

                              Chamber volume (L / cu ft)

                              154 / 5.4

                              303 / 10.7

                              647 / 22.8

                              Temperature range (℃ / ℉)

                              -35 to -25 / -31 to -13

                              Refrigerator (Hp)

                              2016. 3. 4

                              1

                              2001. 1. 2

                              No. of wire shelf (standard / max.)

                              2 / 6

                              3 / 11

                              3 / 17

                              Max. load per shelf (kg / Ibs)

                              26 / 57.3

                              30 / 66.1

                              Material

                              Interior / Exterior

                              Stainless steel #304 / Steel, 1 mm, powder coating

                              Insulation

                              100mm, Polyurethane foam

                              Dimension (W×D×H)

                              Interior (mm / inch)

                              550x570x490 / 21.7x22.4x19.3

                              550x550x1000 / 21.7×21.7×39.4

                              700x675x1370 / 27.6x26.6x53.9

                              Exterior (mm / inch)

                              763x815x1055 / 30x32.1x41.5

                              765x760x1650 / 30.1x29.9x64.9

                              915x885x2020 / 36x34.8x79.5

                              Net weight (kg / Ibs)

                              123 / 271.2

                              155 / 341.7

                              238 / 524.7

                              Electrical requirements (230V, 60Hz) 6A 7.5A 10.5A
                              Cat. No. AAHE2301K AAHE2311K AAHE2321K
                              Electrical requirements (230V, 50Hz) 6A 7.5A 10.5A
                              Cat. No. AAHE2302K AAHE2312K AAHE2322K

                              FMG models (for temperature range from -25℃ to -15℃)

                              Model FMG-150 FMG-300 FMG-650

                              Chamber volume (L / cu ft)

                              154 / 5.4

                              303 / 10.7

                              647 / 22.8

                              Temperature range (℃ / ℉)

                              -25 to -15 / -13 to 5

                              Refrigerator (Hp)

                              2016. 1. 2

                              2016. 1. 2

                              2016. 3. 8

                              No. of wire shelf (standard / max.)

                              2 / 6

                              3 / 11

                              3 / 17

                              No. of wire shelf, slide (max., optional)

                              4

                              7

                              11

                              No. of drawer shelf, slide (max., optional)

                              3

                              5

                              8

                              Max. load per shelf (kg / Ibs)

                              26 / 57.3

                              30 / 66.1

                              Material

                              Interior / Exterior

                              Stainless steel #304 / Steel, 1 mm, powder coating

                              Insulation

                              100mm, Polyurethane foam

                              Dimension (W×D×H)

                              Interior (mm / inch)

                              550x570x490 / 21.7x22.4x19.3

                              550x550x1000 / 21.7×21.7×39.4

                              700x675x1370 / 27.6x26.6x53.9

                              Exterior (mm / inch)

                              763x815x1055 / 30x32.1x41.5

                              765x760x1650 / 30.1x29.9x64.9

                              915x885x2020 / 36x34.8x79.5

                              Net weight (kg / Ibs)

                              120 / 264.6

                              150 / 330.7

                              233 / 513.7

                              Electrical requirements (230V, 60Hz) 4.5A 4.8A 5.5A
                              Cat. No. AAHE2201K AAHE2211K AAHE2221K
                              Electrical requirements (230V, 50Hz) 4.5A 4.8A 5.5A
                              Cat. No. AAHE2202K AAHE2212K AAHE2222K

                              FHG models (for temperature range from -15℃ to 0℃)

                              Model FHG-150 FHG-300 FHG-650

                              Chamber volume (L / cu ft)

                              154 / 5.4

                              303 / 10.7

                              647 / 22.8

                              Temperature range (℃ / ℉)

                              -15 to 0 / 5 to 32

                              Refrigerator (Hp)

                              2016. 1. 3

                              2016. 1. 3

                              2016. 1. 3

                              No. of wire shelf (standard / max.)

                              2 / 6

                              3 / 11

                              3 / 17

                              No. of wire shelf, slide (max., optional)

                              4

                              7

                              11

                              No. of drawer shelf, slide (max., optional)

                              3

                              5

                              8

                              Max. load per shelf (kg / Ibs)

                              26 / 57.3

                              30 / 66.1

                              Material

                              Interior / Exterior

                              Stainless steel #304 / Steel, 1 mm, powder coating

                              Insulation

                              100mm, Polyurethane foam

                              Dimension (W×D×H)

                              Interior (mm / inch)

                              550x570x490 / 21.7x22.4x19.3

                              550x550x1000 / 21.7×21.7×39.4

                              700x675x1370 / 27.6x26.6x53.9

                              Exterior (mm / inch)

                              763x815x1055 / 30x32.1x41.5

                              765x760x1650 / 30.1x29.9x64.9

                              915x885x2020 / 36x34.8x79.5

                              Net weight (kg / Ibs)

                              120 / 264.6

                              150 / 330.7

                              230 / 507.1

                              Electrical requirements (230V, 60Hz) 3.5A 3.8A 3.8A
                              Cat. No. AAHE2101K AAHE2111K AAHE2121K
                              Electrical requirements (230V, 50Hz) 3.5A 3.8A 3.8A
                              Cat. No. AAHE2102K AAHE2112K AAHE2122K

                              ※ Technical data according to DIN 58375.

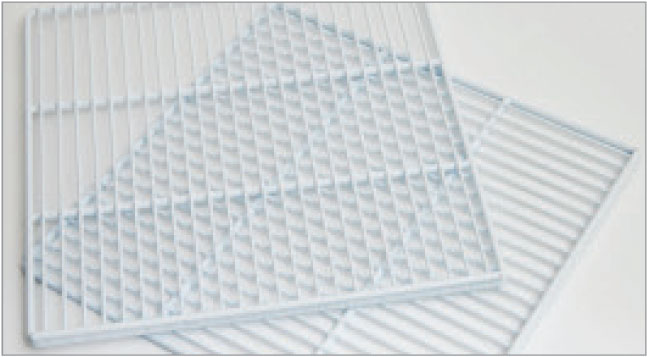

                              • Wire shelves

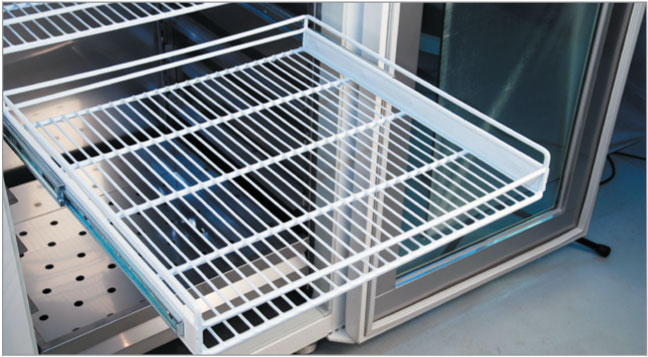

                              • Wire shelves (slide type)

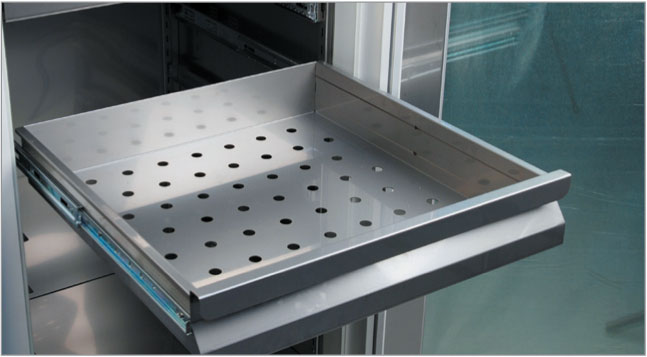

                              • Drawer shelves (slide type)

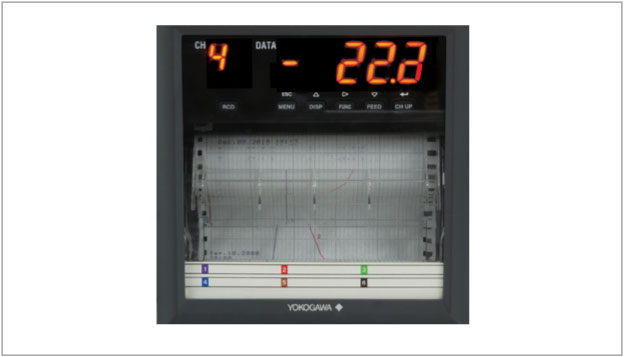

                              • Dot recorder

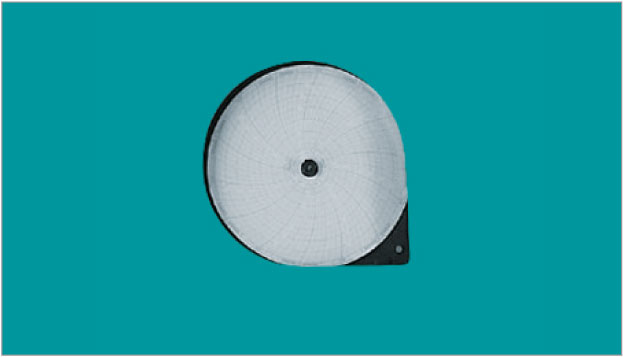

                              • Chart recorder

                              • Thermal line recorder

                              for Laboratory Cooling

                              Cat. No. Description

                              FHG-150 /

                               FMG-150

                              FHG-300 /

                              FMG-300

                              FHG-650 /

                              FMG-650

                              FCG-150

                              FCG-300 /

                              FDG-300

                              FCG-650 /

                              FDG-650

                              AAAE1511
                              Wire shelves - flat type
                              (included shelf bracket)
                              - -
                              AAAE1512 - - - -
                              AAAE1514
                              Wire shelves - slide type
                              (included guide rail)
                              - - - -
                              AAAE1515 - - - - -
                              AAAE1517
                              Drawer shelves - slide type
                              (included guide rail)
                              - - - -
                              AAAE1518 - - - - -
                              AAA8T500

                              Recorder

                              (dot type, 6 point)

                              AAAE1501

                              Recorder

                              (chart type, 6”, 24hr / 7day)

                              AAAE1502

                              Chart recorder paper

                              (6”, 60ea/1 package)

                              AAAE1503 Recorder (thermal line type)




                              Cryo box / Storage box

                              Cryo box is designed for ultra-low temperature storage of biological materials. (heat resistance : -196°C to 121°C)
                              Storage box is suitable for storage of samples in general conditions. (heat resistance: 20°C to 121°C)

                              • Cryo box

                              • Storage box

                              Cat. No. Description Dimension
                              (W×D×H) (mm / inch)
                              AAAJ7001 Cryo box (PC, 1.2 to 2.0ml tubes x 25) 77×77×53 / 3.0×3.0×2.1
                              AAAJ7002 Cryo box (PC, 1.2 to 2.0ml tubes x 81) 132×132×54 / 5.2×5.2×2.1
                              AAAJ7003 Cryo box (PC, 5ml tubes x 81) 132×132×96 / 5.2×5.2×3.8
                              AAAJ7011 Storage box (PP, 1.2 to 2.0ml tubes x 100) 140×140×53 / 5.5×5.5×2.1
