Industrial Equipments

Temp. & Humid. Chambers (TH-KH)

Wide temperature range down to -70 °C and high advanced safety features for quality and reliability

Model Name : TH-KH-180/300/408

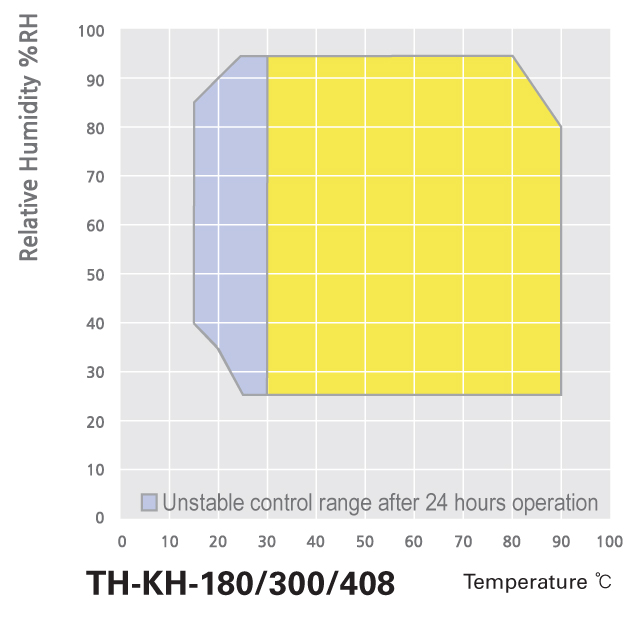

Control range

  • Temperature range from -70 to 150°C Humidity range from 25 to 95% RH

Performance

  • Microprocessor PID control / Temperature calibration / Automatic tuning.
  • Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
  • Water recycling and filtering system reduce water consump-tion for longer operation.
  • Air-tight door closure with perfect sealed packing.
    - Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
    - Two-point door latch also enhances tightness to door closure.
  • Energy efficiency is achieved by optimization of the insulation system.
    - Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.

Safety

  • Built in door lock with a key.
  • Automatic shut off after overheat alarm.
  • Low and empty water level alarm.
  • Power supply leakage breaker.
  • Over current protection.
  • Open door alarm.
  • Color LCD controller

  • Computer interface

  • Door handle

  • Portable water container

Convenience

  • Three different volume sizes are available to suit any users’needs.
    - Various volume sizes, available to suit any users’ need.
  • Corrosion resistance stainless steel chamber and electric polished humidification tank.
  • Maintenance of water supply are easily performed with a front water tank.
    - Portable water container makes supplying water convenient.
  • Water supply during operation is also available for long term test purposes.
  • Direct water system provides user great convenience when performing long-term tests. (optional)
  • Clear observation of samples.
    - Tempered glass door with built in heating wire.
    - Energy efficient, long life span LED lighting.
    - Wider view, inner glass door is available for monitoring of samples. (optional)
  • Cable port for introduction of external probes or wires.
    - 50mm diameter cable port comes standard on the left side of the unit.
    - Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
  • Casters for easy mobility during installation or relocation.
  • User friendly LCD controller.
    - 5.7 inch colorful interactive touch type LCD controller.
    - Set value and present value are clearly visible together on display.
    - Operating progressvisible in graph mode allow for direct data interpretation.
    - Built-in SD card drive.
    - Trilingual support. (English / Chinese / Korean)
    - Temperature and other operating parameters recorded with use of selectable recorder. (optional)
    - Sufficient programmable control support.
    Description No
    Programmable pattern capacity 120
    Pattern repeat time 999
    Max. segments per a pattern 100
    Available max. segments* 1200
    Programmable process time per a segment 0 to 999hr
    59 min 59 sec

    * Even though the max. segments per a pattern are 100, available total segments are up to 1200 not 12000, so you need to arrange the number of segment an patterns properly.

  • Computer interface.
    - RS-485 communication port enables connection of up to maximum 9 units. Simultaneous monitoring and operating of multiple units is an available feature.(optional)
    - Program patterns are simple to set with the use of our software.
    - Storage of program information, backup of value settings, recovery, temperature, humidity values.
    - RS-232 communication port comes standard.
Model TH-KH-180 TH-KH-300 TH-KH-408

Chamber volume (L / cu ft)

189 / 7.4

302 / 11.9

408 / 14.4

Controller

Programmable, Touch screen type controller (5.7” color monitor)

Temperature

Range (℃ / ℉)

-70 to 150 / -94 to 302 without humidity, 15 to 90 / 59 to 194 with humidity

* Best programmable control range : -60 to 140 / -76 to 284

Fluctuation 1) (±℃ / ℉) at 40℃ / 75%RH

0.3 / 0.54

Variation 1) (±℃ / ℉) at 40℃ / 75%RH

0.5 / 0.90

Time

Heating - without humidity (min.)

70 from -70℃ to 120℃ (-96℉ to 248℉)

Cooling - without humidity (min.)

80 from 20℃ to -70℃ (68℉ to -96℉)

Humidity

Range (%RH)

25 to 95
※ See Feature page for more detailed humidity range check.

Fluctuation 1) (±%RH) at 75%RH / 40℃

0.4

Variation 1) (±%RH) at 75%RH / 40℃

3.0

Refrigeration

System

Mechanical dual stage refrigerator system (air-cooled condenser)

Refrigerant

R-507, R-23

Water supply

Capacity

15L (0.53cu ft) - Cartridge type

Water quality

pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below

No. of wire shelves (standard / max.)

2 / 9

2 / 10

2 / 10

Distance of between shelves (mm / inch)

60 / 2.4

60 / 2.4

60 / 2.4

Max. load per shelf (kg / lbs)

20 / 44.1

25 / 55.1

25 / 55.1

Permitted total load (kg / lbs)

50 / 110.2

65 / 143.3

65 / 143.3

Dimension (W×D×H)

Interior (mm / inch)

500×630×600 / 19.7×24.8×23.6

600×630×800 / 23.6×24.8×31.5

600×850×800 / 23.6×33.5×31.5

Exterior (mm / inch)

1043x1613x1558 / 41.1x63.5x61.3

1143x1833x1758 / 45.0x72.2x69.2

1143x2053x1758 / 45.0x80.8x69.2

Viewing windows (mm / inch)

200×330 / 7.9×13

Net weight (kg / lbs)

320 / 705.5

385 / 848.8

410 / 903.9

Cable port

Basically one hole provided / Ø50mm (2”)

- Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)

Interface port

Basically RS-232C [RS-485-optional]

Electrical requirements (230V, 50Hz) 3ph / 17.2A 3ph / 17.3A
Cat. No. AAHC3012K AAHC3112K AAHC3212K
Electrical requirements (380V, 50Hz) 3ph / 10.1A 3ph / 10.2A
Cat. No. AAHC3014K AAHC3114K AAHC3214K

1) Technical data according to DIN 12880, IEC 60068.

※ Permissible environmental conditions: temperature (18 to 30℃) and relative humidity (up to 85%).
※ All specifications are under ambient temperature 20℃ (68℉), No load.

for Floor Standing Chambers

Accessory check list□ Standard     ○ Optional

Description Models
TH-G TH-I TH-KH TH-TG TH-ICH TH-CR
Recorder (6 points)
Recorder (digital, 6 channels)
interface converter RS-485C → 232C included a cable (5m / 16.4ft)
Interface cable (5m / 16.4ft)
Warning signal lamp
Inner glass door -
Viewing window -
Wire shelf
Perforated shelf
Cable port (Ø 50mm / 2”)
Cable port (Ø 80mm / 3.2”)
Temperature sensor (RTD type)
Humidity sensor
Fluorescent lamp (Cool White) - - - - -
UVA lamp - - - - -
UV sensor - - - - -
Illumination Sensor - - - - -
HEPA filter - - - - -
ULPA filter - - - - -
Water cartridge tank (Water Container) -
Water purifier
Direct water system

1) 80mm cable access hole is NOT available for 25L chamber.

Ordering information

Cat. No. Description Suitable for
AAA8T500 Recorder (6 points) All models
AAA8T505 Recorder (digital, 6 channels) All models
AAA8T540 interface converter RS-485C →
232C included a cable (5m / 16.4ft)
All models
AAA8T542 Interface cable (5m / 16.4ft) All models
AAA80550 Warning signal lamp All models
AAA81552 Inner glass door TH-G/I/KH-180
AAA81551 TH-G/I/KH-300, 408, CR-270
AAA81550 TH-G-800, 1000
AAAC2501 TH-TG-180
AAAC2502 TH-TG-300, 408
AAAC2503 TH-TG-800, 1000
AAA81554 TH-ICH-300
AAA81555 TH-ICH-800
AAA8T610 Cable port (Ø 50mm / 2”) All models
AAA8T611 Cable port (Ø 80mm / 3.2”) All models
CFA1185 Temperature sensor (RTD type) TH-G/I/GUmodels
CFA1923 TH-TG/ICH/CRmodels
CFA7113 Humidity sensor All models
RTD1190 Fluorescent lamp (cool white) TH-ICH-300
RTD1191 TH-ICH-800
RTD1188 UVA lamp TH-ICH-300
RTD1189 TH-ICH-800
AAA80680 THE-680 UV sensor TH-ICH-300/800
AAA80681 THE-681 Illumination sensor TH-ICH-300/800
AAA80661 Door lock device TH-ICH-300/800
EDA9184 HEPA filter TH-CR-270
EDA9175 ULPA filter TH-CR-270
AAA80622 Water cartridge tank All models
Cat. No. Description Suitable for
AAA8T621 Water purifier All models
AAA80620 Direct water system All models
EDA8212 Wire shelf TH-G/I/KH-180
EDA8213 TH-G/I/KH-300
EDA8214 TH-G/I/KH-408
EDA8215 TH-G-800
EDA8216 TH-G-1000
RTD1302 TH-TG-180
RTD1303 TH-TG-300
RTD1300 TH-TG-408
RTD1304 TH-TG-800
RTD1301 TH-TG-1000
RTD1305 TH-G/TG-1500
RTD1196 TH-ICH-300
RTD1198 TH-ICH-800
STT1040 TH-CR-270
AAA80602-1 Perforated shelf TH-G/I/KH-180
AAA80602-2 TH-G/I/KH-300
AAA80602-3 TH-G/I/KH-408
AAA80602-4 TH-G-800
AAA80602-5 TH-G-1000
AAA80604-11 TH-TG-180
AAA80604-12 TH-TG-300
AAA80604-13 TH-TG-408
AAA80604-14 TH-TG-800
AAA80604-15 TH-TG-1000
AAA80604-16 TH-G/TG-1500
AAA80604-2 TH-ICH-300
AAA80604-4 TH-ICH-800
AAA80603-1 TH-CR-270
