Storages

Acid / Corrosive Cabinets

Safety cabinets for long-term storage of corrosive substances.

Durable metal structure with corrosion-resistant interior material.
Efficient ventilation system prevents noxious gas or chemical gas accumulation.

Model Name : SC-C1912D4/C1912D2/C1906D2/C1906D1/C0706D1

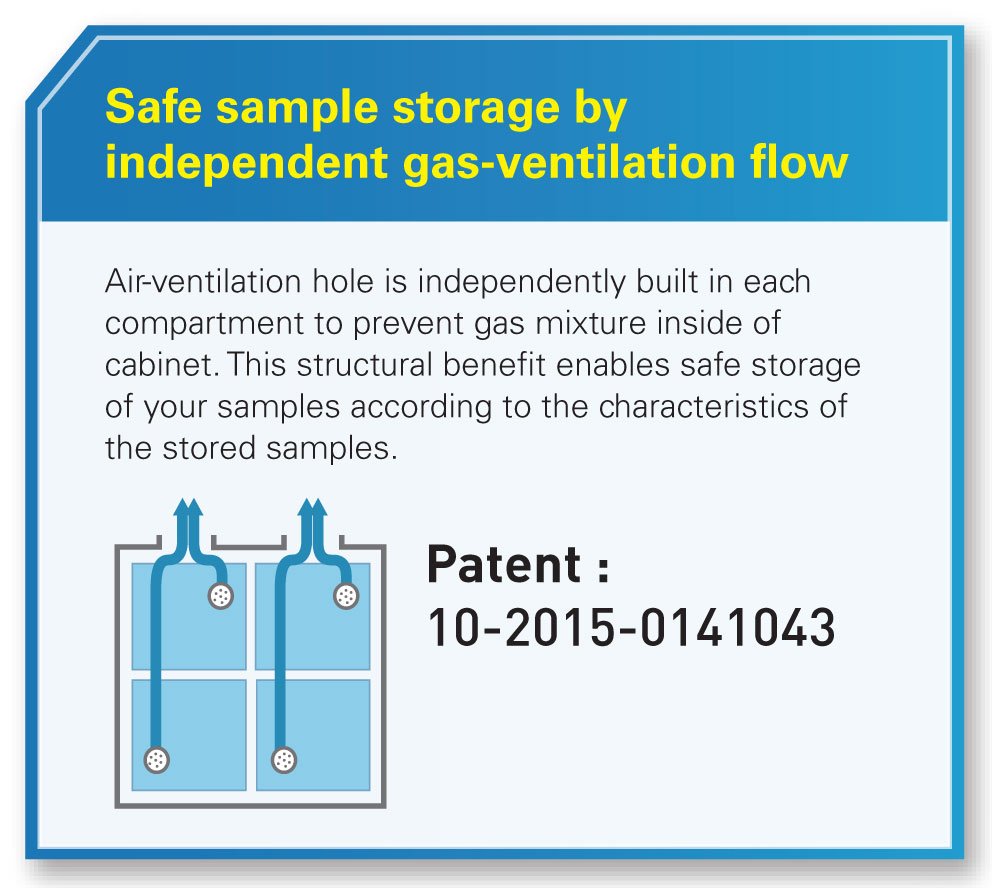

Convenient and safe ventilation system.

  • Built-in ventilation hole.
    - Ventilation hole on the top and exhaust holes at the back prevent the accumulation of explosive gas.
  • Exhaust system connection.
    - Cabinet can be connected to an in-house laboratory exhaust system to efficiently exhaust the vapor inside of the cabinet. (except for SC-C0706D1)

Safe storage of corrosive substances.

  • Corrosion-resistant interior material.
    - Phenol resin coated panel is suitable for long-term storage of acid / base substance.
  • Robust metal structure.
    - Sturdy steel frame prevents deformation.
    - Epoxy coated surface provides excellent chemical resistance.
  • Space-efficient interior design.
    - Internal compartment structure is beneficial for practical and safe space use by organizing the inner space efficiently according to the characteristics of the stored samples. (except for SC-C0706D1)

Sturdy and secure shelf structure.

  • Sturdy shelf structure.
    - Max. 80kg heavy load sustainable shelf.
    - Designed to perfectly fastened to both walls.
  • Safe shelf design.
    - Shelf with the height of 30mm blocks spreading leakage from accidental sample spillage.
  • Optimum shelf selection according to the stored samples.
    - The unit comes together with epoxy powder coated steel shelves and polypropylene spill tray for high chemical resistance.(except for SC-C0706D1)
  • 제목-없음-1.jpg
    Extraction module (optional)
  • Built-in door lock for safe sample storage.

  • Antistatic ground connection for minimization of fire hazard.

  • Ergonomic designed toe space allows for easy access to the inner space.

  • Specially designed forklift space and leveling feet for easy and stable installation.

  • Easy arrangement and finding of each sample with pictogram sticker.

  • Spill tray (polypropylene)
    (except for SC-C0706D1)

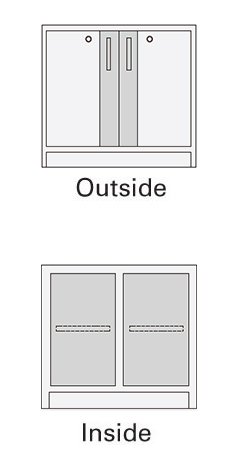

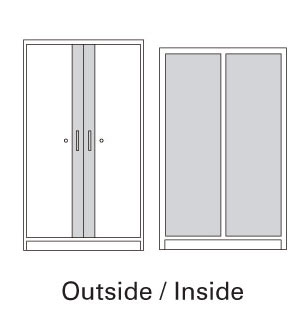

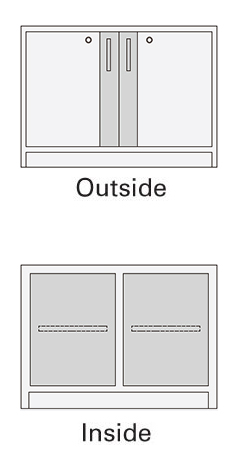

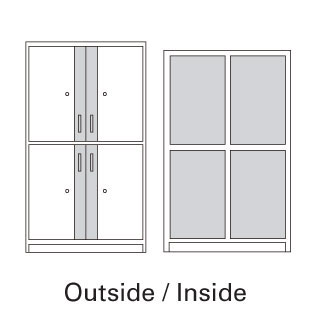

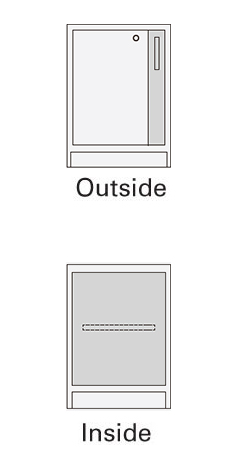

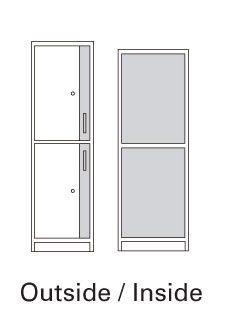

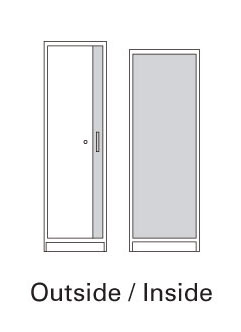

Model SC-C1912D4 SC-C1912D2 SC-C1906D2 SC-C1906D1 SC-C0706D1 1)
Internal volume (L / cu ft) 213 / 7.5 x 4ea 447 / 15.9 x 2ea 213 / 7.5 x 2ea 445 / 15.7 115 /  4.1
No. of spill tray (standard) 4 2 2 1 -
No. of shelf (standard / max.) 4 / 8 6 / 12 2 / 4 3 / 6 -
Distance of between shelf(mm / inch) 120 / 4.7 100 / 3.9 130 / 5.1 100 / 3.9 -
Max. load per shelf (kg / lbs) 80 / 176.4
Materials Interior Epoxy powder coated steel
Exterior Phenol resin coated steel
Dimension(W×D×H)

Interior

(mm / inch)

561x466x818 x 4ea

/ 22.1x18.3x32.2 x 4ea

561x466x1712 x 2ea

/ 22.1x18.3x67.4 x 2ea

561x466x818 x 2ea

/ 22.1x18.3x32.2 x 2ea

558x466x1712

/ 21.9xx18.3x67.4

505x421x542

/ 19.9x16.6x21.3

Exterior

(mm / inch)

1255x555x1900

/ 49.4x21.9x74.8

1255x555x1900

/ 49.4x21.9x74.8

655x555x1900/ 25.8x21.9x74.8 655x555x1900/ 25.8x21.9x74.8

600x510x650

/ 23.6x20.1x25.6

Shelf

555x426x30

/ 21.9x16.8x1.2

-
Bottom collecting sump -

502x420x40

/ 19.8x16.5x1.6

Tray (PP) 545x419x33 / 21.5x16.5x1.3 -

Net weight

(kg / lbs)

284 / 626.1 257 / 566.6 160 / 352.7 146 / 321.9 52 / 114.6
Cat. No. AAAF60043 AAAF60025 AAAF60023 AAAF60011 AAAF60012

1) No shelf and spill tray for SC-C0706D1. Sample is directly stored on the bottom collecting sump. (max. load 80kg)
※ It is recommended to use with an in-house ventilation system to efficiently exhaust the vapor inside of the cabinet.
Using it alone may cause product durability affected from inflammable vapor stayed inside during acid/corrosive sample storage.

Extraction module  (pre filter built-in)
Cabinet with ventilation hole can be a (ductless) filtering storage cabinet after installing this extraction module. Add suitable filters for efficient vapor extraction.
Cat. No. Description Suitable for
AAAF3536

EM-33, Extraction module (pre filter built in) 1)

(230V, 60Hz) (348x498x343mm / 13.7x19.6x13.5inch)

SC-C1912D4, SC-C1912D2,

SC-C1906D2, SC-C1906D1

AAAF15362

Plinth 2) for extraction module (EM-33)

(825x480x50mm / 32.5x18.9x2inch)

SC-C1912D4, SC-C1912D2

Cat. No. Description Application
AAAB6360 Pre filter Larger particles and increasing the life of  main filter
AAAB6353  HEPA filter

 Biohazardous aerosols and other visible and

nonvisible particles (filtration efficiency: 99.99% at 0.3 microns)

AAAB6353  Complex carbon filter (VOC + NH3 + Acid)

Volatile organic compounds (VOC), Ammonia,

 Acidic solvents1) (MA), Alkaline solvents (MB)

AAAB6356   Acid carbon filter 3) An acidic solvent ; Acetic acid, etc
AAAB6358  Formaldehyde carbon filter Formadehyde applications
AAAB6359  Ammonia / Amines carbon filter Ammonia/Amines by chemisorptions

1) Maximum installable filter quantity: 2 ea.
2) In case of cabinet with two ventilation holes on the top (SC-C1912D4, SC-C1912D2),

plinth is required to order for connecting two holes into one. With use of plinth, you only need one extraction module (EM-33).

3) Please do not use high percentage of reactive acid such as perchloric acid.


Cat. No. Description Suitable for
SCF0037

Spill Tray (polypropylene)

(545x419x33mm / 21.5x16.5x1.3inch)

SC-C1912D4, SC-C1912D2,

SC-C1906D2, SC-C1906D1

CBN0010

Spill Tray (polypropylene)

(470x370x100mm / 18.5x14.6x3.9inch)

SC-C0706D1
AAAF65302

Shelf (Melamine faced board)

(552x424x18 mm / 21.7x16.7x0.7inch)

SC-C1912D4, SC-C1912D2,

SC-C1906D2, SC-C1906D1
