Plastic ware & Others

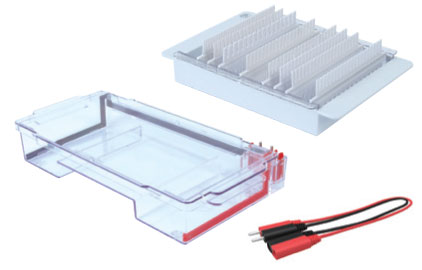

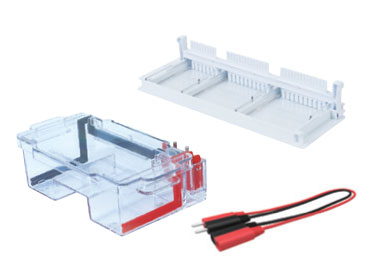

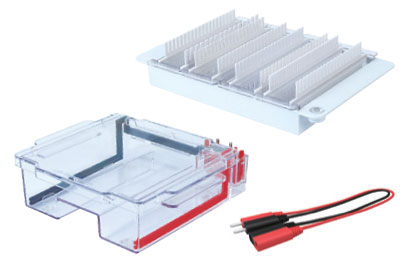

Electrophoresis Systems

Three systems for different sized gels, satisfying your need for a more detailed DNA/RNA analysis.

With power supply

Model Name : EP-05/10/18

BROCHUREURL COPYInquiry Form

Performance & Convenience

  • The electrophoresis system is a molded transparent polycarbonate product with superior shock-resistance, transparent, and durability to acrylic adhesives.
  • Detachable electrode assembly allows for easy cleaning and maintenance.
  • Each unit comes with one banana cable. Black & red cables are coupled together and can be inserted or extracted at the same time.
  • UV-transparent gel trays allow for viewing bands on the UV-transilluminator without removing gel tray.
  • Diverse-sized molded gel trays and casters for leak-free casting
    - EP-5 : 82x81mm (1ea) and 82x58mm (2ea) gel trays with one comb position.
    - EP-10 : 181x103mm (2ea) gel trays with max. four comb positions.
    - EP-18 : 181x206mm (1ea) gel tray with max. six comb positions.
  • Double-sided combs are provided depending on each model.
    - EP-5 : 1mm thick 27-and 40-well comb (1ea)
    - EP-10, 18 : 1.5mm thick 20-and 31-well comb (2ea),
                         1mm thick 20-and 31-well comb (2ea),
                         1.5mm thick 16-and 20-well comb (2ea),
                         1mm thick 16-and 20-well comb (2ea),
                         1.5mm thick 25-and 34-well comb (2ea),
                         1mm thick 25-and 34-well comb (2ea)
  • 31-well comb and 16-well comb for matching multichannel pipettes. Suitable for large amounts of sample screening- up to 186 samples at once using 6 combs in EP-18 gel tray.
  • Comb-setting grooves in gel trays or caster prevents sliding of combs.
  • Adjustable gel length.
  • Flat, uniformly thick gels are formed by built in level maker on the gel tray and level bubble on the gel castor.

Product composition

Model EP-05 EP-10 EP-18

Electrophoresis Unit

(Tank & Lid, Electrode, Power Cord)

 1 set 1 set 1 set
Gel Caster 1 ea 1 ea 1 ea
Gel Tray 3 ea 2 ea 1 ea
Comb 27/40 well (1.0 mm) x 1ea 20/31 well (1.0 mm) x 2ea
20/31 well (1.5 mm) x 2ea
16/20 well (1.0 mm) x 2ea
16/20 well (1.5 mm) x 2ea
25/34 well (1.0 mm) x 2ea
25/34 well (1.5 mm) x 2ea

20/31 well (1.0 mm) x 2ea
20/31 well (1.5 mm) x 2ea
16/20 well (1.0 mm) x 2ea
16/20 well (1.5 mm) x 2ea
25/34 well (1.0 mm) x 2ea
25/34 well (1.5 mm) x 2ea



Specification

Model EP-05 EP-10 EP-18

Buffer capacity (L / cu ft)

0.5  / 0.02

1.0 / 0.04

1.8 / 0.07

Material

Tank, Lid, Gel tray, Gel caster

PC (polycarbonate)

Comb

ABS (acrylonitrile-butadienestyrene)

Electrode

Platinum wire

Dimension

Electrophoresis tank(mm / inch)

219x134x70 / 8.6x5.3x2.8

219x214x70 / 8.6x8.4x2.8

387x214x70 / 15.2x8.4x2.8

Gel caster (W×D×H) (mm / inch)

254x87x17 / 10x3.4x0.7

167x264x30 / 6.6x10.4x1.2

167x264x30 / 6.6x10.4x1.2

Gel tray (W×D×H) (mm / inch)

82x81x17 / 3.2x3.2x0.7

180x102x29 / 7.1x4.0x1.1

180x205x29 / 7.1x8.1x1.1

82x57x17 / 3.2x2.2x0.7

Comb (W×D) (mm / inch)

225x45 / 8.9x1.8

158x46 / 6.2x1.8

158x46 / 6.2x1.8

Net weight (Kg / lbs) 1)

0.39 / 0.86

0.60 / 1.32

0.93 / 2.05

Cat. No. AAAJ6011 AAAJ6021 AAAJ6031

1) Electrophoresis unit's weight
* Included Electrophoresis unit, Gel caster unit, Comb in one system. (power supply is not included)

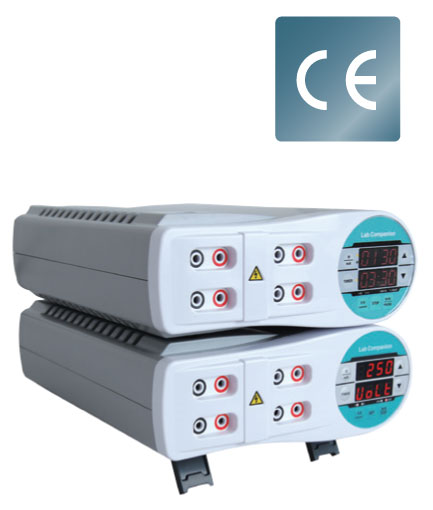

Power supply

  • Four pairs of outlet terminals enable running 4 cells simultaneously.
  • Folding front legs obtain wider viewing angle.
  • Compact and stackable design.
  • EPS-300 comes with one banana cable together.

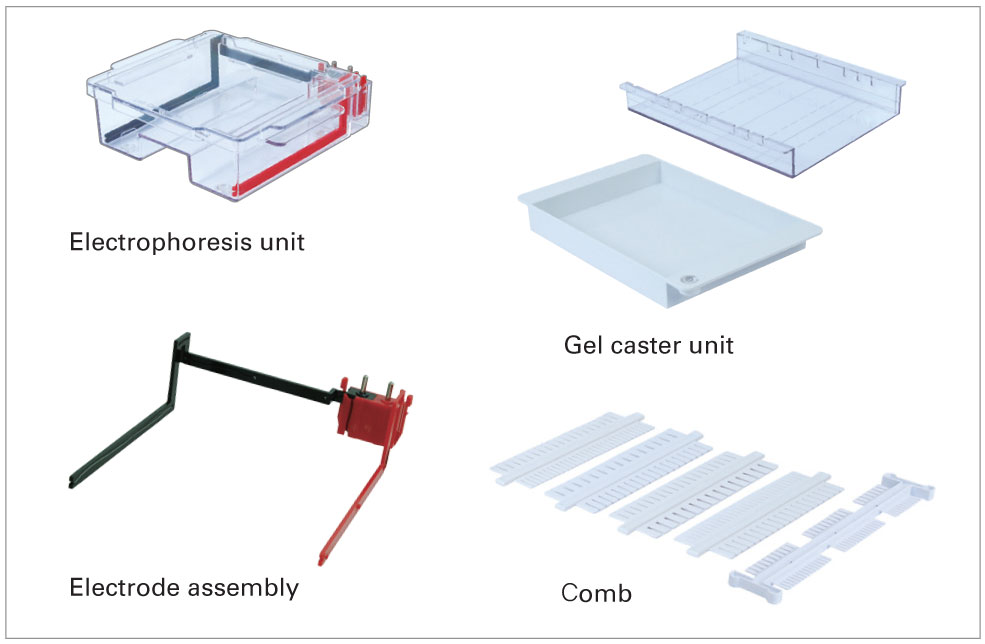

Cat. No. Description Suitable for
AAAJ6501 Electrophoresis unit(tank, lid, electrode assembly) EP-05
AAAJ6502 Electrophoresis unit(tank, lid, electrode assembly) EP-10
AAAJ6503 Electrophoresis unit(tank, lid, electrode assembly) EP-18
AAAJ6511 Gel caster unit (gel caster/tray) EP-05
AAAJ6512 Gel caster unit (gel caster/tray) EP-10
AAAJ6513 Gel caster unit (gel caster/tray) EP-18
AAAJ6521 Electrode assembly EP-05
AAAJ6522 Electrode assembly EP-10
AAAJ6523 Electrode assembly EP-18
AAAJ6531 Comb 27/40 well, thickness 1.0mm (5ea) EP-05
AAAJ6536 Comb 25/34 welll, thickness 1.0mm (5ea) EP-10/18
AAAJ6537 Comb 25/34 well, thickness 1.5mm (5ea)
AAAJ6532 Comb 20/31 well, thickness 1.0mm (5ea)
AAAJ6533 Comb 20/31 well, thickness 1.5mm (5ea)
AAAJ6534 Comb 16/20 well, thickness 1.0mm (5ea)
AAAJ6535 Comb 16/20 well, thickness 1.5mm (5ea)
Model EPS-300
Output range 5–250 V, fully adjustable in 1 V steps 20mA–3000mA, fully adjustable in 10mA steps Max. 300 W
Type of output Constant voltage, Constant current
Output terminals 4pair recessed banana jack in parallel
Timer 1min to 99hr 59min, Continuous(elapsed time display)
Pause/Resume function Yes
Display 7-segment 4 digit LED, 2 line
Safety features No-load detection, Rapid resistance change detection, Ground leak detection, Over current protection, Overvoltage protection, Overpower protection, Over temperature protection
Dimensions(WxDxH) (mm / inch) 230x307x92 / 9.1x12.1x3.6
Material ABS
Net weight (Kg / lbs) 2.5 / 5.5
Electrical requirements AC 100 to 240V, 50/60Hz
Power consumption 4.0A at 100V, 1.7A at 240V(max voltage & max power)
Cat. No. AAAH6541
