Plastic ware & Others

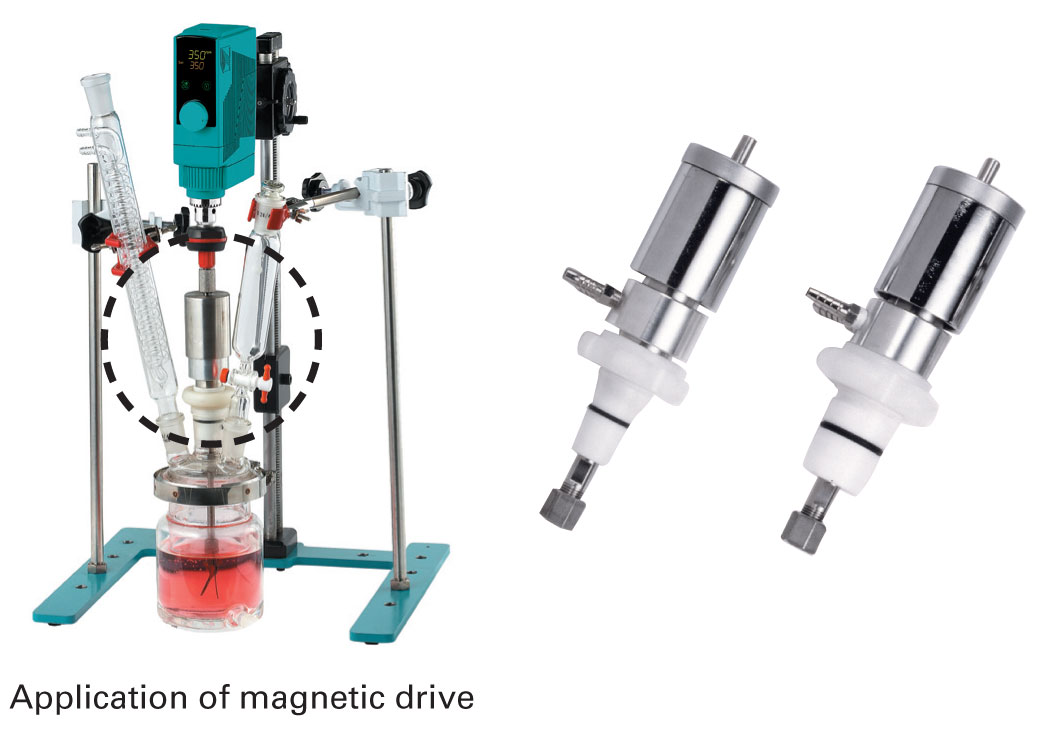

Magnetic Drives

Model Name : MT-T6-24/29/34

  • Magnetic drives are designed for agitating a fully vacuumed flask. Multi-functional easy to replace impeller.
  • Use of rare-earth elements which is Neodymium (Nd), Samarium (Sm-Co) magnet.
  • High-speed rpm, vibration free.
  • Specifically designed with permanent magnets which has a dynamic torque rating.
  • Small size and powerful rotating magnetic drive is useful both for laboratory and manufacturing applications.
Model MD-T6-24 MD-T6-29 MD-T6-34

Ground joint

24 / 40

29 / 42

34 / 45

Material

Body / Housing

SUS316L / CR-PLATE

Bushing / Seal

PTFE / Viton

Driving

Vacuum

Max. 1×10-4 mmHg

Pressure

Max. 5kg / cm2

Temp

Max. 70℃ (without cooling), Max. 300℃ (with cooling)

Shaft dia. (Ø, mm / inch)

8 / 5/16

Cooling in/out dia. (Ø, mm / inch)

3.2 / 1/8

Dimension (Ø×L, mm / inch)

50×200 / 2x7.9

Net weight (kg / lbs)

1.02 / 2.25

1.04 / 2.29

1.08 / 2.38

Cat. No. BEA511001 BEA511002 BEA511003
