Fume Hoods

Clean Benches(Advanced)

Vertical laminar flow clean benches with advanced digital control and various convenient features.

With optional stand, Hapa filter and gas cock

Model Name : BC-01H/11H/21H


  • Interlocking smart door system (patent pending)

Performance

  • ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
  • 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10. (US Federal Standard 209E)
    (average life span of HEPA filter: 3 years – it depends on the test room conditions) (optional)
  • High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
  • Digital airflow rate sensor (microprocessor) for automated airflow speed control.
    - Offers continual airflow speed of same velocity and extends the HEPA filter life span.

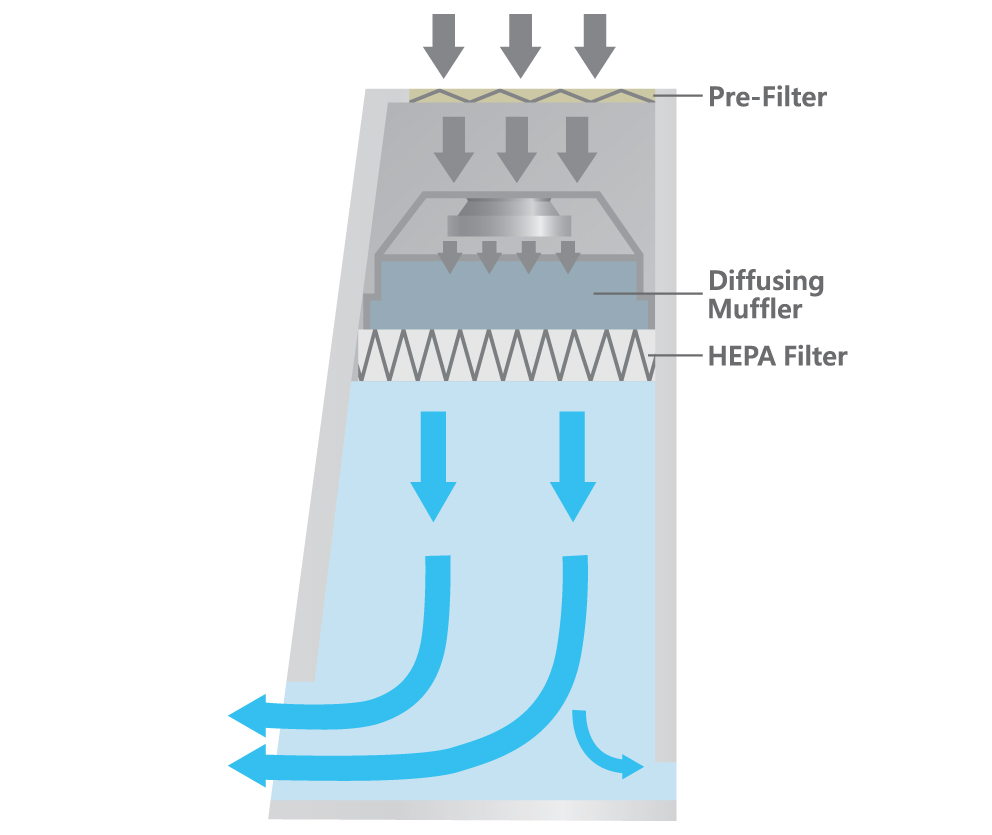

  • Exclusive diffusing muffler structure forms high quality laminar flow.
  • Quiet and comfortable working environment. (less than 65dB)

Convenience

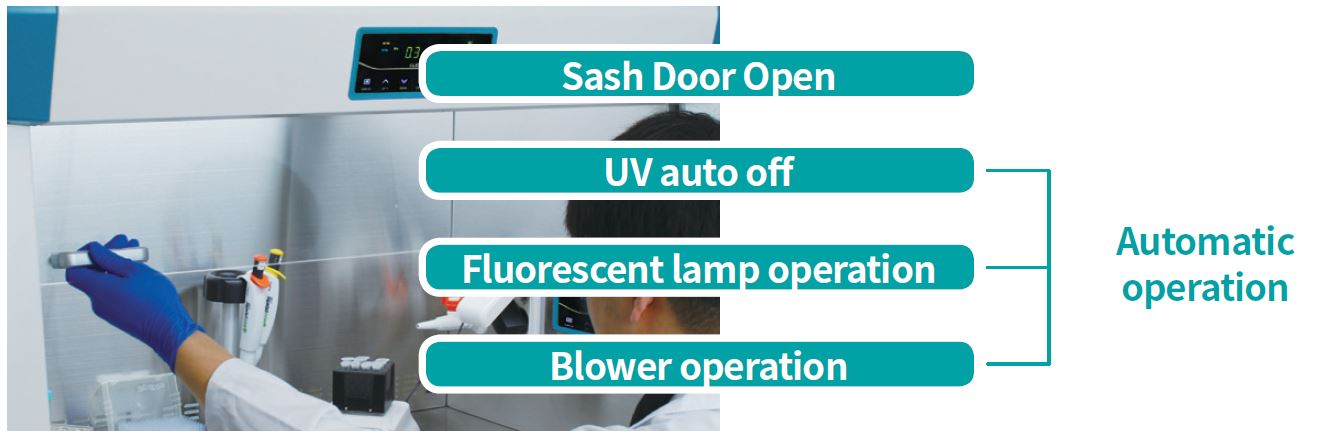

  • • Interlocking smart door system
    - Simply open the door while UV-lamp is on. Interlocking smart door system will automatically turn off UV-lamp, turn on fluorescent lamp and blower instead of your manual control.
  • Two digital displays for the best convenience.
    - Even if any test is ongoing inside of the chamber, unit conditions such as velocity, temperature and humidity can be easily checked by the inner and outside displays.
  • Digital differential pressure sensor allows for easy verification of HEPA filter condition great for knowing when to change HEPA filter.
  • When UV light intensity is lower than 80%, UV warning lamp is automatically on to let users know when to change UV-lamp.
  • Comfortable front access to cartridge type of filters for easy replacement.
  • Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
  • The inner left side magnetic board allows some memos and small tools.

Safety

  • UV-blocking and impact-resistant tempered glass door.
  • If the sash is opened more than the recommended sash height level, during operation, warning alarm will activate and alarm users to lower the window to the recommended sash level to prevent contamination of samples.
  • If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
  • Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
  • Protection against over-current
Model BC-01H BC-11H BC-21H

Air flow type

Vertical laminar flow

Air volume (minimum / maximum)

0 to 1020 cmh / 0 to 600 cfm

0 to 2040 cmh / 0 to 1200 cfm

Laminar airflow velocity (m / s / fpm)

0.3 / 59

0.45 / 89

0.3 / 59

Air cleanliness within work space

ISO 14644-1 class 4, US Federal Standard 209E class 10

Filters

HEPA filter

Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282)

; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets

Pre filter

Polyester fibers with an filter efficiency of 85% (A·F·I TEST)

; Aluminum frame, Polyester fiber media

Noise level

Typically < 65dB at blower speed

Materials

Main body

Steel powder coating

Work surface

Stainless steel grade 304, Hairline treatment

Windows (front / side)

Colorless and transparent UV absorbing 5mm tempered glass

Illumination

Intensity (lux)

> 650

Fluorescent lamp (W)

30 x 2ea

32 x 2ea

Electronically ballasted Fluorescent Lamp

UV lamp (W)

25 x 1ea

30 x 1ea

25 x 2ea

Electronically ballasted UV Lamp

Electric socket outlets

230V socket

Dimension (W×D×H)

Interior (mm / inch)

945×570×670/

 37.2×22.4×26.4

1245×570×670/

 49.0×22.4×26.4

1845×570×670/

 72.6×22.4×26.4

Exterior without stand (mm / inch)

1135×647×1150/

 44.7×25.5×45.3

1435×647×1150/

 56.5×25.5×45.3

2035×647×1150/

 80.1×25.5×45.3

Exterior with stand (mm / inch)

1135×647×1870/

 44.7×25.5×73.6

1435×647×1870/

 56.5×25.5×73.6

2035×647×1870/

 80.1×25.5×73.6

Net weight (body) (kg / lbs)

140 / 308.6

185 /407.9

225 / 496

Net weight (body + stand) (kg / lbs)

170 / 374.8

215 / 474

255 / 562.2

Electrical requirements (230V, 1ph)

60Hz / 1.25 A 50Hz / 1.38 A 60Hz / 1.57 A 50Hz / 1.73 A 60Hz / 2.09 A 50Hz / 2.30 A

Cat. No.

AAHA5011K AAHA5012K AAHA5021K AAHA5022K AAHA5031K AAHA5032K

Electrical requirements (120V, 1ph)

60Hz / 2.62 A 60Hz / 3.27 A 60Hz / 4.36 A

Cat. No.

AAHA5013U AAHA5023U AAHA5033U
  • HEPA filter
    - 99.99% efficient HEPA filter, industry standard size for economical replacement.

  • Stand with casters
    - Stand with casters : Mobile stand made of powder-coated steel ideal for easy relocation.

  • Pre filter
    - Easy-to-replace pre-filter for trapping larger particles and extending the life of HEPA filters.

Filters

Cat. No. Description BC-01H/B BC-11H/B BC-21H/B
AAAB1601 HEPA filter - -
AAAB1602 - -
AAAB1603 - -
AAAB1611 Pre filter - -
AAAB1612 - -
AAAB1613 - -

Others

Cat. No. Description BC-01H/B BC-11H/B BC-21H/B
AAAB1621 Stand with casters - -
AAAB1622 - -
AAAB1623 - -
AAAB1631 UV lamp (230V) - -
AAAB1633 - -
AAAB1635 - -
AAAB1632 UV lamp (120V) - -
AAAB1634 - -
AAAB1636 -
AAAB1561 Gas cock
AAAB1571 Differential pressure gauge
(for BC-B)
