Refrigerators & Freezers

Laboratory Refrigerator (CLG3-70)

Excellent structure to meet stringent overseas specifications

Model Name : CLG3-70

Structural functional features

  • Stable temperature control with excellent insulation and sealing structure.
  • Clean construction with no condensation on outer walls.
  • Interior has excellent corrosion resistance as made of stainless steel.
  • Magnetic packing door with smooth opening and closing.
  • Casters for easy movement / installation. (except for 150 model)
  • Space-efficient configuration with double stackable. (for 150 model)
  • Auto defrost function eliminates the need for separate defrosting.

Use Convenience Features

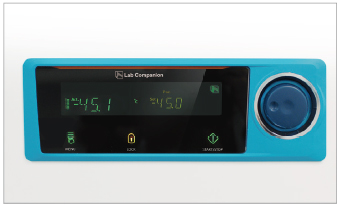

  • Stable control with JEIO TECH's exclusive controller.
  • Easy to use with Clear VFD and Touch Key.
  • Simultaneously displays set temperature and actual temperature.
  • Calibration function minimizes temperature difference.
  • Height-adjustable and strong shelf provided as standard.
  • Built-in fluorescent lamps. (except for 150 model)
  • Glass door model for easy storage status checking.
  • Convenient connecting external devices through Ø50 mm cable port. (optional) (except for 70,150 model)

Outstanding Safety

  • The 850 and 1400 model are equipped with two refrigeration systems to maintain temperature even in the event of a single refrigeration system failure.
  • Temperature deviation notification. (Hi & Low Temperature)
  • Malfunction prevented by controller lock function.
  • Door lock with key as standard.
  • Enhanced security with digital door lock. (CLG3)

Satisfies the requirements for safe cold storage of pharmaceuticals

  • Temperature fluctuation and variation meets the requirements of ICH Guideline Q1A. (R2)
  • Stable temperature control for long-term operation.

Accessories provided for convenient use

  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.
    (when purchased LC GreenBox, CLG3-70 Only)
  • Voice alarm system transmits voice messages to designated phone if there is an abnormality in operation (optional).
  • Convenient use with drawer type shelf (optional).
  • Selection of various temperature recorders. (optional) (Dot, Chart, Thermal Line)
  • Intuitive checking of device operation information with large VFD.

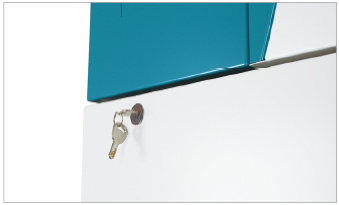

  • Door Key Lock

  • Drawer Shelf

  • Wire Shelf

  • Digital door lock (CLG3 model)

Model CLG3-70 CLG-150 CLG-300 CLG-650 CLG-850 CLG-1400
Temperature range (℃ / ℉) 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50
Chamber volume (L / cu ft) 73 / 2.6 156 / 5.5 303 / 10.7 603 / 21.3 805 / 28.4 1327 / 46.9
Dimension
Interior (W x D x H, mm / inch) 418 x 440 x 400
/ 16.5 x 17.3 x 15.7
550×580×490 / 21.7×22.8×19.3 550x550x1000 / 21.7×21.7×39.4 650x640x1450 / 25.6×25.2×57.1 750x740x1450 / 29.5×29.1×57.1 1430x640x1450 / 56.3×25.2×57.1
Exterior (W x D x H, mm / inch) 522 x 600 x 725
/ 20.6 x 23.6 x 28.5
683×791×870 / 26.9×31.1×34.4 670x770x1515 / 26.4×30.3×59.6 770x865x1965 / 30.3×34.1×77.4 870x965x1965 / 34.3×37.9×77.4 1550x865x1965 / 61×34.1×77.4
Net weight (kg / Ibs) 67 / 147.7 100 / 220.5 130 / 286.6 210 / 463 260 / 573.2 350 / 771.6
Shelf
Quantity of wire shelf (standard / max.) 2 / 3 2 / 6 3 / 11 3 / 17 3 / 17 6 / 34
Quantity of wire shelf (slide) (max.) 3 4 7 11 11 22

Quantity of drawer shelf (slide) (max.)

2 3 5 8 8 16

Load per shelf (kg / lbs)

30 / 66.1

26 / 57.3

30 / 66.1

Fluorescent lamp

4.2W, 1ea

- 18W, 1ea

18W, 1ea

32W, 1ea 32W, 1ea
Electrical requirements (230V, 60Hz) 1.1A 2A 2.3 A 4A 5A 6A
Cat. No. Solid door - AAHE1001K AAHE1011K AAHE1021K AAHE1031K AAHE1041K
Glass door AAHE1301K AAHE1101K AAHE1111K AAHE1121K AAHE1131K AAHE1141K
Electrical requirements (230V, 50Hz) 1.1A 2A 2.3 A 4A 5A 6A
Cat. No. Solid door - AAHE1002K AAHE1012K AAHE1022K AAHE1032K AAHE1042K
Glass door AAHE1302K AAHE1102K AAHE1112K AAHE1122K AAHE1132K AAHE1142K
Electrical requirements (120V, 60Hz) 2.9A 4A 4.5 A 6.5 A 9A 13A
Cat. No. Solid door - AAHE1003U AAHE1013U AAHE1023U AAHE1033U AAHE1043U
Glass door AAHE1303U AAHE1103U AAHE1113U AAHE1123U AAHE1133U AAHE1143U
  • Wire Shelf
    Provides uniform temperature conditions throughout the storage area thanks to space between wires.

  • Remote Alarm
    When a device malfunctions, a voice message is transmitted to the users.

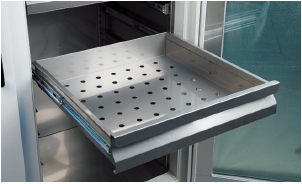

  • Drawer Shelf (Slide)
    The drawer shelf of a rigid steel plate makes easy to handle storage inside.

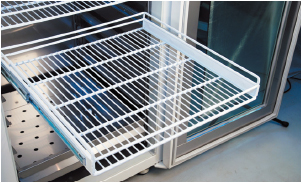

  • Wire Shelf (Slide)
    Wire type with good airflow, and convenient to use as drawer type.

  • Recorder with Sensor (Chart)

    24/7 circular chart recorder.
    Easy replacement of the recording paper.
    Independent sensor that are separate from the product.

  • Recorder with Sensor (Thermal Line)

    Graph/Digital mode.
    Thermal-type temperature recorder.
    Independent sensor that are separate from the product.

  • Recorder with Sensor (Dot)

    Up to 6 cha nnels supported.
    Set recording range and speed.
    Paper width: 1000mm.
    Independent sensor that are separate from the product.

  • Stand with Caster

    Convenient use of small devices.
    Easy to move/fix with casters.

  • Electric Socket

    Power supply for A C 230V.
    Includes cover as standard.



for Laboratory Cooling

Model Standard Optional
Wire Shelf Drawer
Shelf
(Slide)
Recorder
(Chart)
Remote
Alarm
Wire Shelf
(Slide)
Drawer Shelf
(Slide)
Recorder
(Chart)
Recorder
(Dot)
Recorder
(Thermal
line)
Electric
Socket
Stand
with Caster
Remote
Alarm
CLG3-70 AAAE15081 N/A N/A N/A AAAE15091 AAAE151011) N/A N/A AAAE15631 N/A N/A AAAE15511
CLG-150 AAAE1511 N/A N/A N/A AAAE1514 AAAE1517 N/A AAAE1562 AAAE1503 N/A AAAE1542 AAAE1551
CLG-300 AAAE1511 N/A N/A N/A AAAE1514 AAAE1517 AAAE1501 AAAE1562 AAAE1503 AAAE1532 N/A AAAE1551
CLG-650 AAAE1512 N/A N/A N/A AAAE1515 AAAE1518 AAAE1501 AAAE1562 AAAE1503 AAAE1532 N/A AAAE1551
CLG-850 AAAE1513 N/A N/A N/A AAAE1516 AAAE1519 AAAE1501 AAAE1562 AAAE1503 AAAE1532 N/A AAAE1551
CLG-1400 AAAE1512 N/A N/A N/A AAAE1515 AAAE1518 AAAE1501 AAAE1562 AAAE1503 AAAE1532 N/A AAAE1551

1) CLG3-70, PSR3-70에 장착되는 Drawer Shelf는 디지털 개폐형 (AAAE15101), 열쇠 개폐형 (AAAE15102), 오픈형 (AAAE15103)이 있음

Cryo box / Storage box

Cryo box is designed for ultra-low temperature storage of biological materials. (heat resistance : -196°C to 121°C)
Storage box is suitable for storage of samples in general conditions. (heat resistance: 20°C to 121°C)

  • Cryo box

    Excellent durability even at ultra-low temperature with stable PC material.
    Easily distinguish samples with numbers on the covers.
    Cover, tray and dividers are separated for easy cleaning.
    Pressurized sterilization possible (autoclavable).

  • Storage box

    Excellent chemical resistance due to polypropylene material.
    The circular grooves at the bottom ensure stable mounting of tubes.
    Easy to separate samples with numbers and letters on covers.
    Pressurized sterilization possible (autoclavable).

Model CRB-25 CRB-81S CRB-81T
Tube size (ml) 1.2 to 2.0 1.2 to 2.0 5
Max. Mountable tube 25 (5 x 5) 81 (9 x 9) 91 (9 x 9)
Dimension
(W xD x H, mm / inch)
77 x 77 x 53
/ 3 x 3 x 2.1
132 x 132 x 54
/ 5.2 x 5.2 x 2.1
132 x 132 x 96
/ 5.2 x 5.2 x 3.8
Cat. No. AAAJ7001 AAAJ7002 AAAJ7003
Model SRB-100
Tube size (ml) 1.2 to 2.0
Max. Mountable tube 100 (10 x 10)
Dimension
(W xD x H, mm / inch)
140 x 140 x 53
/ 5.5 x 5.5 x 2.1
Cat. No. AAAJ7011

Accessories for CLG3-70 / PSR3-70

LC GreenBox

Real-time monitoring of equipment connected to LC Connected possible through the dedicated mobile application for Lab Companion.
(Supported from Android 6.0 Marshmallow version and above. iOS devices to be supported in the future)
Each lab member can access connected devices for which they have access permission through their personal mobile app.
One LC GreenBox can communicate with up to four Lab Companion devices via an RS-232 port and can be expanded via multiple LC GreenBoxes.
Access to the Cloud Server via Wi-Fi or wired LAN allows for a high degree of freedom in the lab.
Real-time alarms for events concerning connected equipment
(temperature deviation, long-term door opening, power failure, and etc.)


Cat. No. Description Dimension (W x D x H, mm / inch)
AAAQ1011 Mobile monitoring system 156 x 94 x 34 / 6.1 x 3.7 x 1.3



Battery

Activate/deactivate battery via settings.
When the setting of ba ttery is ON, a warning alarm occurs if the power is turned off during opera tion.
The recorder also records power failure events.


Cat. No. Description
AAAE15301 Battery
