Storages

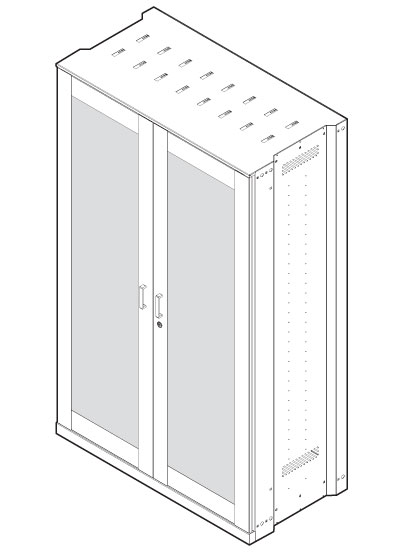

Open Window Type Cabinets

Tempered glass cabinet door allow for easy viewing.

Model Name : DS-OW Series

The fully extendable drawers can be accessed from either left or right side of the cabinets.
Hidden wheels under the lower drawer for DS-SL and DS-S models easily support 60kg.
Connect multiple cabinets side by side to make the cabinets sturdy and balanced.
The air and vapor vented through both sides of the cabinet vent slits.
The removable name plates come included for keeping track of inventory.
Adjustable bracket mounts in the cabinet, designed for placing PP trays at any height.
- 8 different tray dimensions.
- Impact resistant, durable, and excellent chemical resistance rating
- Adjustable trays can be placed at different heights.
- The tray divider keeps stuff tidy and organized.
Four anchors are provided for ensuring the cabinet safely fixed on the floor.
Cat. No. Description
CBN0036 Anchor
DS-OW
Exterior height (mm / inch) 1800 / 70.9 1800 / 70.9 1800 / 70.9 1800 / 70.9
Exterior width (mm / inch) 472 / 18.6 556 / 21.9 915 / 36.0 1083 / 42.6

Each drawer width (mm / inch)

418 / 16.5 502 / 19.8 418 / 16.5 502 / 19.8

No. of tray (standard / max.)

6 / 11 6 / 11 12 / 22 12 / 22

Max. load per tray (kg / lbs)

30 / 66.1 30 / 66.1 30 / 66.1 30 / 66.1
No. of name plate 6 6 12 12
Exterior depth (mm / inch) 550 / 21.6 550 / 21.6 550 / 21.6 550 / 21.6
Net weight (kg / lbs) 124 / 273.4 137 / 302.0 146 / 321.9 172 / 379.2
Model

DS-OW-

18047N1

DS-OW-

18055N1

DS-OW-

18091N2

DS-OW-

18108N2

Cat. No. AAAF1050 AAAF1051 AAAF1052 AAAF1053
Cat. No. Description Suitable for
AAAF1501 Drawer set (epoxy painted steel, 388×504mm / 15.3×19.8") DS-OW- 18047N1, 18091N2
AAAF1502 Drawer set (epoxy painted steel, 472×504mm / 18.6×19.8") 18055N1, 18108N2
AAAF1504 Drawer set (stainless steel, 388×504mm / 15.3×19.8") 18047N1, 18091N2
AAAF1505 Drawer set (stainless steel, 472×504mm / 18.6×9.8") 18055N1, 18108N2
AAAF1507 Drawer set (epoxy painted steel, 388×504mm / 15.3×19.8") DS-OR- 18047N1, 18091N2
AAAF1508 Drawer set (epoxy painted steel, 472×504mm / 18.6×19.8") 18055N1, 18108N2
AAAF1509 Drawer set (stainless steel, 388×504mm / 15.3×19.8") 18047N1, 18091N2
AAAF1510 Drawer set (stainless steel, 472×504mm / 18.6×9.8") 18055N1, 18108N2
CBN0018 Tray divider (370mm / 14.6" width) DS-OW- 18047N1, 18091N2
CBN0019 Tray divider (450mm / 17.7" width) 18055N1, 18108N2
CBN0018 Tray divider (370mm / 14.6" width) DS-OR- 18047N1, 18091N2
CBN0019 Tray divider (450mm / 17.7" width) 18055N1, 18108N2
AAAF1523 Name plate B1 (320×115mm / 12.6×4.5") DS-OW- 18047N1, 18055N1, 18091N2, 18108N2
