Ovens

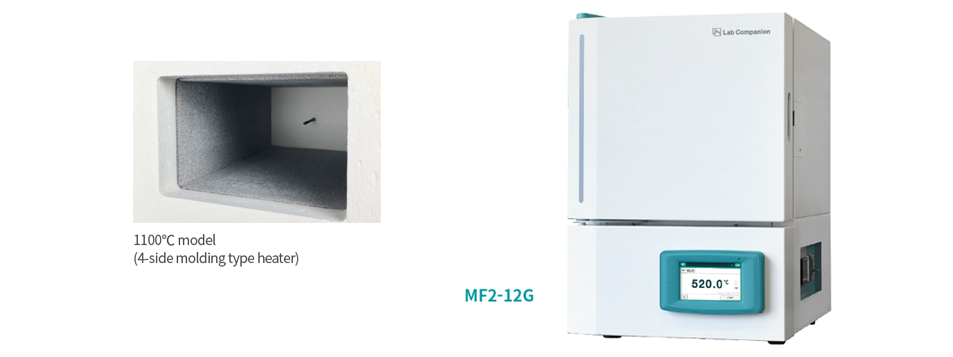

Muffle Furnace

Electric furnace for high temperature experiment at 1100 ℃ / 1500 ℃

Model Name : MF2-12G/GF, MF2-22G/GF, MF2-32G/GF
MF2-12H/HF, MF2-22H/HF, MF2-32H/HF

BROCHUREURL COPYInquiry Form

Enhanced user convenience of touch controller

  • Intuitive use with a large 5-inch TFT touch controller.
  • Auto 3 temperature recommendation based on operating history without any recording or storage.
  • Timer(wait on, wait off) and Ramp(temperature increase rate) function

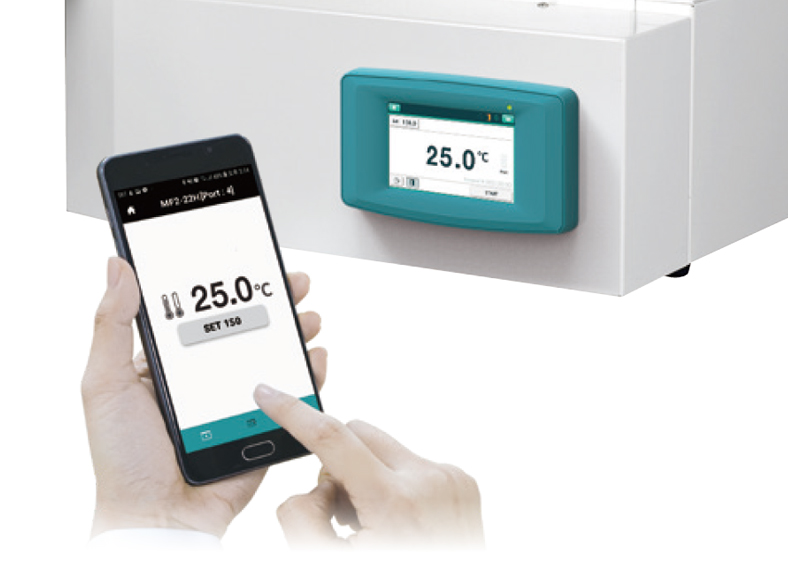

  • Monitor and control via a mobile app anytime, anywhere, with LC Connected. (Mobile monitoring system) (Option)
  • Recording the 36 most recent events, such as start/stop of operation and error occurrence.

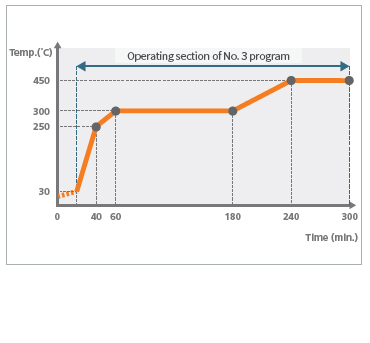

Easy program settings intuitively without a manual (MF2-G, MF2-H : program type only)

  • Available to set up to 10 programs and 10 steps.
  • Available to set up to 99 repetitions of program from 0.

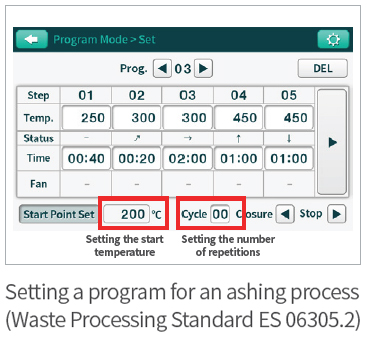

  • Function of setting the start temperature to begin an experiment at an accurate temperature the user wants.
  • Possible to skip to the next step or hold the current step during program operation.
  • Available to set a deviation of temperature or time to keep going a program operation even if the temperature is not reached to the target accurately.
  • A useful scheduler function available to select and schedule the desired day, time, and program for repetitive experimental settings.




Highly reliable temperature control performance

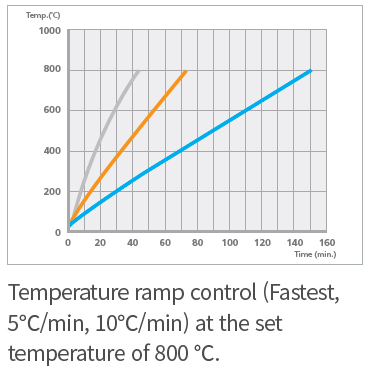

  • Possible to set the rate of temperature change (℃/min) (Ramp function) to control it.
  • Minimizes heat loss through the use of durable ceramic insulation materials.
  • Excellent interior sealability due to shock absorbers on the doors and a sturdy double-door structure.
  • Stable temperature control through digital PID control.

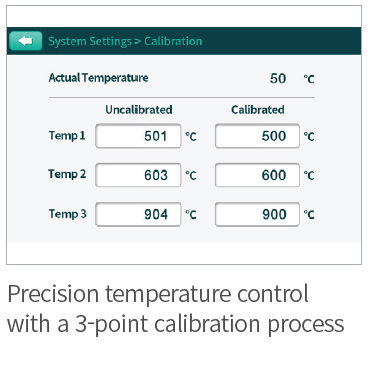

  • High-precision temperature control over a wide range of temperatures through a 3-point calibration process.




Various safety functions ensure user safety

  • A safety door lock function that opens only below the door lock temperature set by user.
  • A built-in electronic overheat protection system that prevents the equipment from being damaged due to overheating.
  • Front surface of the product is safe even when operating at the maximum temperature.
  • The equipment stops working when the door is opened for safe use.






Model Max. 1100℃ / 2012℉
 Max. 1500℃ / 2732℉
General Type   MF2-12GF MF2-22GF MF2-32GF  MF2-12HF   MF2-22HF MF2-32HF
 Program Type MF2-12G  MF2-22G  MF2-32G  MF2-12H  MF2-22H  MF2-32H
Chamber volume (L / cu ft) 3 / 0.11 4.5 / 0.16  12 / 0.42  3.2 / 0.11  4.5 / 0.16  12 / 0.42
Temperature Range (℃ / ℉) Amb. +15 to 1100
/ Amb. +27 to 2012		 Amb. +15 to 1100
/ Amb. +27 to 2012		 Amb. +15 to 1100
/ Amb. +27 to 2012		 Amb. +15 to 1500
/ Amb. +27 to 2732		  Amb. +15 to 1500
/ Amb. +27 to 2732		 Amb. +15 to 1500
/ Amb. +27 to 2732
Continuous operating
temperature (±℃ / ℉)		 Amb.+15 ~ 960
/ Amb.+27 ~ 1760		 Amb.+15 ~ 960
/Amb.+27 ~ 1760		 Amb.+15 ~ 960
/Amb.+27 ~ 1760		 Amb.+15 ~ 1300
/Amb.+27 ~ 2372		 Amb.+15 ~ 1300
/Amb.+27 ~ 2372		 Amb.+15 ~ 1300
/Amb.+27 ~ 2372
Fluctuation at
max. temp.(±℃ / ℉)		 1 / 1.8 1 / 1.8  1 / 1.8 1.5 / 2.7  1.5 / 2.7  1.5 / 2.7
Dimension
(W×D×H)		 Interior (mm / inch)
130 x 250 x 90
/ 5.1 x 9.8 x 3.5
150 x 300 x 100
/ 5.1 x 11.8 x 3.9
 250 x 300 x 160
/ 9.8 x 11.8 x 6.3 		 130 x 250 x 100
/ 5.1 x 9.8 x 3.9		 150 x 300 x 100
/ 5.1 x 11.8 x 3.9		 250 x 300 x 160
/ 9.8 x 11.8 x 6.3
Exterior (mm / inch)
395 x 500 x 590
/ 15.6 x 19.7 x 23.2
 425 x 550 x 630
/ 16.7 x 21.7 x 24.8		 525 x 550 x 690
/ 20.7 x 21.7 x 27.2 		 515 x 590 x 670
/ 20.3 x 23.2 x 26.4 		 535 x 640 x 670
/ 26.4 x 25.2 x 26.4 		 635 x 640 x 730
/ 25.0 x 25.2 x 28.7

Net weight (Kg / lbs)

 42 / 92.6 50 / 110.2 70 / 154.3  53 / 116.8  63 / 138.9  78 / 172.0
Electrical requirements
(230V, 50 / 60Hz, A) 		 9 13.6 20.4   15.0 16.8  22.7
Cat. No. General Type  AAHP2112K AAHP2122K AAHP2132K AAHP2212K AAHP2222K AAHP2232K
Program Type  AAHP2111K AAHP2121K AAHP2131K  AAHP2211K   AAHP2221K  AAHP2231K





LC GreenBox

Monitor the operation status of the device in real time via mobile app with simple internet connection.

Description Dimension (W x D x H, mm / inch)  Cat. No.
Mobile monitoring system
156 x 94 x 34 / 6.1 x 3.7 x 1.3
  AAHQ1011K




Shelves for Furnace

Model Dimension (W x D x H, mm) Ceramic Shelf
MF2-12 series
120 x 230 x 12t
  00FDA0009706
MF2-22 series
140 x 280 x 12t
  00FDA0009707
MF2-32 series
260 x 260 x 12t
  00FDA0009708
