Environmental Chambers

Pharmaceutical Stability Test Chamber

Manufactured in accordance with ICH Guidelines Q1A-Stability test (R2), Q1B-Photostability test (Option 2).

Model Name : TH-ICH-300/800

BROCHURE URL COPY Inquiry Form

Control range

Temperature range from -5 to 85°C Humidity range from 20 to 85% RH

Performance

Microprocessor PID control / Temperature calibration / Automatic tuning.
Rapid humidity control is achieved by adapting the humidification tank interior to the chamber.
Air-tight door closure with perfect sealed packing.
- Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.

Convenience

Two different sized models available to suit any users’ needs.
Corrosion resistant stainless steel chamber.
Cable port for introduction of external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit.
- Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
Inner glass door with entry ports for handling samples without affecting inner chamber temperature and humidity. (optional)
Casters for easy mobility during installation or relocation.
User friendly LCD controller.
- Colorful interactive touch type LCD controller.
- Set point temperature and present temperature are clearly shown together on display.
- Sufficient programmable control support.
- Operating progress can be shown in graph mode for better data understanding.
- Automatic start/stop can be programmed for unattended operations.
- Display indicates abnormal temperature changes or power failures.
- Selective bilingual language support.
(Korean / English or English / Chinese, selectable only when placing an order)
- Temperature and other operating parameters can be recorded using a six channel digital recorder.(optional)
Computer interface.
- RS-485 communication port (optional) enables connection up to maximum 32 units. Simultaneous monitoring and operating of multiple units is an available feature.
- Program patterns are simple to set with the use of our software.
- Easy to check status of real-time operations. Graph data supports easy understanding.
- Storage and documentation of programs.
- Data with saving capabilities in excel and text format.
- Storage of program information, backup of value settings, recovery, and temperature values.
- RS-232 communication port as standard offer.

Description	No
Programmable pattern capacity	100
Pattern repeat time	999
Part repeat time	255
Max. segments per a pattern	100
Available max. segments*	2000
Programmable process time per a segment	0 to 99 hr. 59 min.

* It is possible to set 100 segments per pattern, but the maximum number of segments is not 10,000 (100 pattern x 100 segment) but 2,000.

Stability test ICH guideline Q1A (R2)

Operating progress visible through graph mode for better data analyzation.
Cyclic defrost system, designed to work excellently for the long period stability test operation. (※Temperature and humidity changes may occur during automatic defrost.)
Maintenance of water supply are easily performed with a front water tank.
- Water level check indicated by water level bar in the tank.
Water supply during operation is also available for long term test purposes.
Direct water system provides user great convenience when performing long-term test. (optional)

Photostability test ICH guidelineQ1B (Option 2)

Built in UV and fluorescent lamps for uniformed luminescence.
Equipped with movable UV and VIS sensors .
Independent lamp controller
- An indicator for Total usage time of UV and fluorescent lamps.
Convenient set function of cumulative dosage and lamp Of

Safety

Built in door lock with a key.
Automatic shut off after overheat alarm.
Low and empty water level alarm.
Power supply leakage breaker.
Over current protection.
Open door alarm.

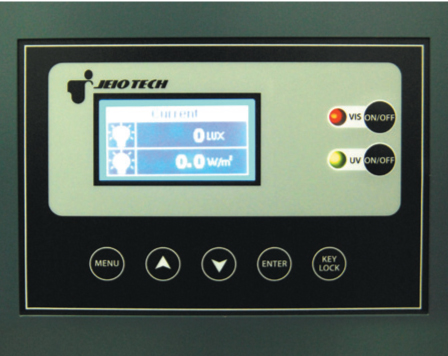

Lamp controller
LCD controller

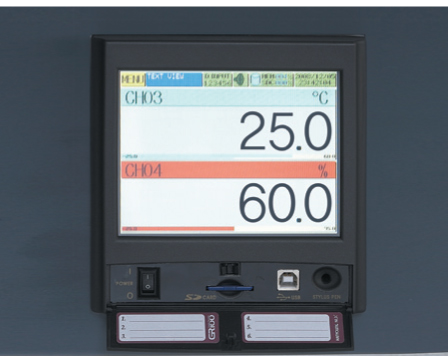

Digital recorder (optional)

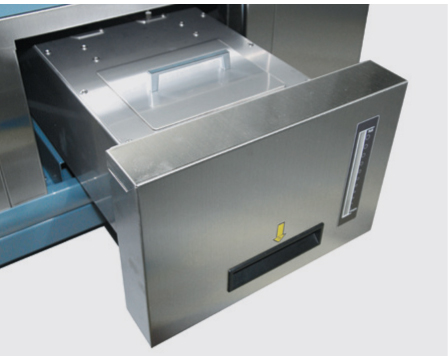

Water level indicator

Model			TH-ICH-300	TH-ICH-800
Chamber volume (L / cu ft)			300 / 10.6	760 / 26.8
Controller			PID control (LCD Type)
Temperature ¹⁾	Range	without humidity (℃ / ℉)	-5 to 85 / 23 to 185 without Light 0 to 85 / 32 to 185 with Light
	Range	with humidity (℃ / ℉)	+15 to 85 / 59 to 185 with Light
	Fluctuation ¹⁾ (±℃ / ℉) at 40℃ / 60%RH		0.3 / 0.55	0.3 / 0.55
	Variation ¹⁾ (±℃ / ℉) at 40℃ / 60%RH		0.5 / 0.9	0.7 / 1.3
Time	Heating		25min (20℃ → 85℃)	30min (20℃ → 85℃)
Time	Cooling		35min (20℃ → -5℃)	40min (20℃ → -5℃)

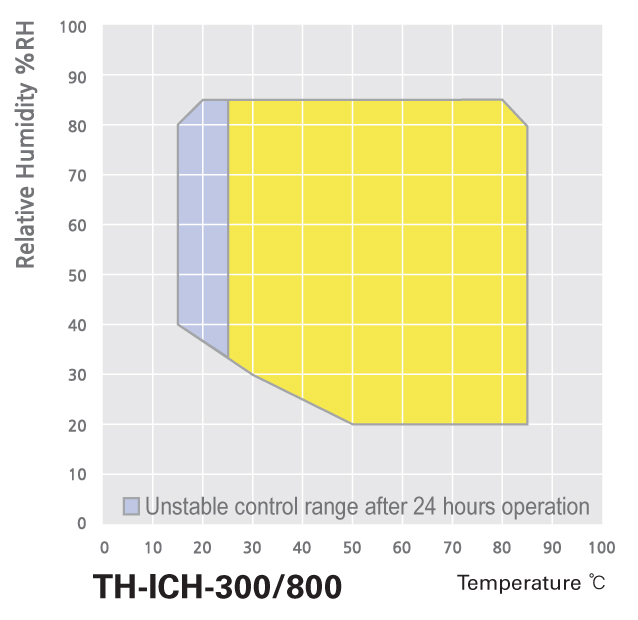

Humidity	Range (%RH)		20 to 85 ※ See page 231 for more detailed humidity range check.
	Fluctuation ²⁾ (±%RH) at 60%RH / 40℃		3
	Variation ²⁾ (±%RH) at 60%RH / 40℃		5
Light source (ICH Q1B option 2)	Cool white ³⁾		6,000 lux	6,500 lux
	Ultraviolet-A ³⁾		4.5 W/㎡	5 W/㎡
	Light uniformity		VIS. : ±10%UVA : ±15%	VIS. : ±15%UVA : ±15%
Typical time required to reach ICH Recommendation of 1.2 million lux-hr			≒ 200Hr	≒ 184Hr
Typical time required to reach ICH recommendation of 200 W-hr/m2			≒ 50Hr	≒ 40Hr
Refrigeration	System		Air - cooled
Refrigeration	Refrigerant		R- 404A
Water tank	Capacity (L / cu ft)		15 / 0.53
Water tank	Water quality		pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below
No. of wire shelves (standard / max.)			2 / 8	2 / 17
Distance of between shelves (mm / inch)			60 / 2.4	60 / 2.4
Max. load per shelf (kg / lbs)			25 / 55.1	40 / 88.2
Permitted total load (kg / lbs)			75 / 165.3	100 / 220.5
Dimension (W×D×H)	Interior (mm / inch)		750×650×650 / 29.5×25.6×25.6	750×880×1160 / 29.5×34.6×45.7
	Exterior (mm / inch)		1130×985×1520 / 44.5×38.8×59.8	1220×1215×1965 / 48×47.8×77.4
	Net weight (kg / lbs)		280±10 / 617±22	400±10 / 882±22
Cable port			Basically one hole provided / Ø 50mm (2”), Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface port			Basically RS-232C, [RS-485 : optional]
Electrical requirements	AC230V, 1ph, 60Hz		14.7 A	23.5 A
	Cat.No.		AAHC1005K	AAHC1015K
	AC230V, 1ph, 50Hz		14.7 A	23.5 A
	Cat.No.		AAHC1005K	AAHC1015K

1) All specifications are under ambient temperature 20℃ (68℉), No load.
2) Technical data according to DIN 12880, IEC 60068.
3) The value is measured on the center of chamber at the point of vertical direction.

for Floor Standing Chambers

Accessory check list□ Standard ○ Optional

Description	Models
Description	TH-G	TH-I	TH-KH	TH-TG	TH-ICH	TH-CR
Recorder (6 points)	○	○	○	○	○	○
Recorder (digital, 6 channels)	○	○	○	○	○	○
interface converter RS-485C → 232C included a cable (5m / 16.4ft)	○	○	○	○	○	○
Interface cable (5m / 16.4ft)	○	○	○	○	○	○
Warning signal lamp	○	○	○	○	○	○
Inner glass door	○	○	○	○	○	-
Viewing window	□	□	□	□	-	□
Wire shelf	□	□	□	□	□	□
Perforated shelf	○	○	○	○	○	○
Cable port (Ø 50mm / 2”)	□	□	□	□	□	□
Cable port (Ø 80mm / 3.2”)	○	○	○	○	○	○
Temperature sensor (RTD type)	□	□	□	□	□	□
Humidity sensor	□	□	□	□	□	□
Fluorescent lamp (Cool White)	-	-	-	-	□	-
UVA lamp	-	-	-	-	□	-
UV sensor	-	-	-	-	□	-
Illumination Sensor	-	-	-	-	□	-
HEPA filter	-	-	-	-	-	□
ULPA filter	-	-	-	-	-	○
Water cartridge tank (Water Container)	□	□	□	□	-	□
Water purifier	○	○	○	○	○	○
Direct water system	○	○	○	○	○	○

1) 80mm cable access hole is NOT available for 25L chamber.

Ordering information

Cat. No.	Description	Suitable for
AAA8T500	Recorder (6 points)	All models
AAA8T505	Recorder (digital, 6 channels)	All models
AAA8T540	interface converter RS-485C → 232C included a cable (5m / 16.4ft)	All models
AAA8T542	Interface cable (5m / 16.4ft)	All models
AAA80550	Warning signal lamp	All models
AAA81552	Inner glass door	TH-G/I/KH-180
AAA81551		TH-G/I/KH-300, 408, CR-270
AAA81550		TH-G-800, 1000
AAAC2501		TH-TG-180
AAAC2502		TH-TG-300, 408
AAAC2503		TH-TG-800, 1000
AAA81554		TH-ICH-300
AAA81555		TH-ICH-800
AAA8T610	Cable port (Ø 50mm / 2”)	All models
AAA8T611	Cable port (Ø 80mm / 3.2”)	All models
00CFA0001185	Temperature sensor (RTD type)	All models
00CFA0007113	Humidity sensor	All models
00RTD0001190	Fluorescent lamp (cool white)	TH-ICH-300
00RTD0001191	Fluorescent lamp (cool white)	TH-ICH-800
00RTD0001188	UVA lamp	TH-ICH-300
00RTD0001189	UVA lamp	TH-ICH-800
AAA80680	THE-680 UV sensor	TH-ICH-300/800
AAA80681	THE-681 Illumination sensor	TH-ICH-300/800
AAA80661	Door lock device	TH-ICH-300/800
00EDA0009184	HEPA filter	TH-CR-270
00EDA0009175	ULPA filter	TH-CR-270
AAA80622	Water cartridge tank	All models
