Baths & Circulators

Refrigerated & Heating Bath Circulators (General)

Rapid heating and cooling throughout the entire temperature range.

Model Name : RW3-0525/1025/2025/3025
RW3-0535/1035/2035/3035


Performance

  • Temperature range.
    - RW3-35 models from -35℃ to 150℃.
    - RW3-25 models from -25℃ to 150℃.
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning / Automatic run.
  • Suitable for both internal and external bath environments due to reduced turbulence by using five-speed adjustable pump and built-in cooling coil.
    (1 to 3 steps of the pump for internal circulation and 4 to 5 steps for external circulation)

Pump Step 1 2 3 4 5
Max. pressure (psi) 0.5 1.1 2.4 4.9 5.9
Max. flow rate (L/min) 5.6 8.0 12.8 18.8 28.0

※ Bath fluid: water at the normal temperature.

Convenience

  • Bright VFD display with quick adjustable dial knob. (0.1℃resolution)
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Convenient memory function of up to three frequently set temperature.
  • Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
  • Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
  • CFC-free refrigerant (R-507, R-404A) and a double service valve for leakage prevention.
  • Quick-release front grill for easy cleaning of the condenser.
  • RS-232 / USB interface for external control and data collection.
  • Side handles enables convenience handling and transport
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

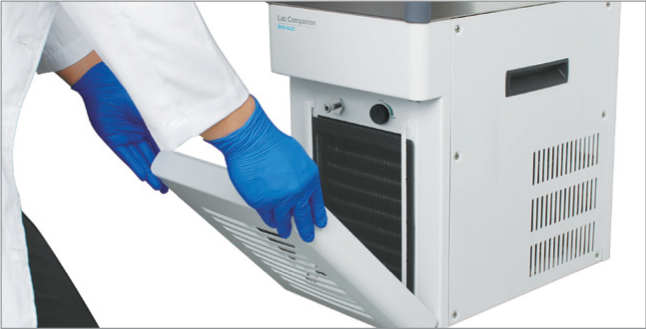

  • Easy maintenance of condenser by removable gridded vent

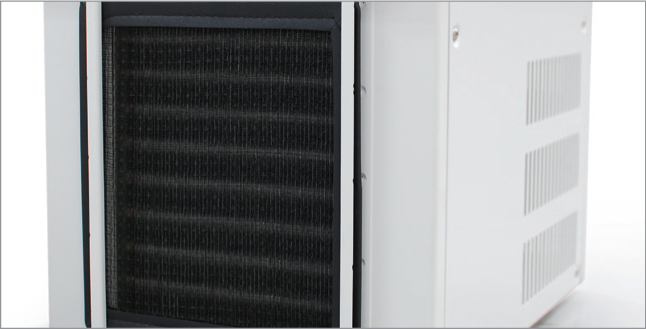

  • Condenser air-filter for refrigerating efficiency





Safety

  • Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
  • Complete safety protection system with warning alarms.
    - Low fluid level and dry-running, over-temperature, over-current.
  • Keypad lock function prevents accidental changes during operation.


for temperature range from -25℃ to 150℃


Model RW3-0525 RW3-1025 RW3-2025 RW3-3025
Bath volume (L / cu ft) 5 / 0.2 10 / 0.4 20 / 0.7 30 / 1.1
Temperature Working temperature range (℃ / ℉) -25 to 150 / -13 to 302
Temperature stability 1) (±℃ / ℉) 0.05 / 0.09
Cooling capacity 2)
(bath fluid: ethanol)
at -20℃ (-4℉), W 140

180

310 465
at 0℃ (+32℉), W 270 360 610 700
at +20℃ (+68℉), W 400 560 850 980
Refrigerator 1/3 LBP, R-507 1/3 LBP, R-507 1/2 LBP, R-404A 3/4 LBP, R-404A
Pump(bath fluid: water) Max. pressure 5.9 PSI (406.8 millibar)
Max. flow rate 7.4 gallons / minute (28 liters / minute)
Dimension Bath opening / depth(W×L, D)
(mm / inch)
150×99, 160/
5.9×3.9, 6.3
211×154, 180/
8.3×6.1, 7.1
290×214, 200/
11.4×8.4, 7.9
300×264, 230/
11.8×10.4, 9
Exterior(W×L×H) (mm / inch) 308x480x733/
12.1x18.9x28.9
366x532x780/
14.4x20.9x30.7
386x602x825/
15.2x23.7x32.5
446x662x895/
17.6x26.1x35.2
Net weight (kg / lbs) 38 / 83.8 44 / 97 60 / 132.2 67 / 147.7
Electrical requirements (230V, 60Hz) 11A 11A 12.5A 13.5A
Cat. No. AAH57041K AAH57051K AAH57062K AAH57071K
Electrical requirements (230V, 50Hz) 11A 11A 12.5A 13.5A
Cat. No. AAH57042K AAH57052K AAH57062K AAH57072K
Electrical requirements (120V, 60Hz) 12.6A 12.6A
Cat. No. AAH57043U AAH57053U - -

for temperature range from -35℃ to 150℃

Model RW3-0535 RW3-1035 RW3-2035 RW3-3035
Bath volume (L / cu ft) 5 / 0.2 10 / 0.4 20 / 0.7 30 / 1.1
Temperature Working temperature range (℃ / ℉) -35 to 150 / -31 to 302
Temperature stability 1)  (±℃ / ℉) 0.05 / 0.09
Cooling capacity 2)
(bath fluid: ethanol)
at -20℃ (-4℉), W 140 180 310 465
at 0℃ (+32℉), W 270 360 610 700
at +20℃ (+68℉), W 400 560 850 980
Refrigerator 1/2 LBP, R-404A 1/2 LBP, R-404A 3/4 LBP, R-404A 1 LBP, R-404A
Pump(bath fluid: water) Max. pressure 5.9 PSI (406.8 millibar)
Max. flow rate 7.4 gallons / minute (28 liters / minute)
Dimension Bath opening / depth(W×L, D)
(mm / inch)
150×99, 160/
5.9×3.9, 6.3
211×154, 180/
8.3×6.1, 7.1
290×214, 200/
11.4×8.4, 7.9
300×264, 230/
11.8×10.4, 9
Exterior(W×L×H) (mm / inch) 308x480x733/
12.1x18.9x28.9
366x532x780/
14.4x20.9x30.7
386x602x825/
15.2x23.7x32.5
446x662x895/
17.6x26.1x35.2
Net weight (kg / lbs) 38 / 83.8 44 / 97 60 / 132.2 67 / 147.7
Electrical requirements (230V, 60Hz) 12.5A 12.5A 13.5A 14.5A
Cat. No. AAH57141K AAH57151K AAH57161K AAH57171K
Electrical requirements (230V, 50Hz) 12.5A 12.5A 13.5A 14.5A
Cat. No. AAH57142K AAH57152K AAH57162K AAH57172K

※ Technical data (according to DIN 12876)

※ In case using silicon oil, you need to exchange other material tube (inlet and out late part), such as copper tube, a teflon tube instead of a silicon tube in fitting.

1) Technical data according to DIN 12876. (bath fluid : ethanol at -10℃)
2) The cooling capacity is measured under 230V / 60Hz electrical condition.






Stainless Steel Cover

Sturdy, corrosion-resistant, stainless steel material.

Cat. No. Model
AAA51531 RW3-0525(P), RW3-0535(P), CW3-05(P)
AAA51532 RW3-1025(P), RW3-1035(P), CW3-10(P)
AAA51533 RW3-2025(P), RW3-2035(P), CW3-20(P)
AAA51534 RW3-3025(P), RW3-3035(P), CW3-30(P)





Test Tube Racks

Highly durable stainless steel test tube racks feature adjustable angle and tube height support without requiring any base plate. You can easily mount and release test tube racks.

Cat. No. Description Insert Capacity of Racks*
AAA44581 for 86 test tubes Ø8mm / Ø0.3˝ CW3-20(P): 2ea
CW3-30(P): 2ea
RW3-2025(P): 2ea
RW3-2035(P): 2ea
RW3-3025(P): 2ea
RW3-3035(P): 2ea
AAA44582 for 86 test tubes Ø10mm / Ø0.4˝
AAA44583 for 58 test tubes Ø12mm / Ø0.5˝
AAA44585 for 32 test tubes Ø16mm / Ø0.6˝
AAA44586 for 19 test tubes Ø25mm / Ø1.0˝
AAA41531 for 50 test tubes Ø8mm / Ø0.3˝ CW3-10(P): 1ea
RW3-1025(P): 1ea
RW3-1035(P): 1ea
AAA41532 for 50 test tubes Ø10mm / Ø0.4˝
AAA41533 for 33 test tubes Ø12mm / Ø0.5˝
AAA41535 for 16 test tubes Ø16mm / Ø0.6˝
AAA41539 for 10 test tubes Ø25mm / Ø1.0˝

* No declination.

Spring Wire Racks

Ideal for holding a wide variety of tubes, flasks, and other glassware. All components are made of stainless steel. (for all models)

Cat. No. Suitable for
AAA51522 CW3-20(P), RW3-2025(P), 2035(P)
AAA51523 CW3-30(P), RW3-3025(P), 3035(P)


LC GreenBox

Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.

Cat. No. Description Suitable for
AAHQ1011K LC GreenBox (2.4GHz, 100~240V, 50/60Hz) CW3, RW3 models
