Recirculating Coolers

Chiller (Recirculating Coolers) (Compact)

This compact designed model is ideal for cooling small laboratory equipment in daily use.

Model Name : RC-05

BROCHURE URL COPY Inquiry Form

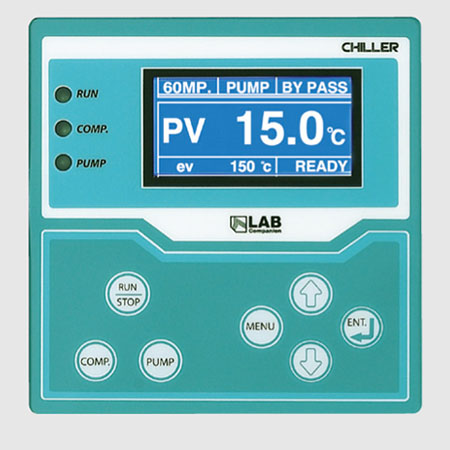

LCD display

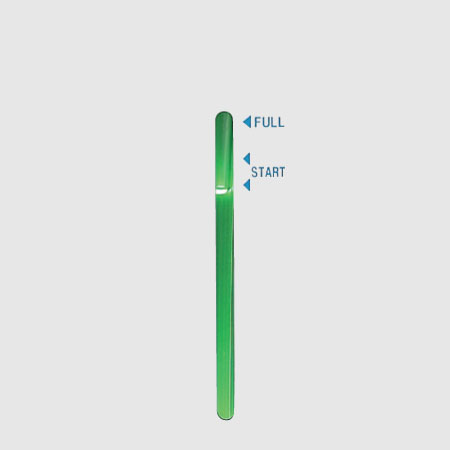

Level indicator

Performance

Temperature range from -20°Cto 30°C.
Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.

Convenience

Clear and easy-to-use LCD display. (resolution 0.1°C)
Bright LED water level indicator can be seen from a distance.
Wide filling inlet for easy and safe pouring of solution into the unit.
Double service valve prevents refrigerant leakage for easy maintenance.
Removable gridded vent for easy maintenance of condenser.

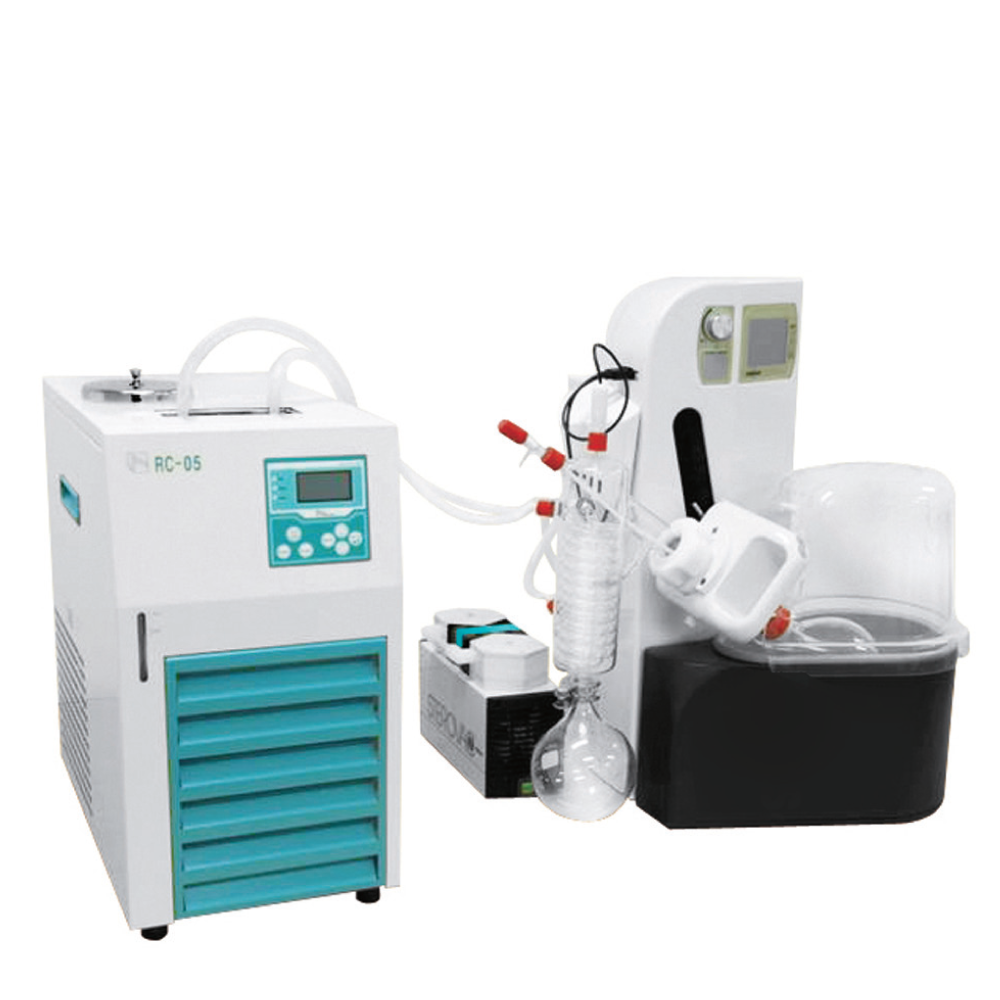

Compact design for space saving. The unit is suitable for stable temperature cooling compact devices such as rotary evaporators in laboratory.
Variety of accessories are available to meet application demands.

Safety

Self-diagnostic function identifying errors.
Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker.
Eco-friendly R-507 refrigerant use for environmental protection.
Splash-proof keypad.

Model	RC-05
Interior dimension
Max. filling volume(L / cu ft)	5 / 0.18
Refrigerator capacity(HP)	1 / 3
For tubing dia.(mm / inch)	9.5 / 3/8
Filling inlet(Ø, mm / inch)	37 / 1.46
Exterior dimension
Width (mm / inch)	300 / 11.8
Depth (with drain valve), (mm / inch)	550 / 21.7
Height (with lid), (mm / inch)	530 / 20.9
Net weight (kg / lbs)	45 / 99.2
Temperature data
Working temperature range (℃ / ℉)	-20 to 30 / 14 to 86
Temperature stability at 15℃ (bath fluid : water) (±℃ / ℉)	1 / 1.8
Cooling capacity, Max (bath fluid : ethanol)
at 20℃ (W)	580
at 10℃ (W)	450
at 0℃ (W)	350
at -10℃ (W)	270
at -20℃ (W)	110
Pump data
Max. flow rate(L / min, gal / min)	26 / 6.87
Max. pressure (bar / psi)	0.7 / 10.15
Electrical data & Ordering information
230V, 50/60 Hz, A	4
Cat. No.	ACH651015K

1) Technical data according to DIN 12876.
※ Above specification value is recorded by 230V 60Hz.
※ Product performance may be affected by ambient temperatures.

Barbed fittings

Geared for quick connecting of various size type tubes using pipe fittings, tube fittings, and hose fittings without tools.

Barbed fittings

Cat. No.	Description
00HXE0001066	3/4" male to barbed fitting for tubing 1" inner dia.
00HXE0001067	3/4" male to barbed fitting for tubing 3/4" inner dia.
00HXE0001068	3/4" male to barbed fitting for tubing 5/8" inner dia.
00HXE0001069	3/4" male to barbed fitting for tubing 1/2" inner dia.
00HXE0001070	3/4" male to barbed fitting for tubing 3/8" inner dia.
AAA64501	1" barbed fittings set with ball valve
AAA64502	3/4" barbed fittings set with ball valve
AAA64503	5/8" barbed fittings set with ball valve
AAA64504	1/2" barbed fittings set with ball valve
AAA64505	3/8" barbed fittings set with ball valve
AAA64506	1" barbed fittings set with gate valve
AAA64507	3/4" barbed fittings set with gate valve
AAA64508	5/8" barbed fittings set with gate valve
AAA64509	1/2" barbed fittings set with gate valve
AAA64510	3/8" barbed fittings set with gate valve

Connectors / Adapters

Connect tubing or other devices.

Connectors / Adapters

Cat. No.	Description
00HXE0001105	3/4" male to 3/4" female
00HXE0001106	3/4" male to 5/8" female
00HXE0001107	3/4" male to 1/2" female
00HXE0001108	3/4" male to 3/8" female
00HXE0001109	3/4" male to 3/4" male
00HXE0001110	3/4" male to 5/8" male
00HXE0001111	3/4" male to 1/2" male
00HXE0001112	3/4" male to 3/8" male

One touch adapters set

Convenient to connect and exchange tubing.

One touch adapters set

Cat. No.	Description
00HXE0001075	12mm one touch adapter	ID. 9mm, OD. 12mm
00HXE0001076	10mm one touch adapter	ID. 6.5mm, OD. 10mm
00HXE0001077	8mm one touch adapter	ID. 5.5mm, OD. 8mm
00HXE0001078	6mm one touch adapter	ID. 4mm, OD. 6mm
AAA64531	12mm adapters set with ball valve
AAA64532	10mm adapters set with ball valve
AAA64533	8mm adapters set with ball valve
AAA64534	6mm adapters set with ball valve

Flexible fittings

Stainless steel tubing designed for superior flexibility and with good chemical resistance.

Flexible fittings

Cat. No.	Description
00GBA0008589	3/4" male to 3/4" flexible fitting
00HXE0001072	3/4" male to 1/2" female with 1/2" male to 1/2" flexible fitting
AAA64521	3/4" flexible fittings set with ball valve
AAA64522	1/2" flexible fittings set with ball valve
AAA64523	3/4" flexible fittings set with gate valve
AAA64524	1/2" flexible fittings set with gate valve

Tubings

Excellent heat resistance and corrosion resistance urethane tubing.

Tubings

Cat. No.	Description
00HXE0001079	1m 12mm urethane tubing	ID. 9mm, OD. 12mm
00HXE0001080	1m 10mm urethane tubing	ID. 6.5mm, OD. 10mm
00HXE0001081	1m 8mm urethane tubing	ID. 5.5mm, OD. 8mm
00HXE0001082	1m 6mm urethane tubing	ID. 4mm, OD. 6mm
00HXE0001083	1m 1" PVC tubing with thread	ID. 25mm, OD. 31mm
00HXE0001084	1m 3/4" PVC tubing with thread	ID. 19mm, OD. 24mm
00HXE0001085	1m 5/8" PVC tubing with thread	ID. 16mm, OD. 20.5mm
00HXE0001086	1m 1/2" PVC tubing with thread	ID. 12mm, OD. 16.0mm
00HXE0001087	1m 3/8" PVC tubing with thread	ID. 10mm, OD. 14mm
00HXE0001088	1m 1" PVC tubing with wire	ID. 25mm, OD. 33mm
00HXE0001089	1m 3/4" PVC tubing with wire	ID. 19mm, OD. 26mm
00HXE0001090	1m 5/8" PVC tubing with wire	ID. 15mm, OD. 22mm
00HXE0001091	1m 1/2" PVC tubing with wire	ID. 12mm, OD. 18mm
00HXE0001092	1m 3/8" PVC tubing with wire	ID. 9mm, OD. 15mm

Tubing insulations

EPDM insulation is used to reduce heat loss and condensation from cold water plumb- ing, chilled water, and refrigeration lines.

Tubing insulations

Cat. No.	Description
00FEA0001453	EPDM insulation, 25mm inner dia. (13T)
00HXE0001093	EPDM insulation, 16mm inner dia. (9T)
00HXE0001094	EPDM insulation, 19mm inner dia. (9T)
00HXE0001095	EPDM insulation, 25mm inner dia. (9T)
00HXE0001096	EPDM insulation, 28mm inner dia. (9T)
00HXE0001097	EPDM insulation, 35mm inner dia. (9T)

Flexible tubing

Cat. No.	Description
00HXE0001128	3/4" flexible tubing
00HXE0001074	1/2" flexible tubing

Tube clamps

Corrosion resistant stainless steel clamps

Tube clamps

Cat.No.	Description
00HXE0001098	1" clamp
00HXE0001099	3/4" clamp
00HXE0001100	5/8" clamp
00HXE0001101	1/2" clamp
00HXE0001102	3/8" clamp

Distributing fittings

Distributing fittings connect even with small tubes with barb fittings.

Distributing fittings

Cat. No.	Description
AAA64541	3-way distributing barbed fittings set (1/4")
AAA64542	3-way distributing barbed fittings set (3/8")
