Shaker

Shaker

Shaker (Dual action)

Dual-action benchtop platform shakers accommodate flask up to 6L.

with optional dedicated platform

Model Name : OS-2000/3000/4000

Performance

Dual-action shaking motion: Orbital / Reciprocating.
Microprocessor PID control / Shaking speed calibration.
Competitive high shaking speed up to 500 rpm.
Shaking motion in various amplitude.
- 12.7mm or 19.1mm for OS-2000
- 19.1mm or 25.4mm for OS-3000
- 19.1mm or 25.4mm for OS-4000
Wide speed range even with heavy workload.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
Pleasant test environment by the smooth acceleration and deceleration control.
Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob.
Easy-set digital timer. (1 min. to 999 hr. 59 min.)
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.
RS-232 port and USB port for external control and data collection.
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

Model	OS-2000	OS-3000	OS-4000
Shaking system
Motion type	Orbital / Reciprocal	Orbital / Reciprocal	Orbital	Reciprocal
Speed range (rpm)	20 to 500	20 to 500	20 to 500	20 to 450
Max. speed per permissible load ¹⁾	500rpm (max. 10 kg) 300rpm (max. 16 kg)	500rpm (max. 10 kg) 300rpm (max. 18 kg)	500rpm (max. 14 kg) 400rpm (max. 21 kg)	450 rpm (max. 10 kg) 300 rpm (max. 21 kg)
Amplitude size (mm / inch, dia.)	19.1 / 0.8 (12.7 / 0.5 available)	19.1 / 0.8 (25.4 / 1 available)	19.1 / 0.75 (default)	25.4 / 1 (available)
Speed stability ²⁾ (rpm, %)	1	1	1
Timer (count-down)	999hr 59min	999hr 59min	999hr 59min
Dimension
Platform (W×D) (mm / inch)	320×260 / 12.6×10.2	350×350 / 13.8×13.8	450×450 / 17.7×17.7
Body ¹⁾ (W×D×H) (mm/inch)	354x388x146/ 13.9x15.3x5.7	409x508x141/ 16.1x20x5.6	510x632x156 / 20.1x24.9x6.1
Net weight (Kg / lbs)	22 / 48.5	28 / 61.7	43 / 94.8	43 / 94.8
Electrical requirements (230V, 50 / 60Hz)	0.3A	0.3A	0.3A	0.4A
Cat. No.	AAH3D1115K	AAH3D1215K	AAH3D1315K
Electrical requirements (120V, 50 / 60Hz)	0.6A	0.6A	0.6A	0.8A
Cat. No.	AAH3D1165U	AAH3D1265U	AAH3D1365U

1) In Orbital Shaking mode, Regarding the maximum controllable RPM and amplitude by weight, the measurement is performed based on the default value.

2) Actual rpm allowable error for set rpm is 1rpm if setting is less than 100 rpm, ±1% if setting is higher than 100rpm.

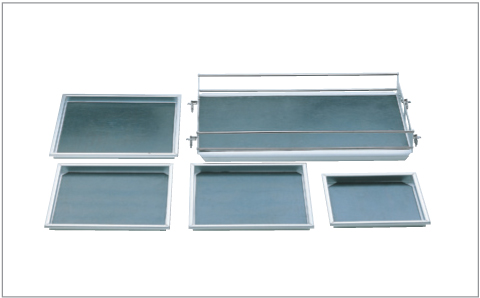

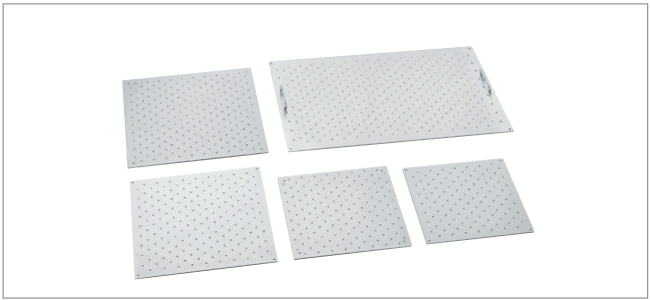

Universal platforms (OS models)

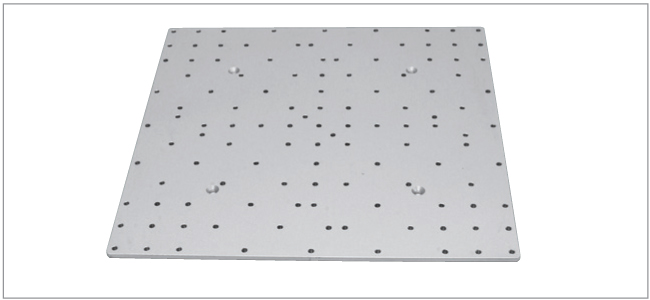

Universal platform (CMS-350)

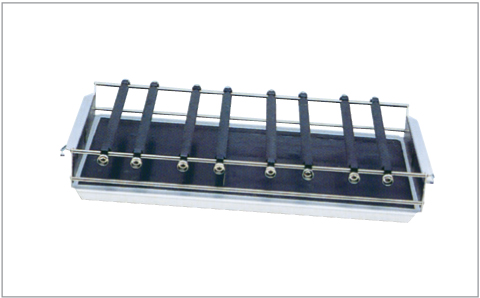

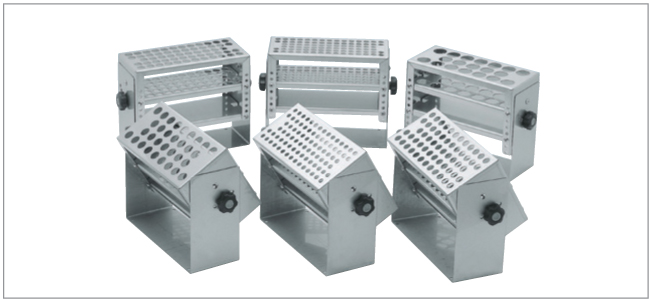

Test tube racks

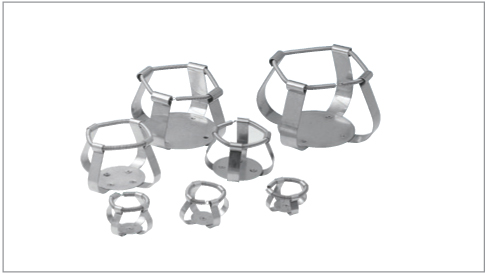

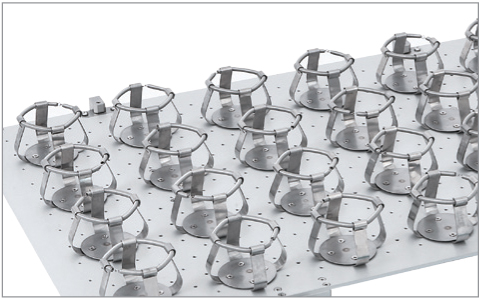

Flask clamps (stainless steel)

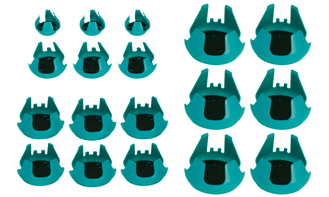

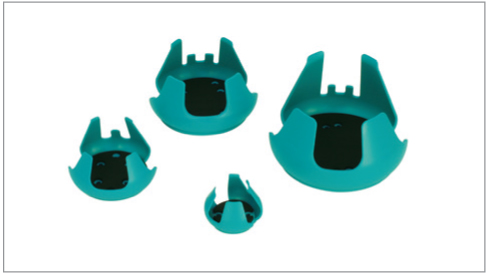

Flask clamps (plastic)

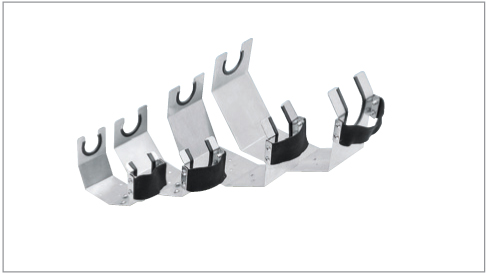

Funnel clamps

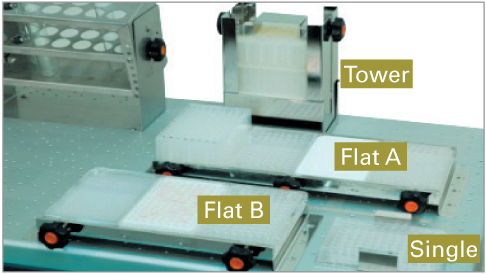

Microplate holders

Description			OS-2000	OS-3000	OS-4000	OS-7000 Series
Cat.No.	Universal platform		AAA3A501-V2	AAA23501-V3	AAA23502-V3	AAA23503-V3
-	Flask clamps(Stainless steel)	Erlenmeyer flask size	Max. mountable flask clamps
AAA23550		for 50 ml	20	36	49	88
AAA23551		for 100 ml	16	28	39	68
AAA23552		for 250 ml	8	14	24	39
AAA23556		for 300 ml	8	14	24	39
AAA23553		for 500 ml	6	10	16	28
AAA23554		for 1L	3	6	9	18
AAA23555		for 2L	-	4	6	11
AAA23557		for 2.8L	-	3	5	8
AAA23558		for 4L	-	1	4	6
AAA23559		for 6L	-	1	3	5
-	Flask clamps(plastic)	Erlenmeyer flask size	Max. mountable flask clamps
AAA30570		for 50 ml	20	36	49	88
AAA30571		for 100 ~ 125 ml	12	19	29	48
AAA30572		for 200 ml	8	13	21	35
AAA30573		for 250 ml	8	13	19	35
AAA30574		for 300 ml	6	12	19	35
AAA30575		for 500 ml	6	9	12	24
AAA30576		for 1L	3	5	9	12
AAA30577		for 2L	-	4	5	8
-	Funnel clamps	Separating funnel size	Max. mountable funnel clamps
AAA23562		for 250 ml	4	4	6	15
AAA23563		for 500 ml	3	3	4	10
AAA23564		for 1L	3	3	3	7
AAA23565		for 2L	-	2	2	5
-	Test Tube Racks ¹⁾	Test tube size	Mountable capacity of racks
AAA23581		for 86 test tubes, ø8mm	2	2	4	7
AAA23582		for 86 test tubes, ø10mm
AAA23583		for 58 test tubes, ø12mm
AAA23584		for 58 test tubes, ø14mm
AAA23585		for 32 test tubes, Ø17mm
AAA23586		for 19 test tubes, Ø25mm
AAA23587		for 10 test tubes, Ø30mm
AAA23594		for 10 test tubes, Ø35mm
AAA23593		for 4 test tubes, Ø50mm
-	Microplate holders		Max. mountable microplate holders
AAA23654		Single	6	8	15	25
AAA23651		Tower	4	6	10	21
AAA23652		Flat A (large)	-	-	2	4
AAA23653		Flat B (small)	1	2	3	6

1) No declination.
※ Above accessories need to be mounted on a universal platform which is sold separately.

Description		OS-2000	OS-3000	OS-4000	OS-7000 Series

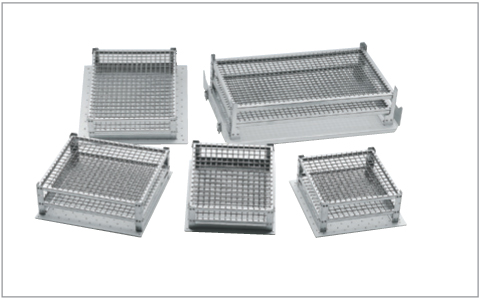

Spring wire racks	-	AAA3A521	AAA31521-V1	AAA31522-V1	AAA23514
	Erlenmeyer flask size	Max. inserting flasks
	for 50 ml	15	16	25	45
	for 100 ml	9	9	16	28
	for 250 ml	4	4	9	18
	for 300 ml	4	4	9	18
	for 500 ml	4	4	5	15
	for 1L	2	2	4	10
	for 2L	-	1	2	6
	for 2.8L	-	1	2	4

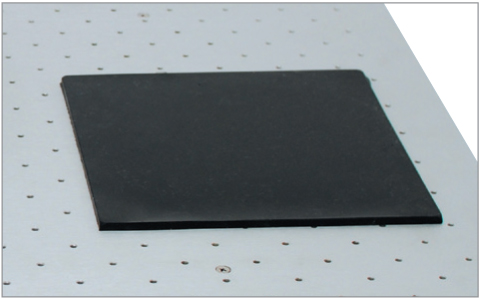

Rubber mat		AAA3A531-V1	AAA23531-V1	AAA23532-V1	AAA23534
Universal attachments		AAA3A511-V1	AAA23511-V1	AAA23512-V1	AAA23505
Lab sticker		AAA30551
Dimpled mat		AAA3A532	-	-	-

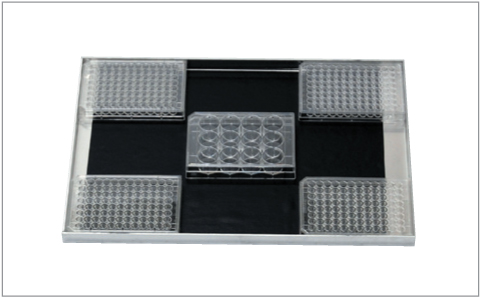

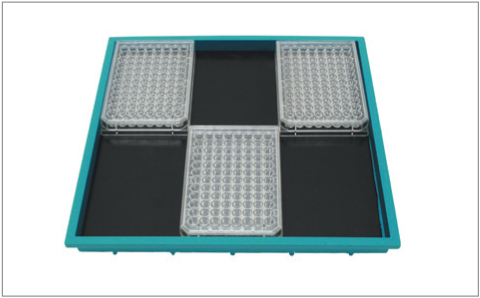

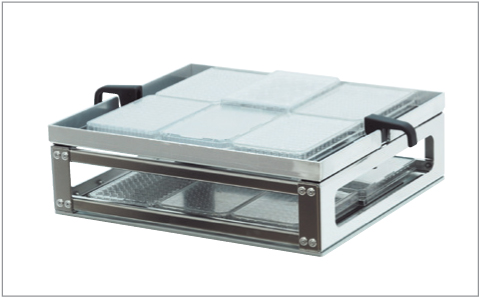

Microplate tray	Dual stacking	AAA3A541	-	-	-
Microplate tray	Large tray	AAA3A542	-	-	-

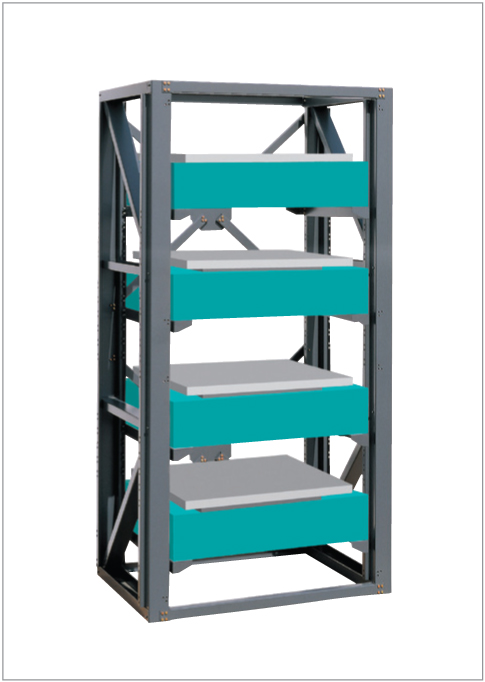

Stage racks	4 stage rack	-	AAA31541-V1	AAA31542-V1	AAA31702-V1
Stage racks	3 stage rack	-	-	-	AAA31703-V1

Starter Kit

- Consisting of plastic clamps that are commonly used on Universal Platforms.

- 50ml, 100ml, 250ml, 500ml, 1L, 2L

Description	Composition of Clamp	Cat. No.
Starter Kit I	50 ml (2), 100 ml (2), 250 ml (4), 500 ml (4), 1L (2), 2L (2)	AAA30581
Starter Kit II	50 ml (3), 100 ml (3), 250 ml (6), 500 ml (6)	AAA30582

LC GreenBox

Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.
