Shaker

Shakers (Program)

Innovative triple-cam shaking mechanism with offering reliable performance across a wide speed range.

with optional slide type dedicated platform

Model Name : SKC-6075/6100/6200/7075/7100/7200

BROCHURE URL COPY Inquiry Form

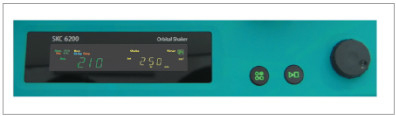

Control panel

Slide type universal platform (optional)

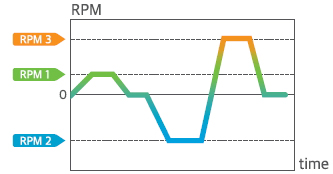

Progressive program operation

Programming parameters
Max. number of segments in one(1)pattern(cycle)		20
Max. number of patterns(cycle)saved		20
Shaking motion- Forward & Backward, Pause	Time	1min. to 99hr. 59min.
Shaking motion- Forward & Backward, Pause	rpm	30 to 500

Performance

Microprocessor PID control maintaining constant speed
Competitive high shaking speed up to 500 rpm.
Orbital shaking motion in various diameter.
- 19mm for SKC-6075/7075
- 25mm for SKC-6100/7100
- 50mm for SKC-6200/7200
Wide speed range even with heavy workload.
- Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
- Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
Pleasant test environment by the smooth acceleration and deceleration control.
- Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
Exceptional low-profile design (only 12cm from bottom to platform) minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

User friendly control panel.
- Lab Companion’s unique VFD-bright, clear, easy to read.
- Durable membrane touch switch and control knob.
Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples. (optional)
Repetitive task can be easily performed as the platform stops where it starts.
- Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
Variety of accessories are available to meet application demands.

Safety

Shaking speed deviation alarm.
Over-current protection.

Model			SKC-6075	SKC-6100	SKC-6200	SKC-7075	SKC-7100	SKC-7200
Control system			PID feedback control
Display			VFD
Shaking system	Motion type		Orbital
	Amplitude size(mm / inch, dia)		19 / 0.75	25 / 1	50 / 2	19 / 0.75	25 / 1	50 / 2
	Speed range²⁾(rpm)		30 to 500
	Accuracy at 100 rpm		±1
Dimension	Platform(W×D) (mm / inch)	Small	580×520 / 22.8×20.5			755×520 / 29.7×20.5
	Platform(W×D) (mm / inch)	Large	660×520 / 26×20.5			885×520 / 34.8×20.5
	Body¹⁾(W×D×H) (mm / inch)		582.8×618 ×122.2			754.8×662×122.2
	Body¹⁾(W×D×H) (mm / inch)		22.9×24.3×4.8			29.7×26.1×4.8
	Net weight(kg / Ibs)		65 / 143.3			75 / 165.4
Electric requirements(230V, 50 / 60Hz)			0.4A
Cat. No.			AAH30105K	AAH30115K	AAH30125K	AAH30205K	AAH30215K	AAH30225K
Electric requirements(120V, 60Hz)			0.8A
Cat. No.			AAH30106U	AAH30116U	AAH30126U	AAH30206U	AAH30216U	AAH30226U

※ Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).

1) Main body dimension without accessories.

2) In case of operating at high speed (350 to 500 rpm), it is recommended to use wight increaser be fixed on the working surface.

for Open-air Shakers (SKC models)

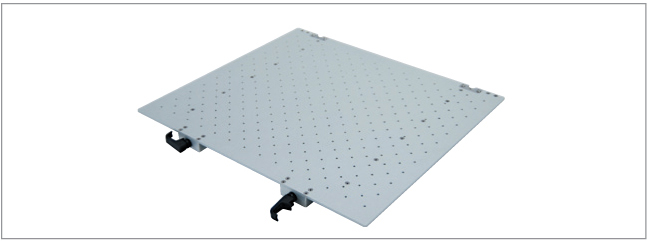

Universal Platforms

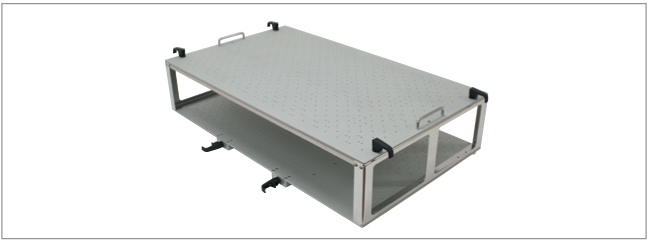

Dual universal platforms

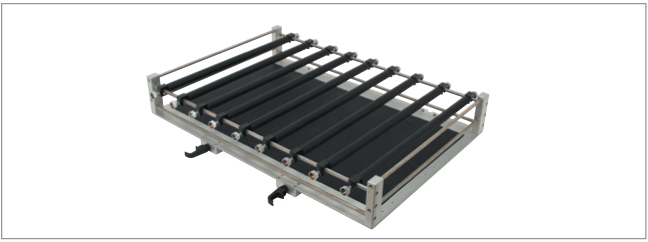

Spring wire racks
(two tier rack with flexible crossed spring)

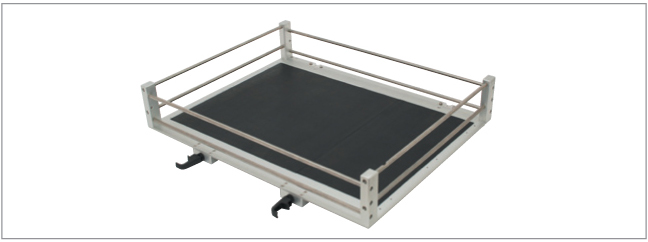

Universal attachments
Rubber mats

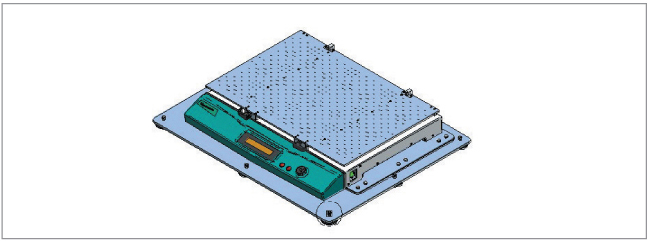

Weight increaser

Description			SKC - 6000 models		SKC - 7000 models
Description			Small	Large	Small	Large
Cat.No.	Universal platform	Single	AAA30501	AAA30503	AAA30502	AAA30504
Cat.No.	Universal platform	Dual ¹⁾	-	-	AAA30541	AAA30542
-	Flask Clamps(stainless steel)	Erlenmeyer flask size	Max. mountable flask clamps
AAA23550		for 50 ml	84	96	108	126
AAA23550		for 50 ml	84	96	108 per each step	126 per each step
AAA23551		for 100 ml	54	66	72	84
AAA23551		for 100 ml	54	66	72 per each step	84 per each step
AAA23552		for 250 ml	33	39	42	51
AAA23552		for 250 ml	33	39	42 per each step	51 per each step
AAA23556		for 300 ml	28	32	36	40
AAA23553		for 500 ml	20	24	27	30
AAA23554		for 1L	14	16	18	20
AAA23555		for 2L	8	11	12	13
AAA23557		for 2.8L	6	7	9	11
AAA23558		for 4L	4	6	8	9
AAA23559		for 6L	3	4	6	7
-	Flask clamps(plastic)	Erlenmeyer flask size	Max. mountable flask clamps
AAA30570		for 50 ml	56	64	72	80
AAA30571		for 100 ~ 125 ml	42	48	54	60
AAA30572		for 200 ml	25	39	30	32
AAA30573		for 250 ml	25	30	30	32
AAA30574		for 300 ml	25	30	30	32
AAA30575		for 500 ml	20	20	24	28
AAA30576		for 1L	10	12	12	15
AAA30577		for 2L	6	6	6	9
-	Funnel clamps	Separating funnel size	Max. mountable funnel clamps
AAA23562		for 250 ml	14	16	18	20
AAA23563		for 500 ml	9	10	11	14
AAA23564		for 1L	7	8	9	12
AAA23565		for 2L	5	6	7	8
-	Test Tube Racks ²⁾	Test tube size	Mountable capacity of racks
AAA23581		for 86 test tubes, ø8mm	8	9	9	12
AAA23582		for 86 test tubes, ø10mm
AAA23583		for 58 test tubes, ø12mm
AAA23584		for 58 test tubes, ø14mm
AAA23585		for 32 test tubes, ø16mm
AAA23586		for 19 test tubes, ø25mm
AAA23594		for 10 test tubes, ø35mm
-	Microplate holders	Holder type	Max. mountable microplate holders
AAA23654		Single	20	23	25	28
AAA23651		Tower	16	19	22	25
AAA23652		Flat A(large)	3	4	4	5
AAA23653		Flat B(small)	4	5	6	7

1) Universal platform attachments are mounted on the dual universal platform, Under the dual universal platform are mounted only 50ml, 100ml 250ml
- Refer to the above chart (Distance between platforms is 175mm).
2) No declination
※ Above accessories need to be mounted on a universal platform which is sold separately.

Description	SKC - 6000 models		SKC - 7000 models
Description	Small	Large	Small	Large
Spring wire rack	AAA30521	AAA30522	AAA30523	AAA30524
Universal attachment	AAA30511	AAA30512	AAA30513	AAA30514
Rubber mat	AAA30531	AAA30532	AAA30533	AAA30534
Lab Sticker	AAA30551
Weight increaser	AAA30562		AAA30561

Starter Kit

- Consisting of plastic clamps that are commonly used on Universal Platforms.

- 50ml, 100ml, 250ml, 500ml, 1L, 2L

Description	Composition of Clamp	Cat. No.
Starter Kit I	50 ml (2), 100 ml (2), 250 ml (4), 500 ml (4), 1L (2), 2L (2)	AAA30581
Starter Kit II	50 ml (3), 100 ml (3), 250 ml (6), 500 ml (6)	AAA30582
