Hotplate Stirrers & Stirrer

Hotplate (Digital type)

Superior temperature control with various safety functions.

Two different shapes of top plate are available for your optimum use

Model Name : T-14SG/17SG/18QG


BROCHUREURL COPYInquiry Form

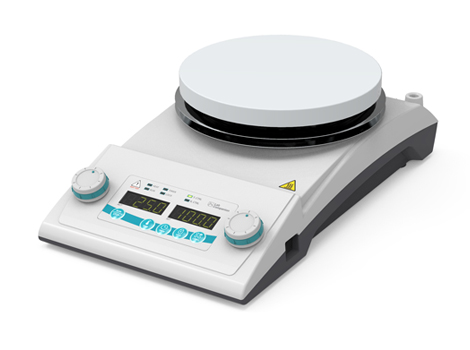

  • T-14SG/17SG

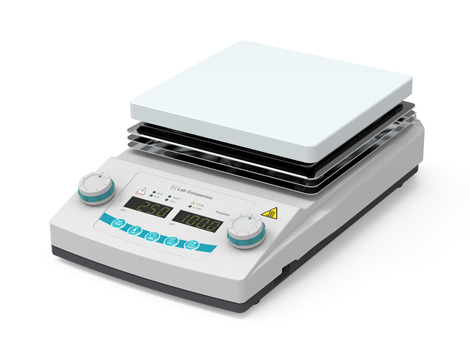

  • T-18QG

Performance & Convenience

  • Microprocessor PID temperature control.
  • Auto-tuning and temperature calibration functions.
  • Multi-functional temperature control modes. (optimal / fast / slow / user / point)
  • Optimum heating level is adjustable from 0 to 100%.
  • Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
  • Precise temperature is set by digital display and optimum heating level is adjustable.
  • Advanced dual wait on/off timer modes.
    - User can set timer to starts immediately after the timer setting or only after reaching the set temp.
  • Separate operation RUN/STOP button.
  • Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
  • A transparent safety shield protects users from liquid splashes. (optional)
  • Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)

Safety

  • Built in thermal shut off and current limit protection.
  • High and low temperature limit setting for user convenience and safety.
  • Hot top warning indicator for preventing accidental injuries.
  • Keypad lock function prevents accidental changes during operation.

Document
Model T-14SG T-17SG T-18QG

Heating

Temperature range

(℃ / ℉)

Max. 350 / 662

Control

Feedback control with PID

Display

LED digital (0.1℃ resolution)

Heating power (W)

600

800

Safety

Hot top indicator

(℃ / ℉)

Warning lamp (50 / 122)

Over temp.

Top plate / Main body / PCB

Over current

Current limit protection

Timer

2 type, 1min. to 99 hr. 59 min.

Load, Max. (kg / Ibs)

25 / 55.1

Top plate

Shape

Round type

Square type

Material

Ceramic coated aluminum

Dimension
(Ø or WxD) (mm / inch)

140 / 5.5

170 / 6.7

180x180/ 7.08x7.08

Body

Shape

Straight body

Straight body

Straight body

Material

Aluminum

Dimension
(WxDxH) (mm / inch)

161x290x100/ 6.34x11.42x3.94

191x330x101/ 7.52x12.99x3.98

209x326x102/ 8.22x12.83x4.0

Net weight (kg / Ibs)

2.2 / 4.9

2.9 / 6.4

3.8 / 8.37

Electrical requirements (230V, 50/60Hz) 3.0 A 4.0 A
Cat. No. AAH35045K AAH35075K AAH35085K
Electrical requirements (120V, 60Hz) 5.0 A 6.7 A
Cat. No. AAH35043U AAH35073U AAH35083U

※ Permissible environmental conditions: temperature (5 - 40℃) and relative humidity (up to 80%).
※ CSA except for T-18Q. ※ RoHS for T-14S.



Magnetic stirring bars

  • Octahedral magnetic stirring bar

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW001513 8 / 0.31 13 / 0.51
    BCW001515 8 / 0.31 15 / 0.59
    BCW001522 8 / 0.31 22 / 0.86
    BCW001525 8 / 0.31 25 / 0.98
    BCW100528 8 / 0.31 28 / 0.10
    BCW001538 8 / 0.31 38 / 1.49
    BCW001541 8 / 0.31 41 / 1.61
    BCW001551 8 / 0.31 51 / 2.00
    BCW00155110 10 / 0.39 51 / 2.00

  • Cylindrical magnetic stirring bar

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW0011138 8 / 0.31 13 / 0.51
    BCW0011156 6 / 0.23 15 / 0.59
    BCW0011208 8 / 0.31 20 /  0.78
    BCW0011258 8 / 0.31 25 / 0.98
    BCW0011308 8 / 0.31 30 / 1.18
    BCW001140 8 / 0.31 40 / 1.57
    BCW001150 8 / 0.31 50 / 1.96

  • Oval magnetic stirring bar

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW001610 5 / 0.19 10 / 0.39
    BCW001615 6 / 0.23 15 / 0.59
    BCW001620 10 / 0.39 20 /  0.78
    BCW00162510 10 / 0.39 25 / 0.98
    BCW001630 16 / 0.63 30 / 1.18
    BCW001635 16 / 0.63 35 / 1.38
    BCW001640 20 / 0.78 40 / 1.57
    BCW001650 20 / 0.78 50 / 1.96

Plastic retrievers

  • Plastic retriever (PP) Plastic retriever (PTFE)

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW0041300 10 / 0.39 300 / 11.81
    BCW0041350 10 / 0.39 350 / 13.77
    BCW0041450 10 / 0.39 450 / 17.71

  • Plastic retriever (PTFE)

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW004150 10 / 0.39 150 / 5.90
    BCW004250 10 / 0.39 250 / 9.84
    BCW004350 10 / 0.39 350 / 13.77
    BCW004450 10 / 0.39 450 / 17.71

Support rod / Clamp holders

  • Support rod (M10)

  • Clamp holder (C-10)

  • Clamp holder (C-7)

  • Clamp holder (C-5)

Cat. No. Description
00MTT0000132 Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)
AAA37512 Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)
AAA37513 Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)
AAA37514 Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)
BEA1000014 2 Prong clamp (60mm / 2.36˝ grip)

for Hotplates / Hotplate Stirrers

  • Temperature probe

  • Heating bath

  • Transparent safety shield

  • Silicone Cover

Cat. No. Description Suitable for
AAA34501 Temperature Probe (PT 100, Max. 250℃, SN-8-4 connector sensor) TS series
AAA34502 Temperature Probe (PT 100, Max. 350℃, SN-8-4 connector sensor)
00HPS0000012 Heating Bath T-14SG/RB, TM-14SG/RB, TS-14SG
00HPS0000015 Heating Bath T-17SG/RB, TM-17SG/RB, TS-14SG
00HPS0000059 Transparent Safety Shield (PC) T-14SG/RB, TM-14SG/RB, TS-14SG
00HPS0000039 Transparent Safety Shield (PC) T-17SG/RB, TM-17SG/RB, TS-17SG
00HPS0000137 Sensor Holder (PP body, Hole 1: Ø11mm / Ø0.43˝, Hole 2: Ø10mm / Ø0.39˝, Hole 3: Ø4.2mm / Ø0.16˝) TS series
00HPS0000190 Silicone cover TS-14SG, TM-14SG, T-14SG


Heating Block (for Round Flask and Vial)

learn more >

  • Hard anodized surface is treated on aluminum block body, so there is no concern regarding discoloration and the durability is excellent.

  • Good contacting to flask surface with excellent thermal conductivity.

  • Various inserts (1 dram, 2 dram, 4 dram, 20ml, 30ml, 40ml) with vials of various capacities applicable.
