Storage

Laboratory Refrigerators

Ideal for research and industrial laboratories.

with optional recorder.

Model Name : CLG-150/300/650/850/1400


BROCHUREURL COPYInquiry Form


Performance

  • Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
  • High thermal efficiency evaporation system, made of low corrosive materials.
  • Optimizing defrost systems
    - Innovative auto-defrost system automatically activated- Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator for CLG-150, 300, 650.
    - None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.
  • None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.

Convenience

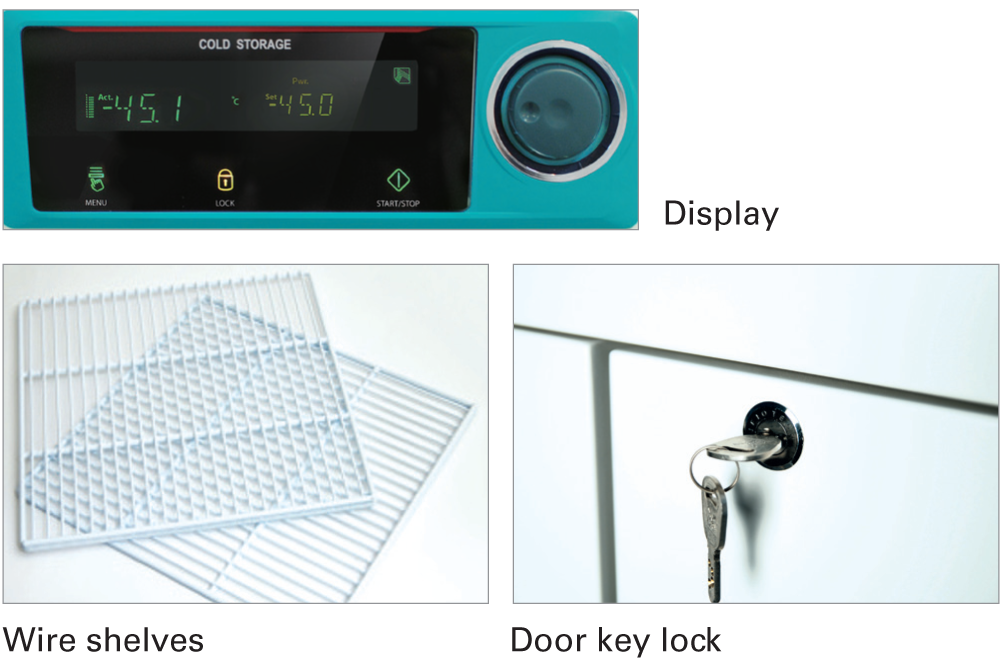

  • Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
    - Easy temperature unit conversion between ℃and ℉
  • Clear observation of stored samples.
    - Tempered glass door with built in heating wire. (for the models with glass doors only)
    - Built-in bright fluorescent lighting. (except for CLG-150)
  • High-quality 304 grade stainless steel interior.
  • Efficient internal space use with height adjustable wire shelves.
  • Built-in 50mm diameter cable port for external probes or wires. (except for CLG-150)
  • Dedicated stand with casters and stacking kit for CLG-150 for use in labs with limited space. (optional)

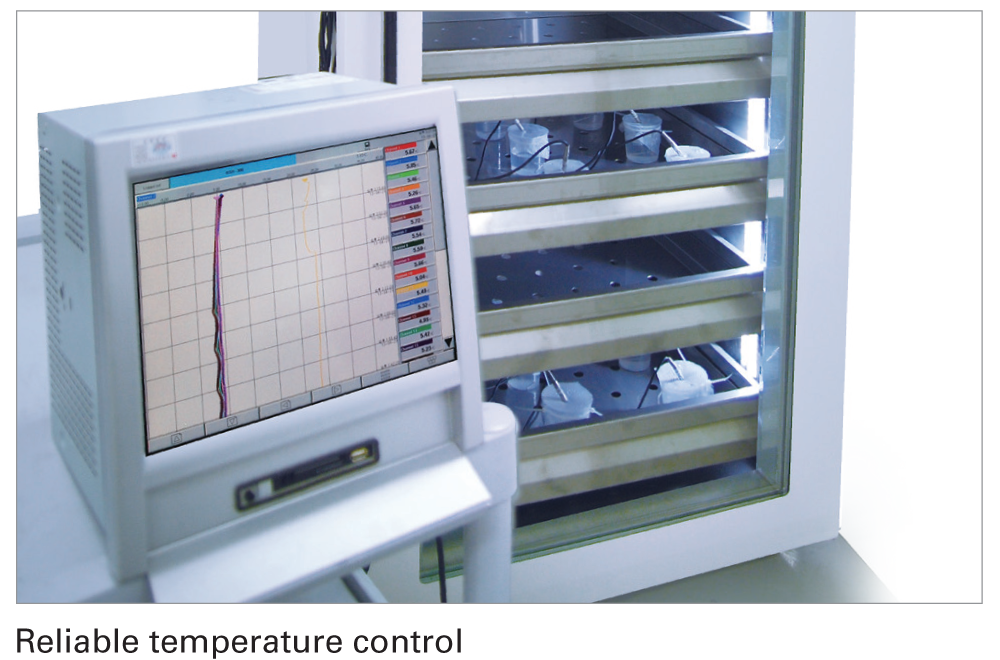

  • Three types of recorders to choose from (optional)
    - Dot recorder (6 point)
    - Chart recorder (6”, 24hr/7days)
    - Thermal line recorder

Safety

  • High/low temperature protection, Over current protection.
  • Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss.
  • Keypad lock function, Built in door lock with a key.

Model CLG3-70 CLG-150 CLG-300 CLG-650 CLG-850 CLG-1400
Temperature range (℃ / ℉) 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50 2 to 10 / 35.6 to 50
Chamber volume (L / cu ft) 73 / 2.6 156 / 5.5 303 / 10.7 603 / 21.3 805 / 28.4 1327 / 46.9
Dimension
Interior (W x D x H, mm / inch) 418 x 440 x 400
/ 16.5 x 17.3 x 15.7		 550×580×490 / 21.7×22.8×19.3 550x550x1000 / 21.7×21.7×39.4 650x640x1450 / 25.6×25.2×57.1 750x740x1450 / 29.5×29.1×57.1 1430x640x1450 / 56.3×25.2×57.1
Exterior (W x D x H, mm / inch) 522 x 600 x 725
/ 20.6 x 23.6 x 28.5		 683×791×870 / 26.9×31.1×34.4 670x770x1515 / 26.4×30.3×59.6 770x865x1965 / 30.3×34.1×77.4 870x965x1965 / 34.3×37.9×77.4 1550x865x1965 / 61×34.1×77.4
Net weight (kg / Ibs) 67 / 147.7 100 / 220.5 130 / 286.6 210 / 463 260 / 573.2 350 / 771.6
Shelf
Quantity of wire shelf (standard / max.) 2 / 3 2 / 6 3 / 11 3 / 17 3 / 17 6 / 34
Quantity of wire shelf (slide) (max.) - 4 7 11 11 22

Quantity of drawer shelf (slide) (max.)

 2 3 5 8 8 16

Load per shelf (kg / lbs)

30 / 66.1

 26 / 57.3

30 / 66.1

Fluorescent lamp

4.2W, 1ea

 - 18W, 1ea

18W, 1ea

 32W, 1ea 32W, 1ea
Electrical requirements (230V, 60Hz) 1.1A 2A 2.3 A 4A 5A 6A
Cat. No. Solid door - AAHE1001K AAHE1011K AAHE1021K AAHE1031K AAHE1041K
Glass door AAHE1301K AAHE1101K AAHE1111K AAHE1121K AAHE1131K AAHE1141K
Electrical requirements (230V, 50Hz) 1.1A 2A 2.3 A 4A 5A 6A
Cat. No. Solid door - AAHE1002K AAHE1012K AAHE1022K AAHE1032K AAHE1042K
Glass door AAHE1302K AAHE1102K AAHE1112K AAHE1122K AAHE1132K AAHE1142K
Electrical requirements (120V, 60Hz) 2.9A 4A 4.5 A 6.5 A 9A 13A
Cat. No. Solid door - AAHE1003U AAHE1013U AAHE1023U AAHE1033U AAHE1043U
Glass door AAHE1303U AAHE1103U AAHE1113U AAHE1123U AAHE1133U AAHE1143U


  • Wire shelves

  • Wire shelves (slide type)

  • Drawer shelves (slide type)

  • Dot recorder

  • Chart recorder

  • Thermal line recorder

for Laboratory Cooling

Cat. No. Description CLG-150 CLG-300 CLG-650 CLG-850 CLG-1400
AAAE1511 Wire shelves - flat type (included shelf bracket) ● ● - - -
AAAE1512 - - ● - ●
AAAE1513 - - - ● -
AAAE1514 Wire shelves - slide type(included guide rail) ● ● - - -
AAAE1515 - - ● - ●
AAAE1516 - - - ● -
AAAE1517 Drawer shelves - slide type(included guide rail) ● ● - - -
AAAE1518 - - ● - ●
AAAE1519 - - - ● -
AAA8T500 Recorder (dot type, 6 point) ● ● ● ● ●
AAAE1501 Recorder (chart type, 6”, 24hr / 7day) ● ● ● ● ●
AAAE1502 Chart recorder paper (6”60ea/1 package) ● ● ● ● ●
AAAE1503 Recorder (thermal line type) ● ● ● ● ●
AAAE1521 Cable port - ● ● ● ●
AAAE1531 Electric outlet (120V-US style) - ● ● ● ●
AAAE1532 Electric outlet (230V-Korea style) - ● ● ● ●

Cryo box / Storage box

Cryo box is designed for ultra-low temperature storage of biological materials. (heat resistance : -196°C to 121°C)
Storage box is suitable for storage of samples in general conditions. (heat resistance: 20°C to 121°C)


  • Cryo box

  • Storage box

Cat. No. Description Dimension
(W×D×H) (mm / inch)
AAAJ7001 Cryo box (PC, 1.2 to 2.0ml tubes x 25) 77×77×53 / 3.0×3.0×2.1
AAAJ7002 Cryo box (PC, 1.2 to 2.0ml tubes x 81) 132×132×54 / 5.2×5.2×2.1
AAAJ7003 Cryo box (PC, 5ml tubes x 81) 132×132×96 / 5.2×5.2×3.8
AAAJ7011 Storage box (PP, 1.2 to 2.0ml tubes x 100) 140×140×53 / 5.5×5.5×2.1
