Mixers

Magnetic Stirrers (Digital)

Powerful magnets and motors guarantee a high-speed and a goodmanagement of the devices.

Model Name : MS-17G/22G


BROCHUREURL COPYInquiry Form

Performance & Convenience

  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Spark-less, silent and durable BLDC motor.
  • Wide top plate.
  • Two non-slip silicone plate covers (white & black) provided.
  • Non-slip strength rubber feet.
  • Strong magnetic coupling to ensure constant stirring.
  • Digital PID feedback control for reproducible stirring results.
  • Convenient program control.
  • Gradual start-up to protect users against splashing of samples.
  • Bright and vivid VFD and responsive touch buttons.
  • Easy-settable digital timer (1 min. to 99hr. 59min.)
  • M10 threaded hole to hold a support rod.

Safety

  • Unit is safely designed to protect internal components from accidental spills.
  • Built-in thermal shutdown and current limit protection.

Model MS-17G MS-22G
Technical data Speed control Feedback control with PID
Stirring capacity (Liter, H2O) 4 5
Speed range (rpm) 30 to 2,000
Speed display VFD
Motor rating input / output (W) 2.9 / 1.6
Magnetic bar, Max. (Ø×L) (mm / inch) 8×40 / 0.31×1.57 10×50 / 0.39×1.97
Load, Max (kg / lbs) 20 / 44.09 25 / 55.12
Top plate Material Polypropylene with non-slip silicon cover
Dimension (Ø, mm / inch) 170 / 6.69 220 / 8.66
General data Body material Polypropylene
Dimension (W×D×H) (mm / inch) 210×280×72 / 8.3×11×2.8 260×355×72 / 10.2×14×2.8
Net weight (kg / lbs) 1.35 / 2.98 1.75 / 3.86
Electrical requirements AC 100 ~ 240V, 50 / 60Hz
Power consumption (W) 6
Protection class (DIN EN 60529) IP42
Cat. No. Persian blue KR plug AAH331215BK AAH331315BK
US plug AAH331215BU AAH331315BU
Yellow KR plug AAH331215YK AAH331315YK
US plug AAH331215YU AAH331315YU


Magnetic stirring bars

  • Octahedral magnetic stirring bar

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW001513 8 / 0.31 13 / 0.51
    BCW001515 8 / 0.31 15 / 0.59
    BCW001522 8 / 0.31 22 / 0.86
    BCW001525 8 / 0.31 25 / 0.98
    BCW001528 8 / 0.31 28 / 0.10
    BCW001538 8 / 0.31 38 / 1.49
    BCW001541 8 / 0.31 41 / 1.61
    BCW001551 8 / 0.31 51 / 2.00
    BCW00155110 10 / 0.39 51 / 2.00

  • Cylindrical magnetic stirring bar

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW0011138 8 / 0.31 13 / 0.51
    BCW0011156 6 / 0.23 15 / 0.59
    BCW0011208 8 / 0.31 20 /  0.78
    BCW0011258 8 / 0.31 25 / 0.98
    BCW0011308 8 / 0.31 30 / 1.18
    BCW001140 8 / 0.31 40 / 1.57
    BCW001150 8 / 0.31 50 / 1.96

  • Oval magnetic stirring bar

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW001610 5 / 0.19 10 / 0.39
    BCW001615 6 / 0.23 15 / 0.59
    BCW001620 10 / 0.39 20 /  0.78
    BCW00162510 10 / 0.39 25 / 0.98
    BCW001630 16 / 0.63 30 / 1.18
    BCW001635 16 / 0.63 35 / 1.38
    BCW001640 20 / 0.78 40 / 1.57
    BCW001650 20 / 0.78 50 / 1.96

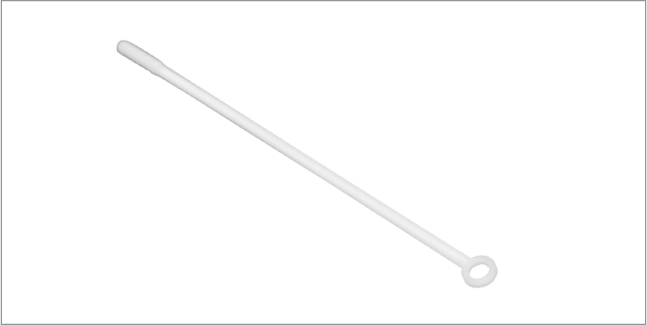

Plastic retrievers

  • Plastic retriever (PP) Plastic retriever (PTFE)

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW0041300 10 / 0.39 300 / 11.81
    BCW0041350 10 / 0.39 350 / 13.77
    BCW0041450 10 / 0.39 450 / 17.71

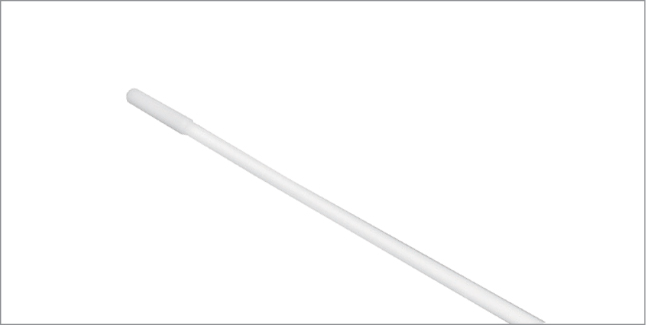

  • Plastic retriever (PTFE)

    Cat. No. Ø (mm / inch) L (mm / inch)
    BCW004150 10 / 0.39 150 / 5.90
    BCW004250 10 / 0.39 250 / 9.84
    BCW004350 10 / 0.39 350 / 13.77
    BCW004450 10 / 0.39 450 / 17.71

Support rod / Clamp holders

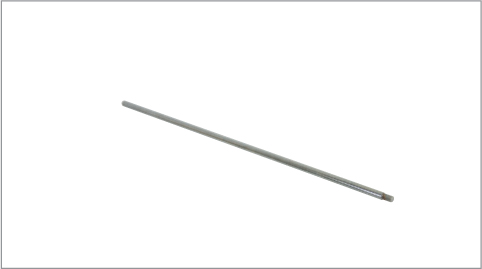

  • Support rod (M10)

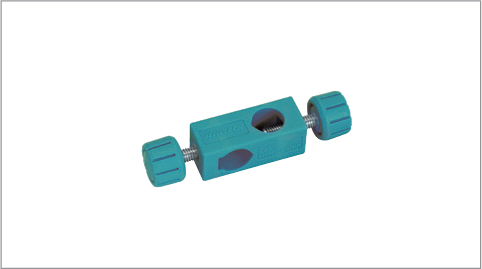

  • Clamp holder (C-10)

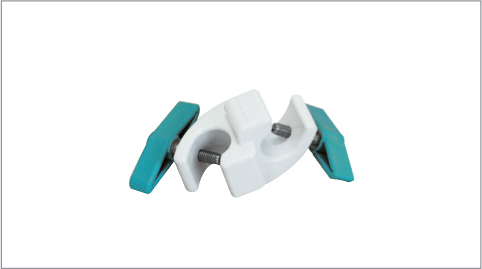

  • Clamp holder (C-7)

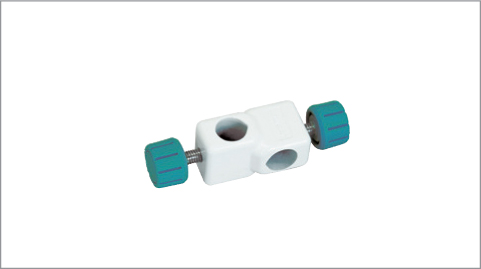

  • Clamp holder (C-5)

Cat. No. Description
00MTT0000132 Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)
AAA37512 Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)
AAA37513 Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)
AAA37514 Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)
BEA1000014 2 Prong clamp (60mm / 2.36˝ grip)

for Plate cover  /  Silicone pad  /  Power divider

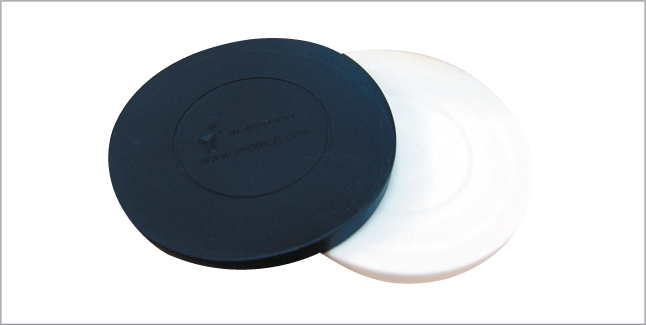

  • Plate covers (black & white)

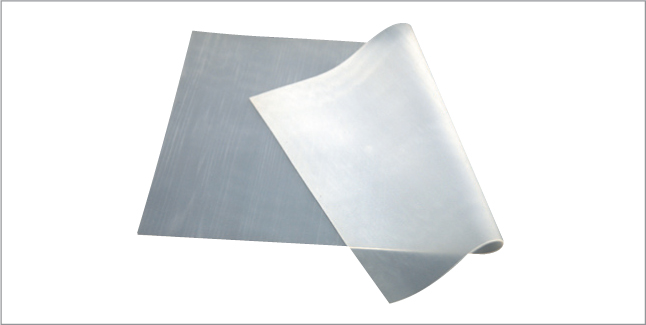

  • Silicone pad

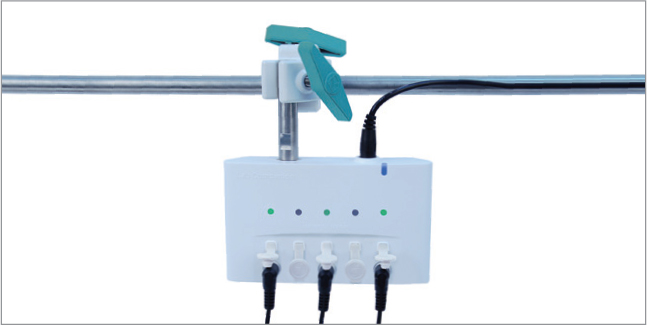

  • Power divider (5 channels*)

Cat. No. Description Suitable for
00MTT0000144 Plate cover (White color, Silicone Ø115mm / Ø4.53˝) MS-12T
00MTT0000146 Plate cover (White color, Silicone Ø165mm / Ø6.49˝) MS-17T
00MTT0000002 Plate cover (White color, Silicone Ø120mm / Ø4.72˝) MS-12B
00MTT0000003 Plate cover (White color, Silicone Ø170mm / Ø6.69˝) MS-17B/G
00MTT0000004 Plate cover (White color, Silicone Ø220mm / Ø8.66˝) MS-22B/G
00MTT0000143 Plate cover (Black color, Silicone Ø115mm / Ø4.53˝) MS-12T
00MTT0000145 Plate cover (Black color, Silicone Ø165mm / Ø6.49˝) MS-17T
00MTT0000005 Plate cover (Black color, Silicone Ø120mm / Ø4.72˝) MS-12B
00MTT0000006 Plate cover (Black color, Silicone Ø170mm / Ø6.69˝) MS-17B/G
00MTT0000007 Plate cover (Black color, Silicone Ø220mm / Ø8.66˝) MS-22B/G
00MTS0000015 Silicone pad (355×475×1mm / 13.98x18.70x0.04˝) MS-53M
00MTS0000016 Silicone pad (235×475×1mm / 9.25x18.70x0.04˝) MS-52M
00MTS0000017 Silicone pad (115×475×1mm / 4.53x18.70x0.04˝) MS-51M
00MTS0000041 Silicone pad (235×310×1mm / 9.25x12.20x0.04˝) MS-32M
00MTS0000042 Silicone pad (355×310×1mm / 13.98x12.20x0.04˝) MS-23M/33M
00MTT0000001 Power adapter (100~240V, 50/60Hz) MS-12B/T, MS-17B/T
AAH33501 Power divider (5 channels) 1)   with M10 rod, adapter(100~240V, 50/60Hz), five DC plugs

1) Power supply to max. five units at the same time.
