Desiccators

Vacuum Desiccators (Cylindrical)

Newly designed cylindrical desiccators are used by ideal for storing tall equipment.

With optional Gauge

Model Name : VDP-25/25G/25U/25GU
VDP-30/30G/30U/30GU


  • Maximum vacuum of 1 Torr (1.33×10-4 Mpa) for more than 72 hours
  • High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
  • Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.

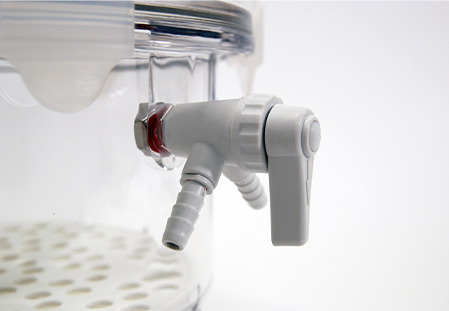

  • Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.

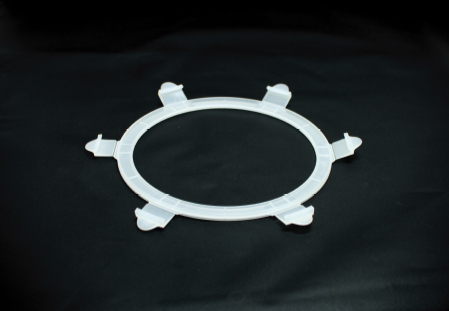

  • Flange lock holding the top and the bottom together during non-vacuum conditions.
  • Various models available with respect to sizes and UVblocking effect.
  • Minimizing damages or discoloration of light-sensitive samples (for U/UG models).
  • A vacuum gauge attachable at the center of the lid for easy vacuum level checking (for G/UG models).
  • The top and bottom of round vacuum desiccators and cylindrical vacuum desiccators are compatible with each other for diverse use.
  • ※ RoHS except for VDP-U models.

Model 1) VDP-25/25G VDP-25U/25UG VDP-30/30G VDP-30U/30UG

Internal volume (L / cu ft)

16 / 0.6

25 / 0.9

Gauge range (Mpa)

0 to -0.1

Nozzle (mm / inch, Ø)

9.5 / 0.37

Max. permissible vacuum (Bodies)

1.33×10-4 Mpa

Material

Body / Base

Polycarbonate

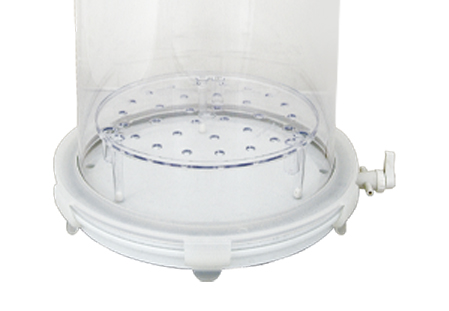

Perforated sample tray

Locker

Polypropylene

Vacuum seal

Silicone rubber

Dimension (I.D. × H)

Exterior (mm / inch)

Ø308×374(449) / Ø12.1×14.7(17.7)

Ø385×384(459) / Ø15.2×15.1(18.1)

Net weight (kg / lbs)

2.7 / 5.9

4.0 / 8.8

Cat. No.

Clear body

AAAD3011 AAAD3021

Clear body with Vacuum gauge (G)

AAAD3111 AAAD3121

UV block effect body (U)

AAAD3211 AAAD3221

UV block effect body with Vacuum gauge (UG)

AAAD3311 AAAD3321

1) G models come standard with a vacuum gauge
U models are translucent(amber-colored) vacuum desiccators with ultraviolet block effect.
※ RoHS except for VDP-U models.

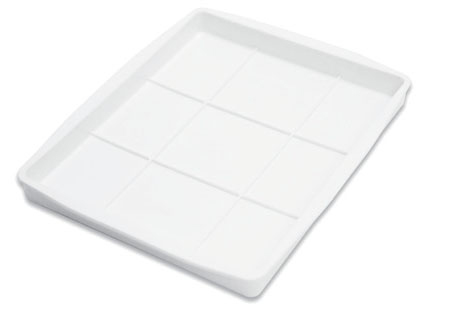

  • Drying agent tray
    for VDC

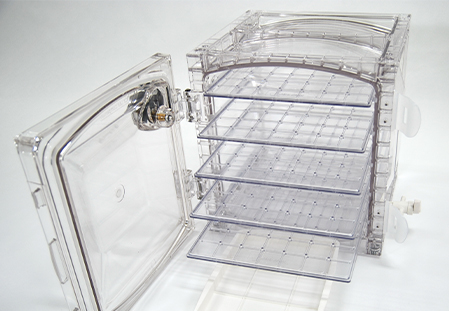

  • Perforated sample tray
    for VDC

  • Drying agent tray
    for VDR

  • Perforated sample tray
    for VDR

for Vacuum Desiccators (Cubic models)


Cat. No. Description VDC-11/11U VDC-21/21U VDC-31/31U VDC-41/41U
00VDC0000035 Perforated sample tray - - -
00VDC0000003 -
00VDC0000037 Drying agent tray - - -
00VDC0000005 -
00VDC0000032 Vacuum seal - - -
00VDC0000033 - - -
00VDC0000015 - - -
00VDC0000034 - - -

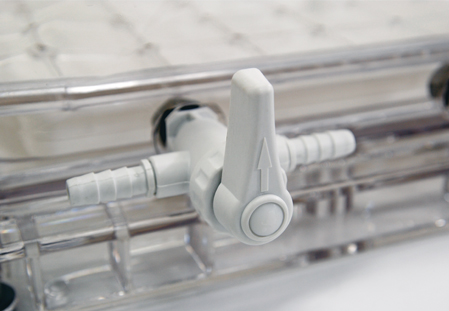

AAAD4501 Stopcock
00EDA0004301 Vacuum gauge

for Vacuum Desiccators (Round & Cylindrical models)


Cat. No. Description VDR-20/20G VDR-20U/20UG VDR-25/25G VDR-25U/25UG VDR-30/30G VDR-30U/30UG VDP-25/25G VDP-25U/25UG VDP-30/30G VDP-30U/30UG
AAAD1501 Drying agent tray - - - -
AAAD1502 - - -
AAAD1503 - - -
AAAD1511 Perforated sample tray - - - -
AAAD1512 - - - -
AAAD1513 - - - -
AAAD3511 - - - -
AAAD3512 - - - -
00VDR0000001 Vacuum seal - - - -
00VDR0000002 - - -
00VDR0000055 - - -
00VDR0000015 Flange locker - - - -
00VDR0000016 - - -
00VDR0000017 - - -
AAAD1521 Stopcock - -
AAAD3501 - - -
00EDA0004302 Vacuum gauge
