Storage

Desiccators (Cubic Models)

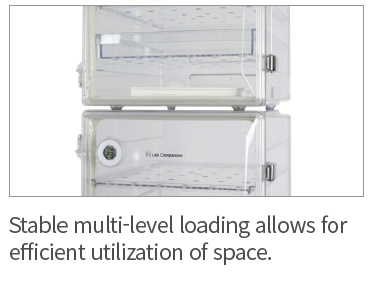

Stackable unit design provides space efficiency in daily use.

Transparent polycarbonate desiccators are designed for easy viewing of desiccant and vessels.

Model Name : SDC-30/30U
SDC-45/45U

BROCHURE URL COPY Inquiry Form

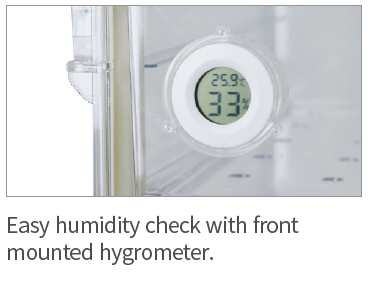

Hygrometer included

Very convenient as equipped with a hygrometer to check the internal humidity from the front. (Reference type)

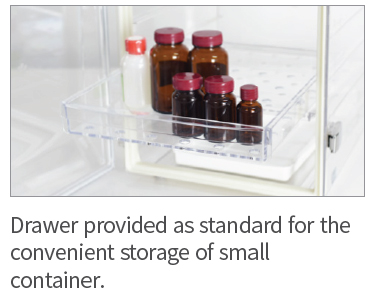

Height-adjustable drawer

Height of drawer can be adjusted according to the shape and size of stored material.

Transparent observation environment

Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.

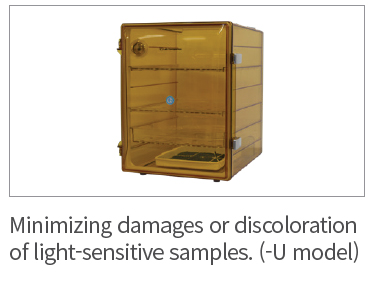

UV blocking model

UV blocking model provided for vacuum storage of light-sensitive samples.

Desiccant Tray

Includes a dedicated tray made of PP as standard that the user can conveniently place a dessicant in.

Model	Clear type	SDC-30 ¹⁾	SDC-45 ¹⁾
Model	UV protection type	SDC-30U ¹⁾	SDC-45U ¹⁾
Internal volume (L / cu ft)		35 / 1.2	50 / 1.8
Dimension	Internal (W×D×H, mm / inch)	322x367x302 / 12.7x14.4x11.9	322x367x422 / 12.7x14.4x16.6
	Exterior (W×D×H, mm / inch)	360×410×326 / 14.1×16.1×12.8	360×410×447 / 14.1×16.1×17.6
	Shelf (W×D×H, mm / inch)	279×354×3 / 11.0×13.9×0.1	279×354×3 / 11.0×13.9×0.1
	Drawer (W×D×H, mm / inch)	279×346×45 / 11.0×13.6×1.8	279×346×45 / 11.0×13.6×1.8
	Desiccant tray(W×D×H, mm / inch)	218×268×26 / 8.6×10.6×1.0	218×268×26 / 8.6×10.6×1.0
	Net weight (kg / lbs)	4.9 / 10.8	6.2 / 13.7
Drawers	Quantity (Standard / max.)	2 / 4	3 / 6
Drawers	Max. load per drawer ((kg / lbs)	5 / 11.0	5 / 11.0
Cat. No.	Clear type	AAAD5011	AAAD5021
Cat. No.	UV protection type	AAAD5111	AAAD5121

1) The deviation of the fitted hygrometers will be between 10 and 20%. The measuring of accurate humidity percentage should be needed a extra equipment.

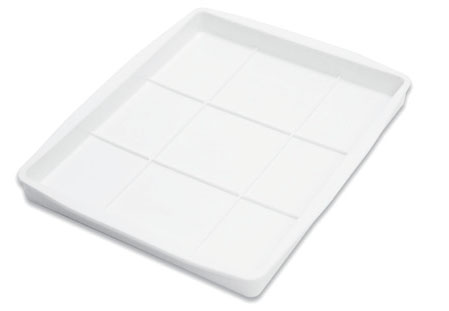

Desiccant tray

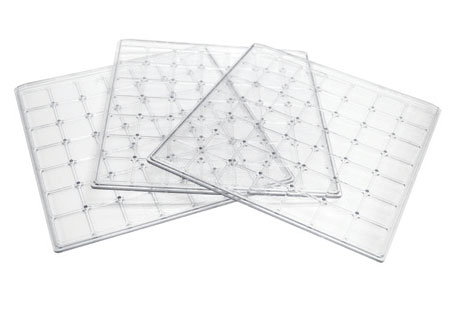

Perforated shelf

Cat. No.	Description	SDC-30	SDC-45
00VDC0000005	Desiccant tray
AAAD5531	Perforated shelf
AAAD5521	Drawer
