Refrigerators & Freezers

Filtering Storage Refrigerator (FSR)

Strong deodorization function to remove hazardous gas from refrigerator and uniform temperature.(Refrigeration temperature 0-15°C)

Model Name : FSR-650G/1400G

BROCHURE URL COPY Inquiry Form

By circulating the air from the bottom of the storage to the filter at the top, hazardous gas removal and uniform temperature are provided.

Optimized air flow

Excellent temperature uniformity and effective removal of hazardous gas through uniform air circulation throughout the cabinet.

Brightness control LED lamp

Easy to observe the inside with LED lamp, and possible to adjust the brightness to 5 levels.

Filter check notification function

Filter maintenance notification function of 1-24 month cycle makes it easy to manage the filter according to the usage environment.

Real-time monitoring (Option)

Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.
(when purchased LC GreenBox)

Easy to use as a drawer-type shelf

Drawer-type shelf for convenient handling of inner samples installed as standard.

Structure convenient for moving and installation

Structure allows it to be moved and fixed and it can be also be safely installed horizontally.

JEIO TECH exclusive controller

Easy to use with touch, and displays useful information in real time such as VOC, temperature, humidity, filter check notifications, etc.

Filter configuration customizable for application

Various custom filter configurations supported depending on the chemical nature of the reagents to be stored.

Model		FSR-650G	FSR-1400G
Temperature range (℃ / ℉)		0 ~ 15 / 32 ~ 59	0 ~ 15 / 32 ~ 59
volume	Capacity (1 L bottle *ea)	100	200
volume	Internal volume(L / cu ft)	660 / 23.3	1327 / 46.7
Dimensions	External (WⅹDⅹH, mm / inch)	770 x 850 x 1955 / 30.3 x 33.5 x 77	1550 x 850 x 1955 / 61 x 33.5 x 77
	Internal (WⅹDⅹH, mm / inch)	650 x 640 x 1450 / 25.6 x 25.2 x 57.1	1430 x 700 x 1450 / 56.3 x 27.6 x 57.1
	Drawer (WⅹDⅹH, mm / inch)	600 x 595 x 100 / 23.6 x 23.4 x 3.9	500 x 595 x 100 / 19.7 x 23.4 x 3.9
	Spill tray (WⅹDⅹH, mm / inch)	602 x 550 x 35 / 23.7 x 21.7 x 1.4, 1ea	602 x 550 x 35 / 23.7 x 21.7 x 1.4, 2ea
Quantity of drawer (standard/max.)		4 / 8	8 / 16
Weight (kg / lbs)		320 / 705.5	640 / 1411
230V/60Hz, A		3	4
Cat. No.		AAHF13112K	AAHF13122K
230V/50Hz, A		3	4
Cat. No.		AAHF13112K	AAHF13122K
120V/60Hz, A		3.7	7.3
Cat. No.		AAHF13113U	AAHF13123U

Lab Companion's Filter Series

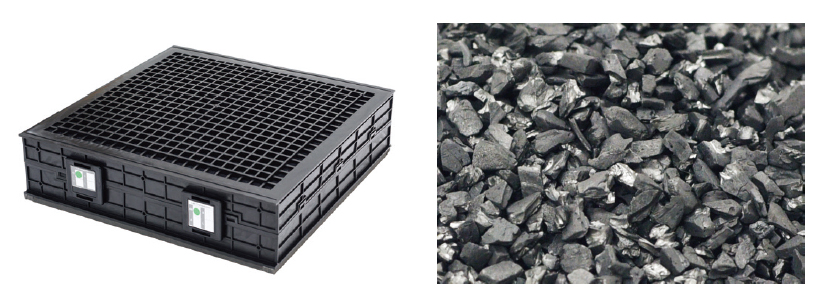

The JEIO TECH carbon filter is an excellent amorphous adsorbent with a high surface area, has fine pores and is manufactured through a multi-level impregnation process.
Made of 100% impregnated filter, it is more than twice as efficient as general filters.
Has the efficiency of an excellent composite filter as it simultaneously performs physical adsorption and chemical adsorption.

Electron microscopic photographs of JEIO TECH's carbon filter confirms development of numerous pores such as Macropores (diameter of more than 500Å), Mesopores (diameter of 20-500Å), and Micropores (diameter of 20Å or less).

Filter	Description	Cat. No.
Complex Carbon	Filters a wide range of chemicals, including acid, ammonia, and aldehyde.	AAAB6354
Acid	Filters acid gases such as HCl, HF, H2S and CH3COOH	AAAB6356
Formaldehyde	Filters formaldehyde, Acete aldehyde, etc.	AAAB6358
Ammonia / Amines	Filters Basic Gases Such As NH3, (CH3)3N etc.	AAAB6359
HEPA	Filters 99.99% of toxic dust and other 0.3μ m particles	AAAB6353

※ The appropriate filter is selected according to the chemical used.
※ Built-in pre-filter primarily filters particles to extend the life of the other filters.

LC GreenBox

Real-time monitoring of device operation via mobile app
Up to 4 devices can be connected

Model	Description	Dimension (W x D x H, mm)	Cat. No.
JGW-4	LC GreenBox	156 x 94 x 34	AAHQ1011K

Additional fitting of drawer-type shelves

Description	Cat. No.
Drawer shelf (slide) set	AAAF1511
