Fume Hoods

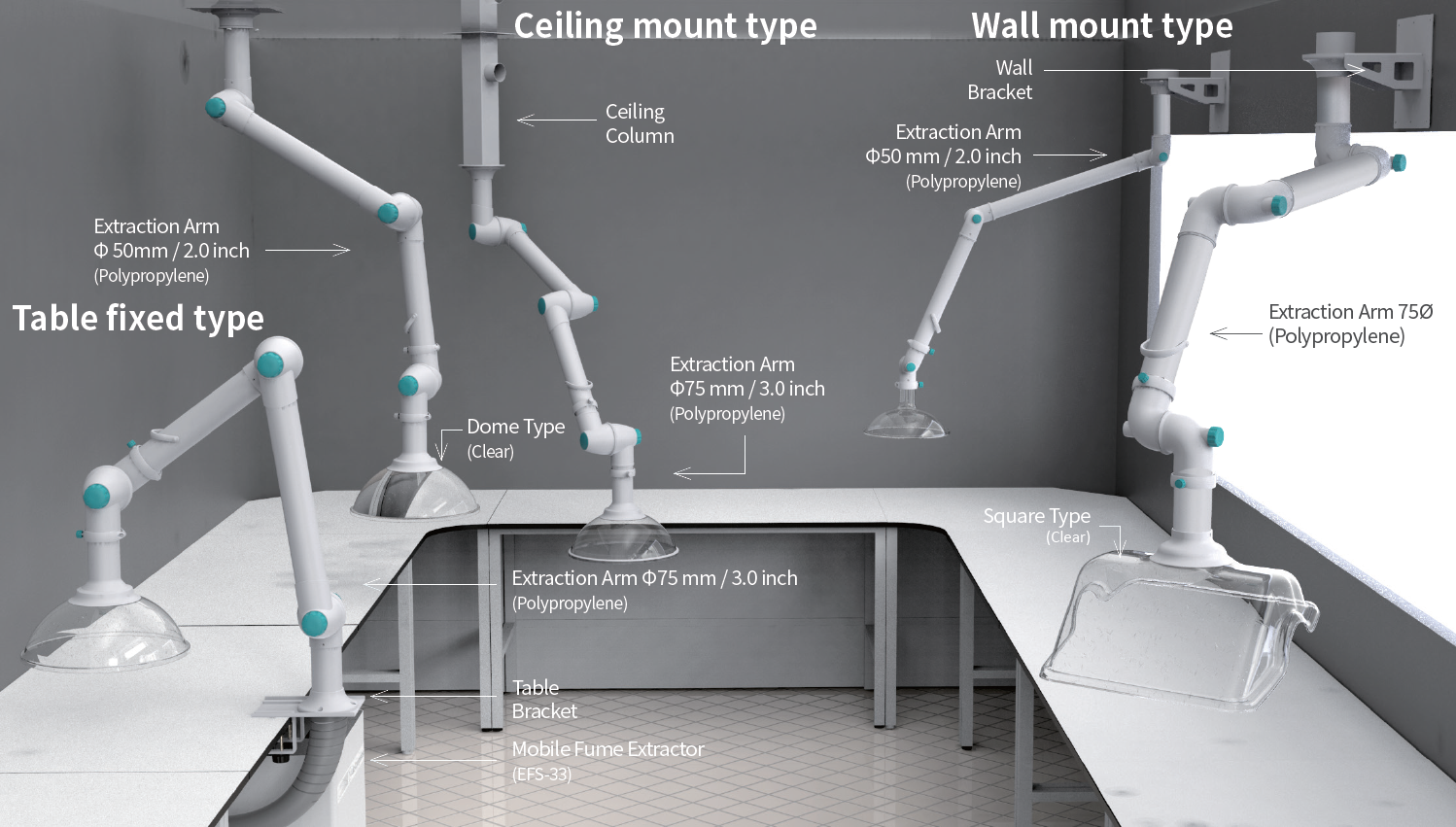

Extraction Arm Hoods

The best solutions for eliminating dust and fume hazards at source.

With optional bracket

Model Name : AH-75 (2/3 joints)

BROCHUREURL COPYInquiry Form

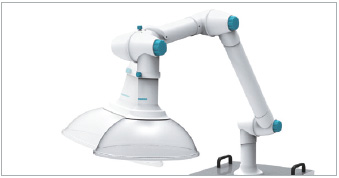

  • Quick tilt-adjustable knob

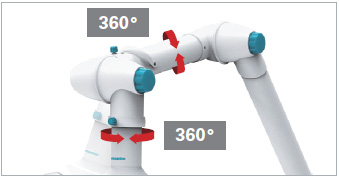

  • 360° rotatable joint

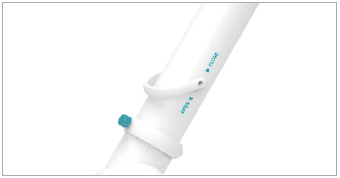

  • Damper for airflow rate adjustment

Step 1. Extraction Arm


Type Description
Material Polypropylene Excellent chemical resistance
Anodized Aluminum 1) Lightweight, General use
Diameter 50 mm For fine work
75mm 2) Lightweight, General use
Joint 2 Joint Radius 840 ~ 1140 mm / 33.1 ~ 44.9 inch
3 Joint Radius 1480 ~ 1780 mm / 58.3 ~ 70.1 inch

1) Weak against scratching due to the nature of the material.

2) 75mm radius used in the case of mist.

Specification

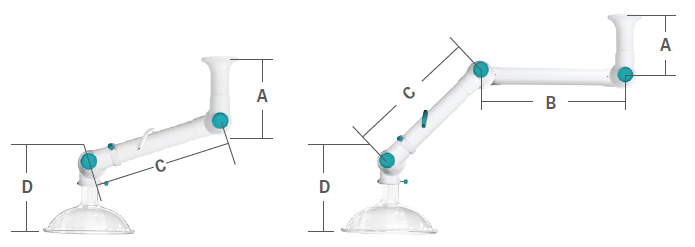

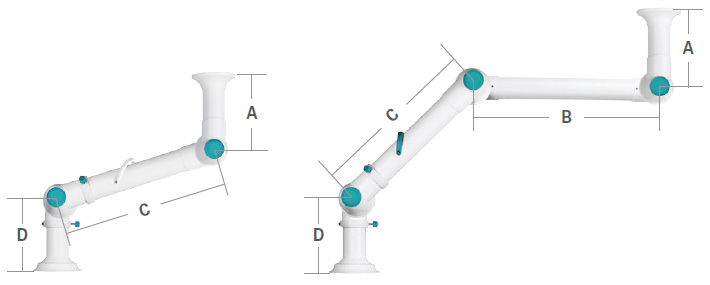

Model Extraction Arm, Length (mm / inch) Weight
(kg / lbs)		 Cat. No.
A B C D Total
75mm / 3.0 inch diameter,Polypropylene 2 Joints AH-2100 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.75 / 3.9 AAAB6511
3 Joints AH-3160 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.4 / 5.3 AAAB6541
75mm / 3.0 inch diameter,Polypropylene, Ceiling mount type 2 Joints AH-2100C 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 40.9 1.75 / 3.9 AAAB6524
3 Joints AH-3160C 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.4 / 5.3 AAAB6542
75mm / 3.0 inch diameter,Anodized Aluminum 2 Joints AH-2100A 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.9 / 4.2 AAAB6523
3 Joints AH-3160A 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.6 / 5.7 AAAB6533
75mm / 3.0 inch diameter,Anodized Aluminum Ceiling mount type 2 Joints AH75-2100AC 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.9 / 4.2 AAAB6526
3 Joints AH75-3160AC 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.6 / 5.7 AAAAB6537
50mm / 2.0 inch diameter,Polypropylene 2 Joints AH5-2110 250 / 9.8 N/A 640 / 25.2 250 / 9.8 1140 / 44.8 1.0 / 2.2 AAAB6554
3 Joints AH5-3160 250 / 9.8 9.8 640 / 25.2 540 / 21.3 250 / 9.8 1680 / 66.1 1.4 / 3.1 AAAB6563
50mm / 2.0 inch diameter,Polypropylene,Ceiling mount type 2 Joints AH5-2110C 250 / 9.8 N/A 640 / 25.2 250 / 9.8 1140 / 44.8 1.0 / 2.2 AAAB6555
3 Joints AH5-3160C 250 / 9.8 640 / 25.2 540 / 21.3 250 / 9.8 1680 / 66.1 1.4 / 3.1 AAAB6566

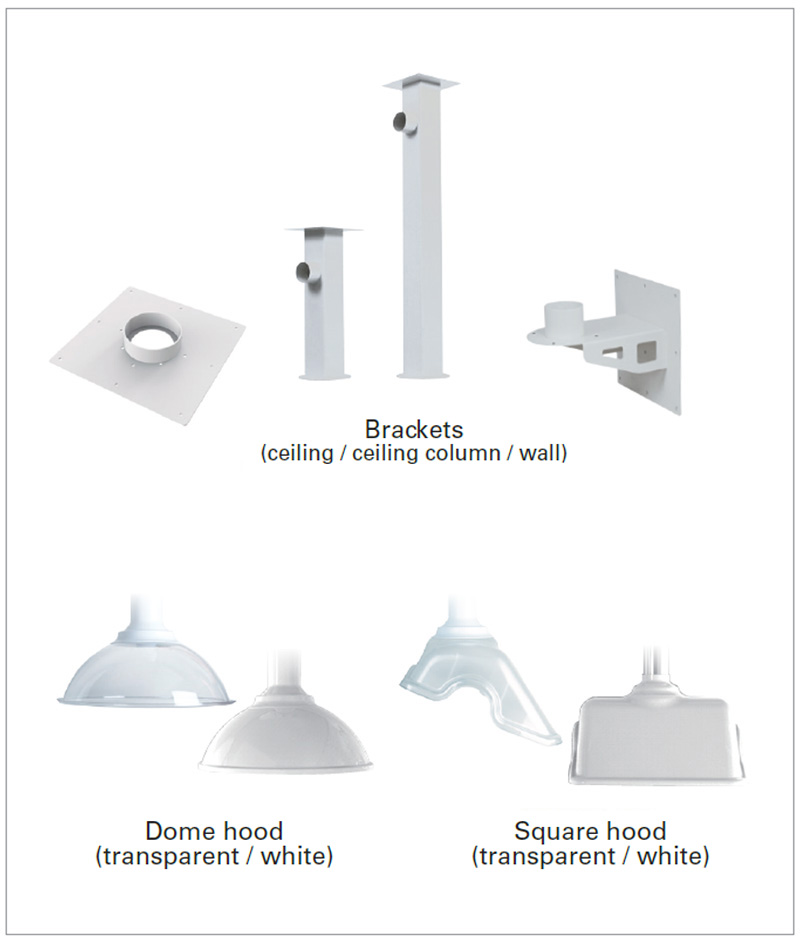

Step 2. Bracket & Column

  • Column of suitable height is selected based on the ceiling height.
  • Excellent durability due to powder coating.



Specification

Model Dimension (W x D x H, mm / inch) Suitable for (mm/inch) Cat. No.
Ceiling Bracket 260 x 260 x 2 / 10.2 x 10.2 x 0.08 75 / 3.0 AAAB6508
Ceiling Column 100 x 100 x 250 / 3.9 x 3.9 x 9.8 75 / 3.0, 50 / 2.0 AAAB6512
100 x 100 x 500 / 3.9 x 3.9 x 19.7 AAAB6513
100 x 100 x 750 / 3.9 x 3.9 x 29.5 AAAB6514
100 x 100 x 1000 / 3.9 x 3.9 x 39.4 AAAB6515
100 x 100 x 1250 / 3.9 x 3.9 x 49.2 AAAB6516
100 x 100 x 1500 / 3.9 x 3.9 x 59.1 AAAB6517
Wall Bracket 158 x 259 x 82 / 6.2 x 10.2 x 3.2 75 / 3.0 AAAB6510

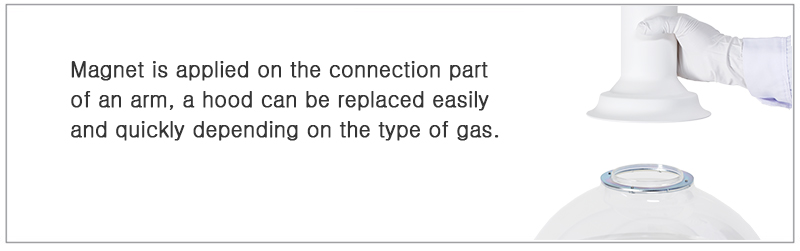

Step 3. Hood

Type Material Description
Basic type Polypropylene
  • ·When the emission range of the source is narrow.
  • ·When the source can be collected at close range.
Dome type (Clear) Styrene butadiene copolymer
  • ·When the emission range of the source is wide.
  • ·Used for capturing light gas.
Dome type (White) Polypropylene
Square type (Clear) Styrene butadiene copolymer
  • ·When heavy gas is collected, one side is supported on the table and used like a shield.
Square type (White) Polypropylene

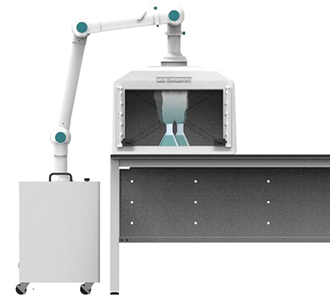

Hood type (White) Polyethylene
  • ·Compact total hood form, securely blocking the user's gas inhalation.

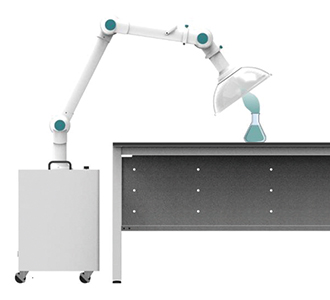

  • Dome type

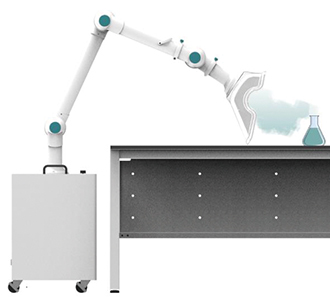

  • Square type

  • Hood type

Specification

Diameter Type Dimension Color Material Cat. No.
Φ75 mm/ 3.0 inch Basic (Ø, mm / inch) 171 / 6.7 White Polypropylene Standard
Dome (Ø x H, mm / inch) 400 x 140 / 15.7 x 5.5 White Polypropylene AAAB6221
Clear Styrene butadiene copolymer AAAB6211
Square (W x D x H, mm / inch) 494 x 390 x 245 / 19.4 x 15.4 x 9.6 White Polypropylene AAAB6241
Clear Styrene butadiene copolymer AAAB6231
Φ50 mm / 2.0 inch Dome (Ø x H, mm / inch) 294 x 180 / 11.6 x 7.1 White Polypropylene Clear Dome (Standard)
(Optional White Dome)
Clear Styrene butadiene copolymer

※ Ø75 Basic hood is provided as an integral part of the extraction arm and is used for suction of small volumes of material in confined spaces.
※ Ø50 Dome hood is provided as standard on the extraction arm.




  • Quick tilt-adjustable knob

  • 360° rotatable joint

  • Damper for airflow rate adjustment

Step 1. Extraction Arm


Type Description
Material Polypropylene Excellent chemical resistance
Anodized Aluminum 1) Lightweight, General use
Diameter 50 mm For fine work
75mm 2) Lightweight, General use
Joint 2 Joint Radius 840 ~ 1140 mm / 33.1 ~ 44.9 inch
3 Joint Radius 1480 ~ 1780 mm / 58.3 ~ 70.1 inch

1) Weak against scratching due to the nature of the material.

2) 75mm radius used in the case of mist.

Specification

Model Extraction Arm, Length (mm / inch) Weight
(kg / lbs)		 Cat. No.
A B C D Total
75mm / 3.0 inch diameter,Polypropylene 2 Joints AH-2100 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.75 / 3.9 AAAB6511
3 Joints AH-3160 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.4 / 5.3 AAAB6541
75mm / 3.0 inch diameter,Polypropylene, Ceiling mount type 2 Joints AH-2100C 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 40.9 1.75 / 3.9 AAAB6524
3 Joints AH-3160C 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.4 / 5.3 AAAB6542
75mm / 3.0 inch diameter,Anodized Aluminum 2 Joints AH-2100A 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.9 / 4.2 AAAB6523
3 Joints AH-3160A 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.6 / 5.7 AAAB6533
75mm / 3.0 inch diameter,Anodized Aluminum Ceiling mount type 2 Joints AH75-2100AC 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.9 / 4.2 AAAB6526
3 Joints AH75-3160AC 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.6 / 5.7 AAAAB6537
50mm / 2.0 inch diameter,Polypropylene 2 Joints AH5-2110 250 / 9.8 N/A 640 / 25.2 250 / 9.8 1140 / 44.8 1.0 / 2.2 AAAB6554
3 Joints AH5-3160 250 / 9.8 9.8 640 / 25.2 540 / 21.3 250 / 9.8 1680 / 66.1 1.4 / 3.1 AAAB6563
50mm / 2.0 inch diameter,Polypropylene,Ceiling mount type 2 Joints AH5-2110C 250 / 9.8 N/A 640 / 25.2 250 / 9.8 1140 / 44.8 1.0 / 2.2 AAAB6555
3 Joints AH5-3160C 250 / 9.8 640 / 25.2 540 / 21.3 250 / 9.8 1680 / 66.1 1.4 / 3.1 AAAB6566

Step 2. Bracket & Column

  • Column of suitable height is selected based on the ceiling height.
  • Excellent durability due to powder coating.



Specification

Model Dimension (W x D x H, mm / inch) Suitable for (mm/inch) Cat. No.
Ceiling Bracket 260 x 260 x 2 / 10.2 x 10.2 x 0.08 75 / 3.0 AAAB6508
Ceiling Column 100 x 100 x 250 / 3.9 x 3.9 x 9.8 75 / 3.0, 50 / 2.0 AAAB6512
100 x 100 x 500 / 3.9 x 3.9 x 19.7 AAAB6513
100 x 100 x 750 / 3.9 x 3.9 x 29.5 AAAB6514
100 x 100 x 1000 / 3.9 x 3.9 x 39.4 AAAB6515
100 x 100 x 1250 / 3.9 x 3.9 x 49.2 AAAB6516
100 x 100 x 1500 / 3.9 x 3.9 x 59.1 AAAB6517
Wall Bracket 158 x 259 x 82 / 6.2 x 10.2 x 3.2 75 / 3.0 AAAB6510

Step 3. Hood

Type Material Description
Basic type Polypropylene
  • ·When the emission range of the source is narrow.
  • ·When the source can be collected at close range.
Dome type (Clear) Styrene butadiene copolymer
  • ·When the emission range of the source is wide.
  • ·Used for capturing light gas.
Dome type (White) Polypropylene
Square type (Clear) Styrene butadiene copolymer
  • ·When heavy gas is collected, one side is supported on the table and used like a shield.
Square type (White) Polypropylene
Hood type (White) Polyethylene
  • ·Compact total hood form, securely blocking the user's gas inhalation.

  • Dome type

  • Square type

  • Hood type

Specification

Diameter Type Dimension Color Material Cat. No.
Φ75 mm/ 3.0 inch Basic (Ø, mm / inch) 171 / 6.7 White Polypropylene Standard
Dome (Ø x H, mm / inch) 400 x 140 / 15.7 x 5.5 White Polypropylene AAAB6221
Clear Styrene butadiene copolymer AAAB6211
Square (W x D x H, mm / inch) 494 x 390 x 245 / 19.4 x 15.4 x 9.6 White Polypropylene AAAB6241
Clear Styrene butadiene copolymer AAAB6231
Φ50 mm / 2.0 inch Dome (Ø x H, mm / inch) 294 x 180 / 11.6 x 7.1 White Polypropylene Clear Dome (Standard)
(Optional White Dome)
Clear Styrene butadiene copolymer

※ Ø75 Basic hood is provided as an integral part of the extraction arm and is used for suction of small volumes of material in confined spaces.
※ Ø50 Dome hood is provided as standard on the extraction arm.




  • Quick tilt-adjustable knob

  • 360° rotatable joint

  • Damper for airflow rate adjustment

Step 1. Extraction Arm


Type Description
Material Polypropylene Excellent chemical resistance
Anodized Aluminum 1) Lightweight, General use
Diameter 50 mm For fine work
75mm 2) Lightweight, General use
Joint 2 Joint Radius 840 ~ 1140 mm / 33.1 ~ 44.9 inch
3 Joint Radius 1480 ~ 1780 mm / 58.3 ~ 70.1 inch

1) Weak against scratching due to the nature of the material.

2) 75mm radius used in the case of mist.

Specification

Model Extraction Arm, Length (mm / inch) Weight
(kg / lbs)		 Cat. No.
A B C D Total
75mm / 3.0 inch diameter,Polypropylene 2 Joints AH-2100 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.75 / 3.9 AAAB6511
3 Joints AH-3160 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.4 / 5.3 AAAB6541
75mm / 3.0 inch diameter,Polypropylene, Ceiling mount type 2 Joints AH-2100C 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 40.9 1.75 / 3.9 AAAB6524
3 Joints AH-3160C 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.4 / 5.3 AAAB6542
75mm / 3.0 inch diameter,Anodized Aluminum 2 Joints AH-2100A 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.9 / 4.2 AAAB6523
3 Joints AH-3160A 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.6 / 5.7 AAAB6533
75mm / 3.0 inch diameter,Anodized Aluminum Ceiling mount type 2 Joints AH75-2100AC 250 / 9.8 N/A 530 / 20.9 260 / 10.2 1040 / 40.9 1.9 / 4.2 AAAB6526
3 Joints AH75-3160AC 250 / 9.8 640 / 25.2 530 / 20.9 260 / 10.2 1680 / 66.1 2.6 / 5.7 AAAAB6537
50mm / 2.0 inch diameter,Polypropylene 2 Joints AH5-2110 250 / 9.8 N/A 640 / 25.2 250 / 9.8 1140 / 44.8 1.0 / 2.2 AAAB6554
3 Joints AH5-3160 250 / 9.8 9.8 640 / 25.2 540 / 21.3 250 / 9.8 1680 / 66.1 1.4 / 3.1 AAAB6563
50mm / 2.0 inch diameter,Polypropylene,Ceiling mount type 2 Joints AH5-2110C 250 / 9.8 N/A 640 / 25.2 250 / 9.8 1140 / 44.8 1.0 / 2.2 AAAB6555
3 Joints AH5-3160C 250 / 9.8 640 / 25.2 540 / 21.3 250 / 9.8 1680 / 66.1 1.4 / 3.1 AAAB6566

Step 2. Bracket & Column

  • Column of suitable height is selected based on the ceiling height.
  • Excellent durability due to powder coating.



Specification

Model Dimension (W x D x H, mm / inch) Suitable for (mm/inch) Cat. No.
Ceiling Bracket 260 x 260 x 2 / 10.2 x 10.2 x 0.08 75 / 3.0 AAAB6508
Ceiling Column 100 x 100 x 250 / 3.9 x 3.9 x 9.8 75 / 3.0, 50 / 2.0 AAAB6512
100 x 100 x 500 / 3.9 x 3.9 x 19.7 AAAB6513
100 x 100 x 750 / 3.9 x 3.9 x 29.5 AAAB6514
100 x 100 x 1000 / 3.9 x 3.9 x 39.4 AAAB6515
100 x 100 x 1250 / 3.9 x 3.9 x 49.2 AAAB6516
100 x 100 x 1500 / 3.9 x 3.9 x 59.1 AAAB6517
Wall Bracket 158 x 259 x 82 / 6.2 x 10.2 x 3.2 75 / 3.0 AAAB6510

Step 3. Hood

Type Material Description
Basic type Polypropylene
  • ·When the emission range of the source is narrow.
  • ·When the source can be collected at close range.
Dome type (Clear) Styrene butadiene copolymer
  • ·When the emission range of the source is wide.
  • ·Used for capturing light gas.
Dome type (White) Polypropylene
Square type (Clear) Styrene butadiene copolymer
  • ·When heavy gas is collected, one side is supported on the table and used like a shield.
Square type (White) Polypropylene
Hood type (White) Polyethylene
  • ·Compact total hood form, securely blocking the user's gas inhalation.

  • Dome type

  • Square type

  • Hood type

Specification

Diameter Type Dimension Color Material Cat. No.
Φ75 mm/ 3.0 inch Basic (Ø, mm / inch) 171 / 6.7 White Polypropylene Standard
Dome (Ø x H, mm / inch) 400 x 140 / 15.7 x 5.5 White Polypropylene AAAB6221
Clear Styrene butadiene copolymer AAAB6211
Square (W x D x H, mm / inch) 494 x 390 x 245 / 19.4 x 15.4 x 9.6 White Polypropylene AAAB6241
Clear Styrene butadiene copolymer AAAB6231
Φ50 mm / 2.0 inch Dome (Ø x H, mm / inch) 294 x 180 / 11.6 x 7.1 White Polypropylene Clear Dome (Standard)
(Optional White Dome)
Clear Styrene butadiene copolymer

※ Ø75 Basic hood is provided as an integral part of the extraction arm and is used for suction of small volumes of material in confined spaces.
※ Ø50 Dome hood is provided as standard on the extraction arm.
