Baths & Circulators

Cold Trap Bath

Effective capture of moisture or condensate. Also useful as quick cooling baths.

Model Name : CTB-10


BROCHUREURL COPYInquiry Form

Performance

  • Temperature control down to ambient to -40℃.
  • Built-in dissolving system to easily remove ice or solid matter stuck on the bath.

Convenience

  • LED temperature display.
  • Easy installation and maintenance of glass traps. (two glass traps provided)
  • Quick-release front grill for easy cleaning of the condenser.
  • Compact size and silent operation.
  • Durable stainless steel bath.
  • Transparent acrylic lids on top of the glass trap to check condensate level in the trap.

Safety

  • Complete safety protection system with warning alarms.
    - Over-temperature, over-current protection.

Model CTB-10

Temperature range (℃ / ℉)

Down to -40 / -40

Material

Bath external

Stainless steel, 1.2t, Double painted & baked

Bath up desk

Stainless steel, 1.5t

Insulation

Polyurethane foam (30mm)

Refrigerator

1/2 HP, R-404A (LBP)

Dimension

Volume (L / cu ft)

4.8 / 0.17

Bath (Ø×H, mm / inch)

210×204 / 8.3×8

Glass trap (Ø×H, mm / inch)

600×262 / 2.4×103

Exterior (W×D×H) (mm / inch)

360×465×555 / 14.1×18.3×21.9

Net weight (kg / lbs)

46 / 101.4

Electrical requirements (230V, 60Hz)

 4.5 A

Cat. No.

 AAH62015K

Electrical requirements (230V, 50Hz)

 4.5 A

Cat. No.

 AAH62015K




Cat. No. Description

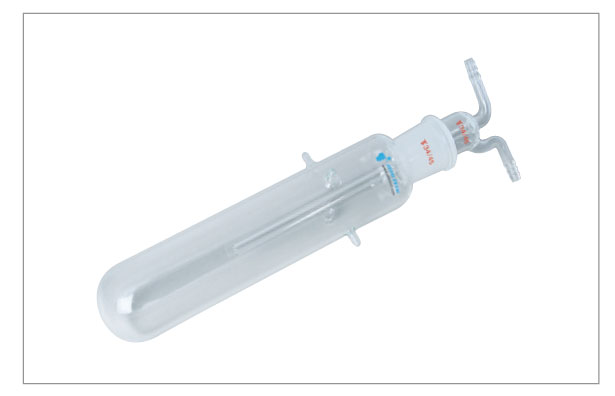

00FCA0001110 Glass trap (1ea)
