Fume Hoods

Molded Fume Hood, Small type (for observation)

Cost-effective, fully portable alternative to metal hoods.

Model Name : POH-720

BROCHURE URL COPY Inquiry Form

Structural & Functional Features

Wide transparent rear viewing window allows experiments to be clearly observed from behind, making it ideal for educational environments.
Compact size enables easy relocation and flexible installation.
Bottom plate is provided as standard, creating a flat and stable work surface.
One-piece molded construction minimizes potential leakage.
Polyethylene (PE) construction provides excellent durability and chemical resistance, ensuring safe handling of strong acids and corrosive chemicals.
Plastic bolts are used throughout the assembly to eliminate corrosion concerns.

Convenience Features

Can be safely operated in classrooms without a fixed exhaust system when used with the optional fume extraction module (EM-33).
Supports both ducted and ductless configurations depending on the installation environment.
Ideal for educational, laboratory, and training applications requiring safe and flexible installation.

Model		POH-720
Material	Body	Polyethylene
	Window	Polycarbonate
	Observation window	O
Dimension	Exterior (WxDxH,mm/inch)	720 x 472 x 535 / 28.3 x 18.6 x 21.1
	Front opening (W x D, mm / inch)	560x 320 /22.0 x 12.6
	Ducthole (O.D.,mm/inch)	150 / 6
	Netweight (kg/ lbs)	9.7 / 21.4
Cat. No.		AAAB5021

※Above specifications can be changed withoutprior notice.

In case of using bench top fume hood with extraction arm hood (MAH or AH), at least one bracket is required to order.

Cat. No.	Description	Dimension (WxDxH, mm / inch)
AAAB6411	Bracket for bench top fume hood	178x178x2 / 7x7x0.1

Extraction module

Cat. No.	Description
AAAF1536	EM-33, Extraction module (pre filter built in) (230V, 60Hz)
AAAF15363	EM-33, Plinth-PMH/POH

※ About the Optional Fume Extraction Module (EM-33)

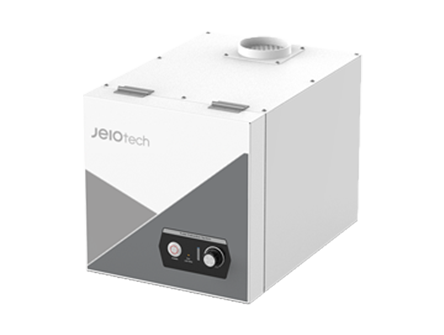

EM-33

The EM-33 is an optional fume extraction module designed to support ductless operation by filtering hazardous fumes generated inside the hood. It can also be connected to an external exhaust system if required.

Model	EM-33
Description	This device is installed on top of a storage cabinet and is designed for ductless operation without requiring a fixed external exhaust system. It effectively filters internal hazardous substances while offering the flexibility to convert to an external exhaust if needed.
Features	High durability and a safe design for chemical handling due to the use of a BLDC motor. Up to 2 filters can be installed simultaneously (Select from 4 types of carbon filters and HEPA filters). User-friendly design allowing easy filter replacement by opening the front cover. Can be converted to an external exhaust system through the exhaust outlet (100 Φ) at the top of the unit. LED indicator alerts in the event of a fan failure.
Dimensions (W x D x H, mm)	342 x 505 x 362
Net Weight (kg)	18.5
Fan	BLDC Motor, 69 W
Air Flow Rate (m3/min, CFM)¹⁾	8.13, 287
Certification	CE
Options	Plinth²⁾, Filter, Gas Detector

1) Max. airflow (Free air)
2) A dedicated plinth (or base) may be required depending on the installation environment or the specific chemical safety cabinet.
