Fume Hoods

PCR Workstations

Specially designed to minimize the sample contamination during PCR

Model Name : PW-01/11/21




Performance

  • ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
    (average life span of HEPA filter: 3 years – it depends on the test room conditions)
  • High-quality polyester fiber pre-filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
  • Effective sterilization using a long-life 254 nm UV lamp. (average life span of UV lamp: 8,000 hours)
  • Built in anti-glare fluorescent lamp minimizes shadows and relieves eye strain.

Convenience

  • User-friendly microprocessor-based control panel.
  • Large capacity blower and easy blower speed adjustment by the control panel.
  • Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants. (wait off, max. 30min.)
  • Comfortable front access to cartridge type of filters for easy replacement.

Safety

  • Interlocking safety door system shuts off UV light automatically when opening the door.
  • UV-blocking door and side panels made of transparent polycarbonate material provides clear inside view.
  • UV over-exposure alarm and over-current protection.

Model PW-01 PW-11 PW-21

Air

Air flow type

Vertical

Laminar airflow velocity (m / s / fpm)

0.4 / 78.7

Main filter

HEPA (99.99% at 0.3 ㎛)

Pre-filter

Polyester Fibers

Illumination

UV lamp (W)

15

20

30

Fluorescent lamp (254nm, W)

15

20

30

Fluorescent lamp Intensity (Lux)

More than 1000

Material

Window (Front, Sides/ Rear)

Polycarbonate (Clear)

U.V. protection

99.9%

Working table

Polycarbonate (Clear)

Dimension(W×D×H)

Interior (mm / inch)

700×585×602 / 27.5×23×23.7

880×585×602 / 34.6×23×23.7

1180×585×602 / 46.5×23×23.7

Exterior (mm / inch)

720×605×964 / 28×24×38

900×605×964 / 35.4×24×38

1200×605×964 / 47.2×24×38

Net weight (Body) (kg / lbs)

56.2 / 123.9

64.2 / 141.5

77.8 / 171.5

Noise level (dB)

Less than 60

Electrical  requirements (230V, 50/60Hz)

1.3A 1.4A 1.5A
Cat. No. AAHB3002K AAHB3012K AAHB3022K

Electrical  requirements (120V, 60Hz)

2.2A 2.7A 2.9A
Cat. No. AAHB3003U AAHB3013U AAHB3023U


General UV dose and time required

Pathogen Average UV dose
required
(㎼ . s/㎠)
Average UV time required (㎼/ ㎠ /sec.)
PW-01 UVC-01 PW-11 UVC-11 PW-21 UVC-21
165 300±10% 185 350±10% 330 300±20%
S. enteritidis 4,000 25 15 22 10 13 9
B. megatherium sp. (spores) 2,730 17 11 15 7 9 6
B. subtilis 7,100 43 27 39 18 22 16
Eberthella typhosa 2,140 13 8 12 6 7 5
Escherichia coli (E. coli) 3,000 19 12 17 8 10 7
Micrococcus candidus 6,050 37 23 33 16 19 13
Proteus vulgaris 2,640 16 10 15 7 8 6
Pseudomonas aeruginosa 5,500 34 21 30 14 17 12
Pseudomonas aeruginosa 3,500 22 13 19 9 11 8
S. typhimurium 8,000 49 30 44 21 25 18
Shigella paradysenteriae 1,680 101 7 10 4 6 4
Spirillum rubrum 4,400 27 17 24 11 14 10
Staphylococcus albus 1,840 12 7 10 6 4

※ Permissible environmental conditions: temperature (20 to 25℃) and relative humidity (up to 60%).
※ Above listed applications are for general purpose use.

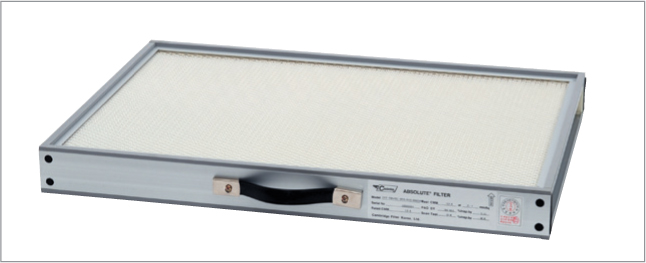

  • HEPA filter (for PW)

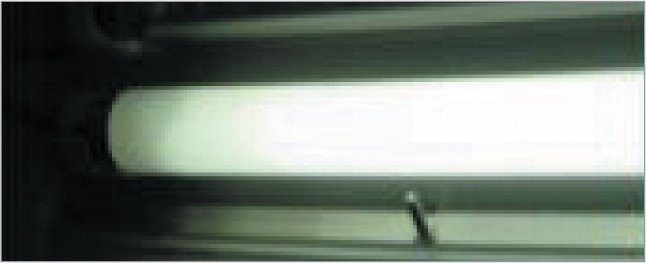

  • Fluorescent lamp

  • UV lamp

for PCR workstations

Cat. No. Description PW-01 PW-11 PW-21
AAAB3511 Pre filter - -
AAAB3512
AAAB3513
EDA9219 HEPA filter    -
EDA9220 - -
EDA9221 - -
CHE4436 Fluorescent lamp - -
CHE4410 - -
CHE4409 - -
CHE4431 UV lamp - -
CHE4427 - -
CHE4423 - -
