Baths & Circulators

Heating Bath (Visible)

Ultra precise temperature control with excellent visibility.

Model Name : VB-25G/40G

BROCHURE URL COPY Inquiry Form

Performance

Temperature range from ambient +5°Cto 150°C.
Microprocessor PID control / Automatic tuning / Calibration.
Optimal temperature equilibrium achieved by a vane type stirrer with strong circulation power.

Convenience

Easy readout digital LED displays.
(0.01°Cresolution at 0 to 99.9°C/ 0.1°C resolution at 100 to 150°C)
Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
Convenient memory function of up to three frequently set temperature.
Clear visibility provided by double tempered safety glass windows in front and rear sides.
(for operation from 10°C, use an optional cooling circulator)
Ø 51mm holes (for glass capillary viscometer tubes) and a Ø12.6 mm hole. (for a thermometer)
RS-232 interface for external control and data collection.
Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current.

Ideal for application requiring high visibility
Easy holding of U-shaped viscometer glass tubes (optional)

Model		VB-25G		VB-40G
Bath volume (L / cu ft)		25 / 0.9		40 / 1.4
Temperature	Working temperature range (℃ / ℉)	Amb. +5 to 150 / Amb. +9 to 302
	Temperature stability at 50℃ (±℃ / ℉)	0.1 / 0.18		0.1 / 0.18
	Heat up time to 70℃ (min) (±℃ / ℉)	35		55
Dimension	Bath opening / depth (W×L, D) (mm / inch)	145×265, 330 / 5.7×10.4, 13		295×265, 330 / 11.6×10.4, 13
	Cover lids / Hole for thermometer (mm)	5ea / Ø51, 1ea / Ø12.6		8ea / Ø51, 1ea / Ø12.6
	Exterior (W×L×H) (mm / inch)	492×374×536 / 19.4×14.7×21.1		642×374×536 / 25.3×14.7×21.1
	Net weight (kg / lbs)	28 / 61.7		37 / 81.6
Electrical requirements (230V)		60Hz, 13A	50Hz, 13A	60Hz, 13A	50Hz, 13A
Cat. No.		AAH43302K	AAH43302K	AAH43402K	AAH43402K

※ The lowest controllable temperature depends on variations in room and sample temperatures. Please contact technical support for consultation before purchasing.

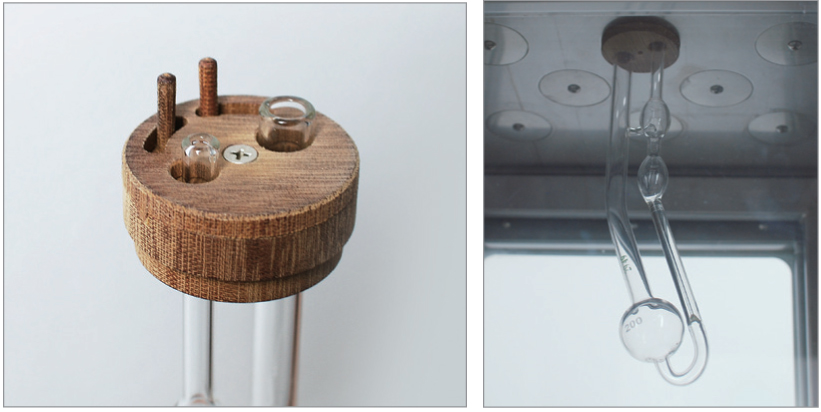

Viscometer tube holders

Specially designed to hold a two-opening viscometer glass tube and made of Bakelite, renowned for its high thermal endurance.

Cat. No.	Suitable for
AAA43501	VB-25G (need max. 5 holders)
AAA43501	VB-40G (need max. 8 holders)

Cooling circulators

The temperature range of viscometer heating baths can be lowered up to +10°C (+50°F) when used with an optional cooling circulator.

Cat. No.	Description	Suitable for
AAH57051K	RW3-1025 (230V, 60Hz)	VB-25G (230V, 60Hz)
AAH57651K	RW3-1025P (230V, 60Hz)	VB-25G (230V, 60Hz)
AAH57052K	RW3-1025 (230V, 50Hz)	VB-25G (230V, 50Hz)
AAH57652K	RW3-1025P (230V, 50Hz)	VB-25G (230V, 50Hz)
AAH57061K	RW3-2025 (230V, 60Hz)	VB-40G (230V, 60Hz)
AAH57661K	RW3-2025P (230V, 60Hz)	VB-40G (230V, 60Hz)
AAH57062K	RW3-2025 (230V, 50Hz)	VB-40G (230V, 50Hz)
AAH57662K	RW3-2025P (230V, 50Hz)	VB-40G (230V, 50Hz)

* More information on the cooling circulators.

LC GreenBox

Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.

Cat. No.	Description
AAHQ1011K	JGW-4
