Industrial Test Equipment

Clean Temp. & Humid. Chamber (TH-CR)

Clean environmental test chamber.

Specially designed for processes requiring clean and controlled environmental test conditions. (ISO class 5 air cleanliness as per ISO 14644-1)
# Industrial Test Equipments

Model Name : TH-CR-270

BROCHURE URL COPY Inquiry Form

Control range

Temperature range from -35 to 100°C Humidity range from 30 to 90% RH

Performance

Microprocessor PID control / Temperature calibration / Automatic tuning.
Exhaust duct is located at the upper right side of the unit to avoid influence other devices.
Built-in differential pressure gauge for easy observation of HEPA filter condition.

Convenience

Silicone-free construction for clean environment.
Corrosion resistance stainless steel chamber.
Maintenance of water supply are easily performed with a front water tank.
- Water level check indicated by water level bar in the tank.
Water supply during operation is also available for long term test purposes.
Direct water system provides user great convenience when performing long-term tests. (optional)
Clear observation of samples.
- Tempered glass window with wire heater and lighting provides a clear view of samples in the chamber, beneficial for during testing.
- Inner glass door with entry ports for handling samples without affecting inner chamber temperature and humidity. (optional)
Cable port for introduction of external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit.
- Additional 50mm or 80mm diameter cable ports, custom ordered. (optional)
Casters for easy mobility during installation or relocation.

User friendly LCD controller.
-5.7 inch colorful interactive touch type LCD controller.
- Set value and present value are clearly visible together on display.
- Operating progress visible in graph mode allow for direct data interpretation.
- Temperature and other operating parameters recorded with use of selectable recorder. (optional)
- Sufficient programmable control support.
- Programming operation.

Description	TH-ICH
Programmable pattern capacity	120
pattern repeat time	999
Max. Segments per a pattern	100
Available max. segments*	1200
Programmable process time per a segment	0 to 99 hr. 59 min.

* Even though the max. segments per a pattern are 100, available total segments are up to 1200 not 12000, so you need to arrange the number of segment and patterns properly.

Computer interface.
- RS-485 communication port enables connection of up to maximum 9 units. Simultaneous monitoring and operating of multiple units is an available feature. (optional)
- Program patterns are simple to set with the use of our software.
- Storage of program information, backup of value settings, recovery, temperature, humidity values.
- RS-232 communication port comes standard

Safety Features

Automatic shut off after overheat alarm.
Low and empty water level alarm.
Power supply leakage breaker.
Over current protection.
Open door alarm.

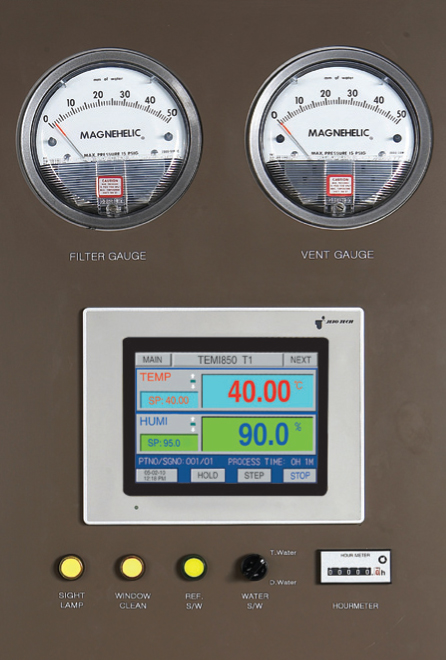

Control panel
Air-filter

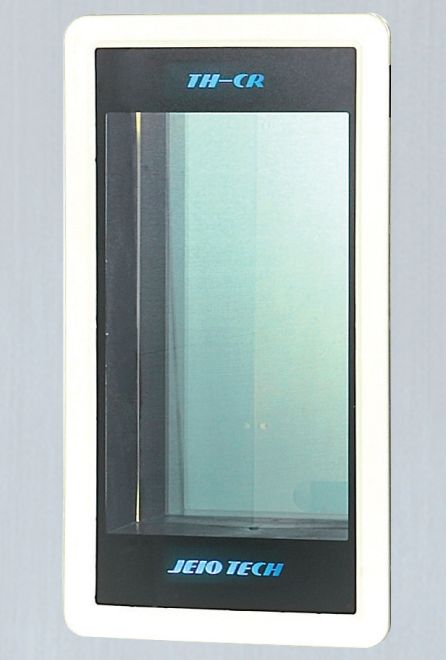

Viewing window

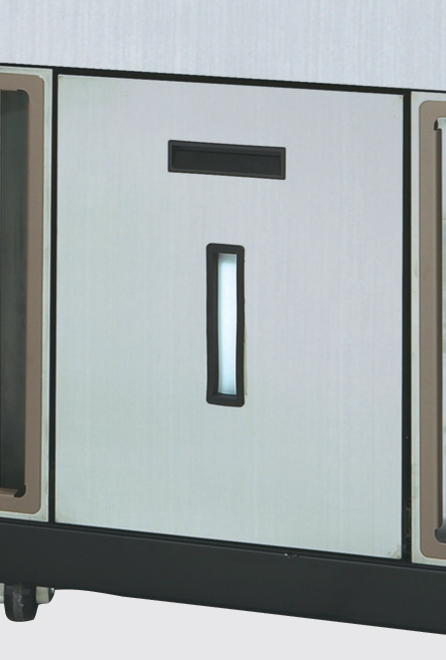

Water level indicator

Model		TH-CR-270
Chamber volume (L / cu ft)		270 / 9.5
Controller		Programmable, Touch screen type controller (5.7” color monitor) Local controller (fixed - command control)
Temperature	Range (℃ / ℉)	-35 to 100 / -31 to 212 without humidity 20 to 85 / 104 to 185 with humidity
	Fluctuation ¹⁾ (±℃ / ℉) at 40℃ / 60%RH	0.5 / 0.9
	Variation ¹⁾ (±℃ / ℉) at 40℃ / 60%RH	0.5 / 0.9
Time	Heating - without humidity (min.)	60 from -35℃ to 120℃ (-31℉ to 248℉)
Time	Cooling - without humidity (min.)	65 from 20℃ to -35℃ (68℉ to -31℉)

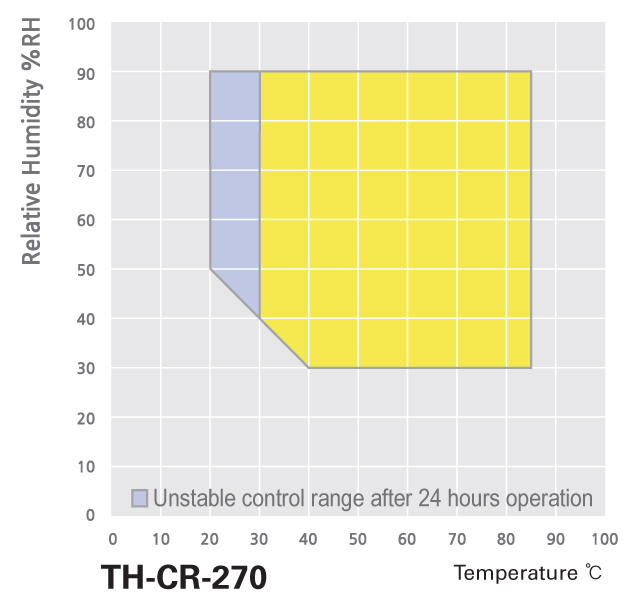

Humidity	Range (%RH)	30 to 90 ※ See feature page for more detailed humidity range check.
	Fluctuation ¹⁾ (±%RH) at 60%RH / 40℃	3
	Variation ¹⁾ (±%RH) at 60%RH / 40℃	3
Cleanliness		Class 100 (ISO 14644-1)
Refrigeration	System	Mechanical single stage refrigerator system (air-cooled condenser)
Refrigeration	Refrigerant	R-404A
Water supply	Capacity	15L (0.53cu ft) - Cartridge type
Water supply	Water quality	pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below
No. of wire shelves (standard / max.)		2 / 10
Distance of between shelves (mm / inch)		40 /1.6
Max. load per shelf (kg / lbs)		25 / 55.1
Permitted total load (kg / lbs)		65 / 143.3
Dimension (W×D×H)	Interior (mm / inch)	600×700×648 / 23.6×27.6×25.4
	Exterior (mm / inch)	1180×1120×1935 / 46.5×44.1×76.2
	Viewing windows (mm / inch)	200×330 / 7.9×13
	Net weight (kg / lbs)	400±10 / 881.8±22
Cable port		Basically one hole provided / Ø 50mm (2”) Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface port		Basically RS-232C [RS-485-optional]
Electrical requirements (230V, 1ph)		60Hz / 29A	50Hz / 29A
Cat. No.		AAH83011K	AAH83012K
Electrical requirements (380V, 3ph)		50Hz / 9.6A
Cat. No.		AAH83018K

1) Technical data according to DIN 12880, IEC 60068.

※ Permissible environmental conditions: temperature (18 to 30℃) and relative humidity (up to 85%).
※ All specifications are under ambient temperature 20℃ (68℉), No load.
※ Upon request, other sizes of chambers are available. Please contact with us.
